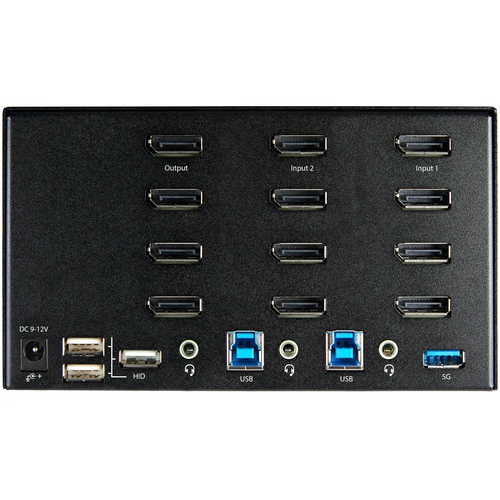

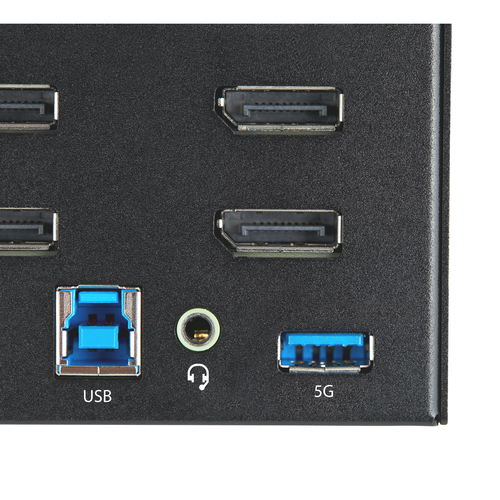

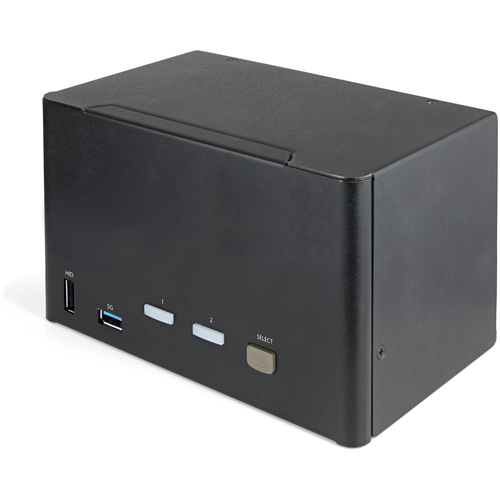

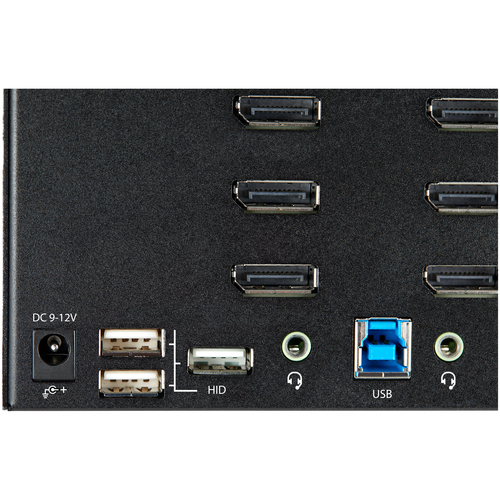

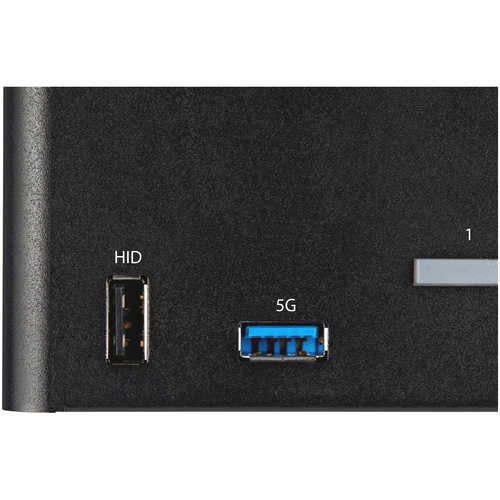

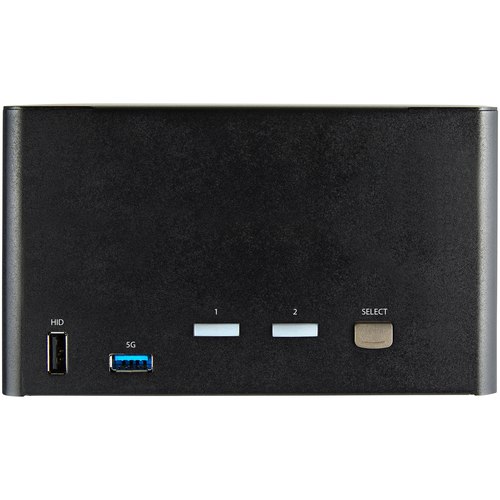

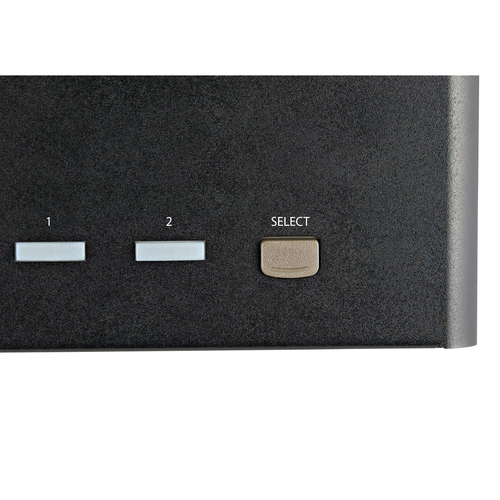

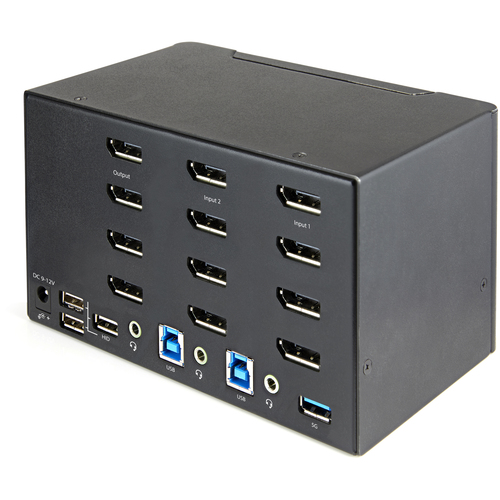

StarTech.com SV231QDPU34K KVM switch
StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop 4K DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA
- Brand
- STARTECH
- Product code
- SV231QDPU34K
- SKU
- D6MJHJQ3GP6G1
- EAN/GTIN
- 0065030881777
- IMPROVE EFFICIENCY: Switch between two computers with four monitors using USB and DisplayPort video from a single keyboard, monitor, and mouse using keyboard hotkeys or push buttons to switch between active computers
- QUADRUPLE 4K 60Hz UHD: DisplayPort quad screen KVM switch supports up to 4K at 60Hz on four monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
- TECH SPECS: 2 Port KVM / Quad Display / DisplayPort 1.2 / 3840 x 2160 60 Hz / HDCP 2.2 / HDR Support / 2 Port USB 3.0 Hub / 4x USB HID / Hotkey & Push Button / OS Independent / Stereo Analog + Digital Audio / DP + USB Console
- USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & easily accessible front-mounted integrated USB 3.0 port 5Gbps (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
- THE STARTECH.COM ADVANTAGE: This KVM is TAA compliant, and StarTech.com offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America
€596.43
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
KVM with USB | Quad Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog AudioThe StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 12 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Daisy chain | No |
| Chipset | Genesys Logic - GL3523 |
| Audio channels | 5.1 |
| Number of displays supported | 4 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Certification | CE, FCC, RoHS |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 438 mm |
| Height | 43 mm |
| Weight | 959 g |
| Packaging data | |
| Package width | 185 mm |
| Package depth | 250 mm |
| Package height | 100 mm |
| Packaging content | |
| Manual | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
| IP control | No |
