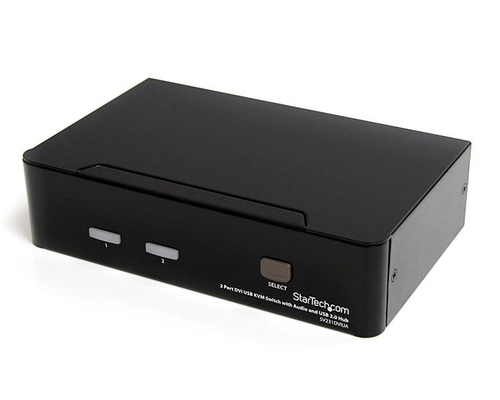

StarTech.com 2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub
- Brand
- STARTECH
- Product code
- SV231DVIUA
- SKU
- 509TC4ADYELUD
- EAN/GTIN
- 0065030842075
- Built-in USB 2.0 hub_x000D_

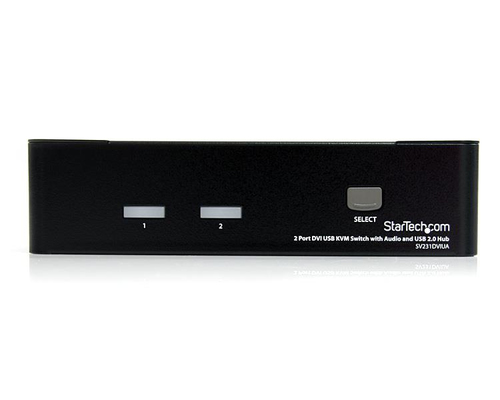

- Hot-key and front-panel push buttons for easy computer selection_x000D_
- USB keyboard and mouse console connections_x000D_
- Supports resolutions up to 1920x1200_x000D_
- No software or drivers required_x000D_
- Stereo audio and microphone support_x000D_
Product Info
Share keyboard, mouse, speakers and a DVI display between two multimedia computers
The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.
Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.
The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.
This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- High resolution support (1920x1200) offers crystal clear video clarity even on large displays
- Absolutely no software or drivers required, providing a completely OS independent KVM solution
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |

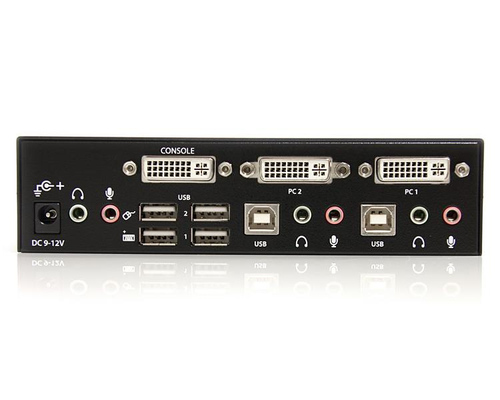

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 4 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 126397 h |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 199 mm |
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 650 g |
| Packaging data | |
| Package width | 242 mm |
| Package depth | 187 mm |
| Package height | 91 mm |
| Package weight | 1.1 kg |

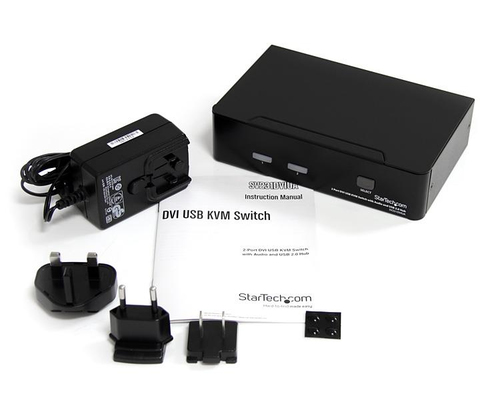

| Packaging content | |
| Manual | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 314 mm |
| Master (outer) case length | 399 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 6 pc(s) |
