StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m)
- Brand
- STARTECH
- Product code
- ST121SHD50
- SKU
- ORW3ZMRUF7IUX
- EAN/GTIN
- 0065030851404
- Power Over Cable allows a single power source to operate the Transmitter and Receiver
- Supports Cat5e or Cat6 Ethernet cabling (50m)
- No software/drivers required
- Supports HD resolutions up to 1080p (1920x1080)

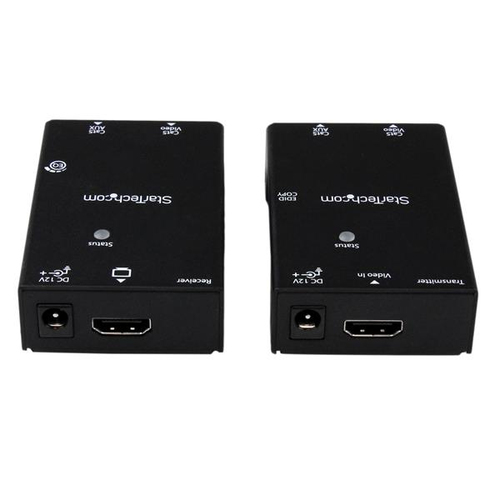

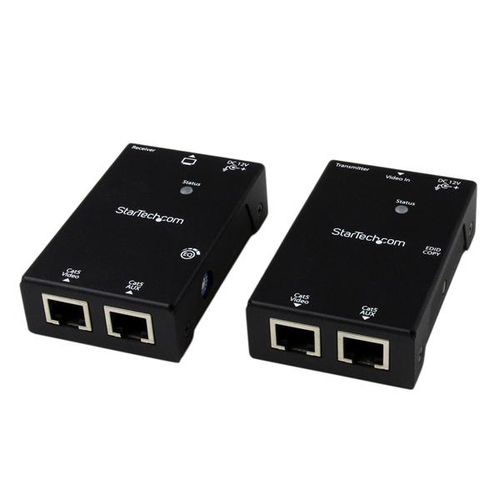

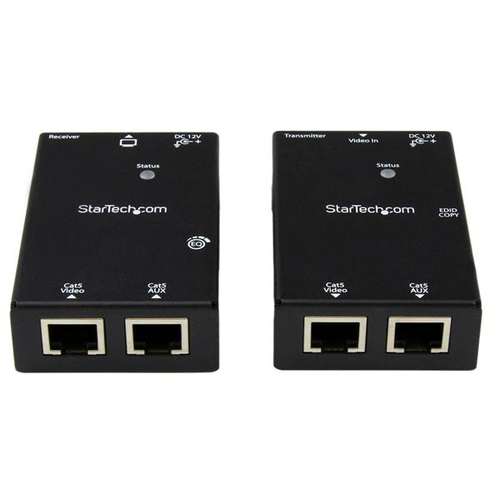

- Includes transmitter (local) and receiver (remote) units
Product Info
Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to ReceiverThe ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.The StarTech.com Advantage
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 50 m |
| LED indicators | Power |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Product colour | Black |
| Certification | CE, FCC, REACH, TAA |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |

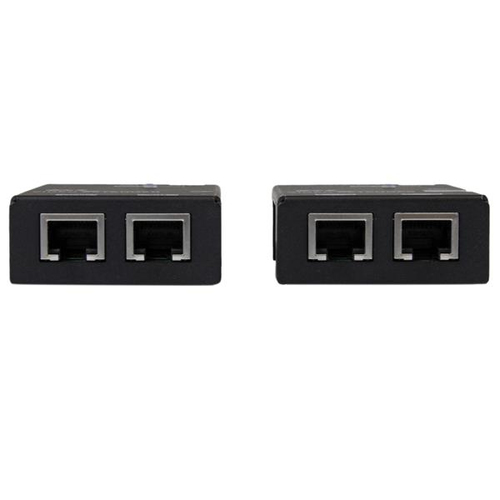

| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |

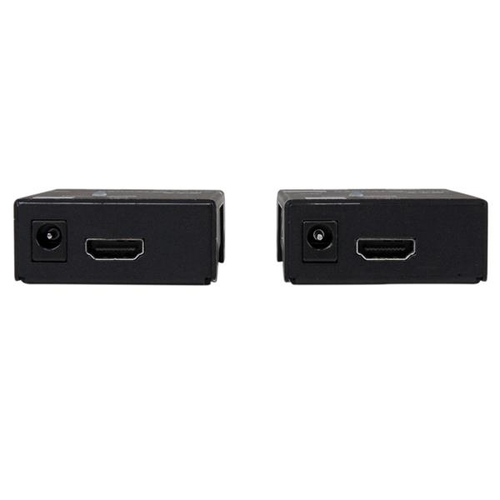

| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100-240 V |
| Operating voltage | 12 V |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 51 x 80 x 21 mm |
| Receiver weight | 157 g |
| Transmitter dimensions (WxDxH) | 51 x 80 x 21 mm |
| Transmitter weight | 157 g |
| Packaging data | |
| Package width | 157 mm |
| Package depth | 237 mm |
| Package height | 65 mm |
| Package weight | 935 g |

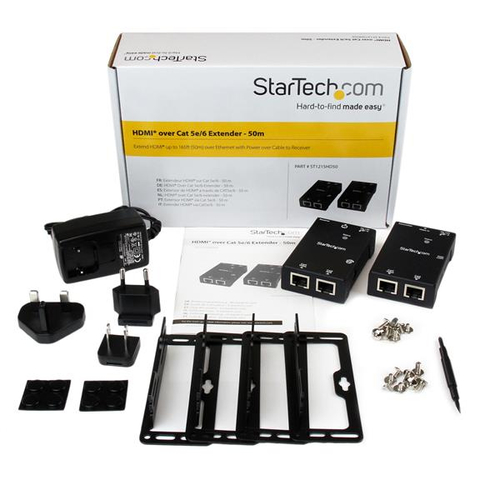

| Packaging content | |
| AC adapter included | Yes |
| Cables included | HDMI |
| Manual | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 12 pc(s) |
