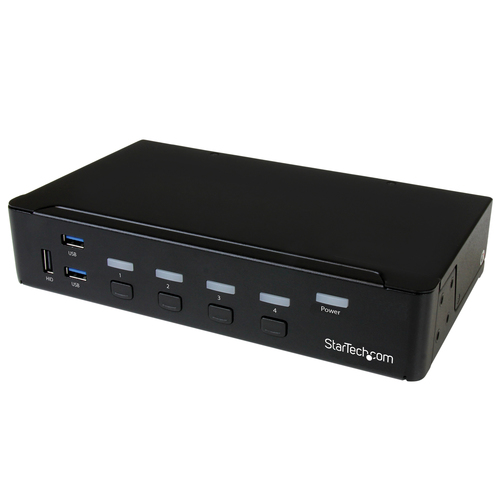

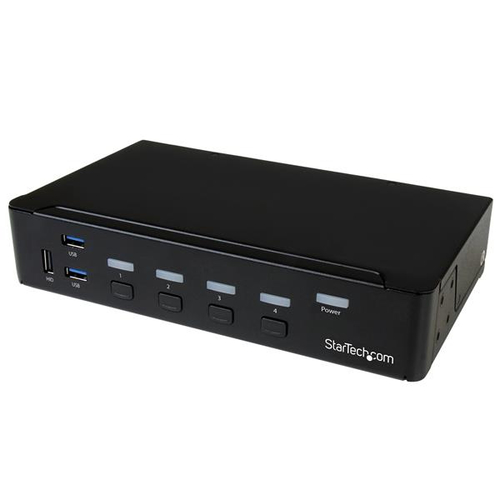

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K 30Hz
- Brand
- STARTECH
- Product code
- SV431DPU3A2
- SKU
- B5CH6IZ6AGTAR
- EAN/GTIN
- 0065030863728
- Rack mounting Black
- Number of computers controlled: 4
- Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
- 4K Ultra HD 3840 x 2160 pixels
- Hot keys
- 18 W
Product Info

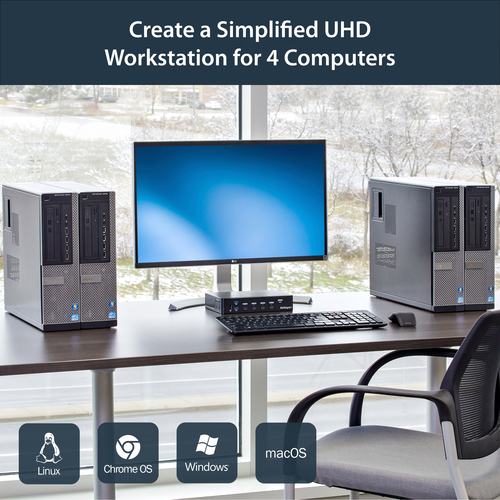

Control four DP computers using a single console with a built-in USB 3.0 hub for sharing additional peripheral devices

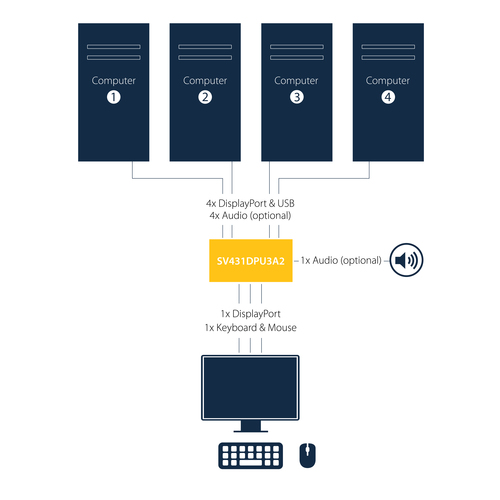

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
Astonishing picture quality
Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support

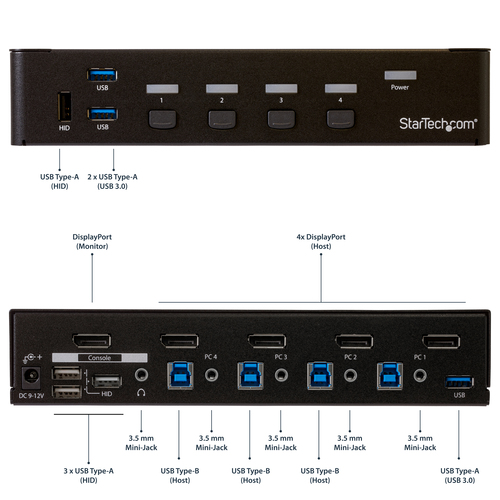

| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |

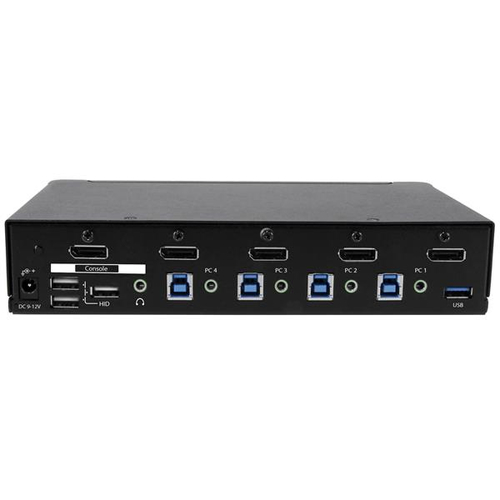

| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
| USB connector type | USB Type-A |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Maximum operating distance | 10 m |
| Audio channels | 2.0 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Link, Power |
| Hot keys | Yes |
| Certification | CE, FCC, UL, PSE |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100-240 V |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |

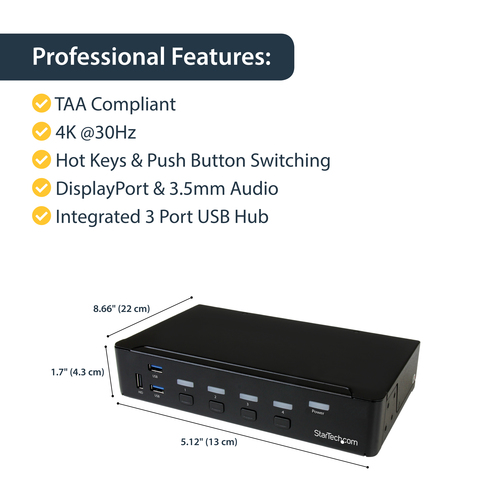

| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 43 mm |
| Weight | 1.06 kg |
| Packaging data | |
| Package width | 244 mm |
| Package depth | 297 mm |
| Package height | 85 mm |
| Package weight | 1.61 kg |

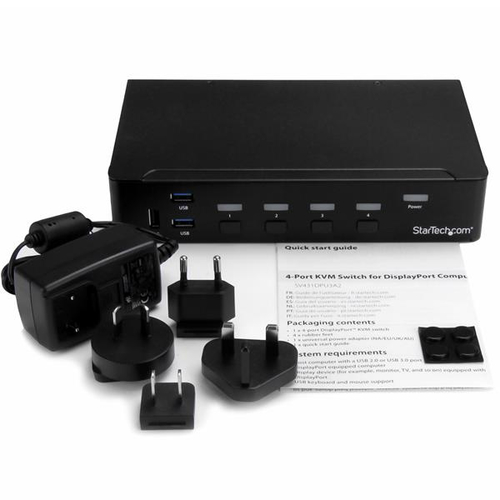

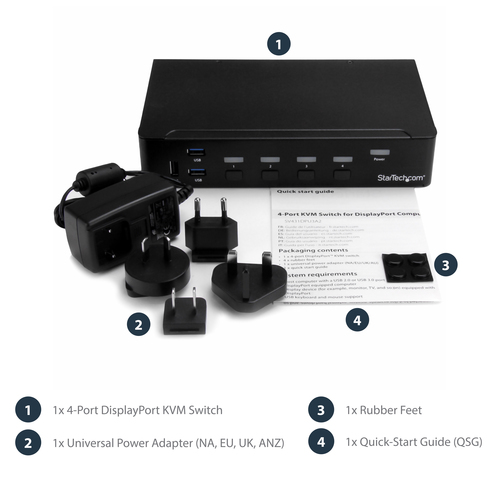

| Packaging content | |
| Quick installation guide | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Other features | |
| Audio support | Yes |
| IP control | No |
