StarTech.com USB Extender Hub, 10m USB 3.0 Extension Cable with 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, Optional 20W Power Supply Included, ESD Protection
- Brand
- STARTECH
- Product code
- U01043-USB-EXTENDER
- SKU
- FTBM8DGYKW8WT
- EAN/GTIN
- 0065030897365
- LONG-RANGE ACTIVE USB EXTENDER: 4x USB 3.0/3.2 Gen 1 (5 Gbps) Hub with built-in 32.8ft (10m) active extension cable; Power the USB extension cable via bus power or power adapter (included)
- STABLE SIGNAL: Active repeater booster chip in the 4-Port USB Extension Hub maintains signal integrity and ensures optimal performance; Power adapter (5V/4A DC, 20W) is not required in most scenarios; Power adapter enables up to 1A per port
- FLEXIBLE INSTALLATION: Active electronics allow the compact 4-port USB Hub extension cable to work via bus-power when no power outlets are available; Achieve a maximum range of 65.6ft (20m) by daisy-chaining two units
- COMPATIBILITY: The USB extender supports wake-on-USB to wake host systems using USB mouse or keyboard; Backward compatible with USB 2.0/1.1; Driverless and OS independent; The USB extender Hub adds an extra layer of safety with Level 2 ESD protection
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB Hub repeater is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Product Info

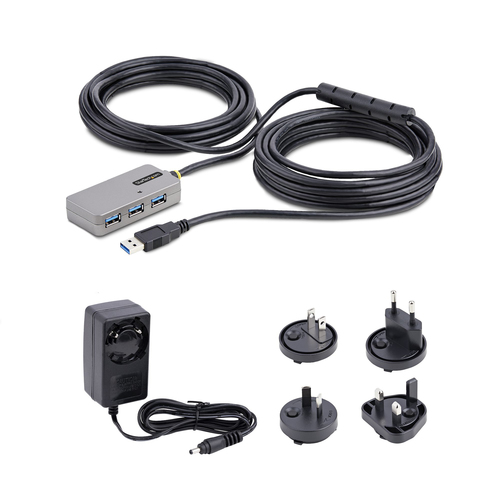

USB Extender Hub | USB 3.0 Extension Cable with 4-Port USB Hub | Bus Powered | 32.8ft Long CableThe 32.8ft USB 3.0 Extension Cable with 4-Port USB Hub and 5Gbps transfer rates enables multiport connectivity at distances that exceed standard USB 3.0 distance and power source limitations. Daisy chain up to two USB active extension cables for a maximum range of 65.6ft (20m).Power OptionsActive electronics allow the USB-A Hub to function without requiring external power, multiplying the installation possibilities and accelerating any deployment. In addition, the 5V4A DC power adapter supports USB peripherals that require additional power.Control multiple USB peripherals in remote locations (e.g., webcams, CCTV remote monitoring, remote printers, SSDs, HDDs, scales, mice, keyboards, and other devices) using this 4-port 32.8ft (10m) USB extension cable.Host and Device CompatibilityThe backward compatibility with USB 2.0 and 1.1 ensures functionality with legacy equipment. The hub/cable features USB 3.0/3.2 Gen 1 with data transfer speeds up to 5 Gbps and plug and play (PnP) setup on any operating system, enabling rapid deployment.The Level-2 ESD protection (4kV air and 4kV contact) and the cable shielding enhance USB device safety and minimize EMI.The USB Extender Hub is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ports quantity | 4 |
| Features | |
| Data transfer rate | 5000 Mbit/s |
| Product colour | Black, Silver |
| Housing material | Plastic |
| LED indicators | Yes |
| Cable jacket material | Recycled Polyvinyl chloride (rPVC) |
| Cable length | 10 m |
| Connector contacts plating | Nickel |
| Power | |
| Power supply type | DC |
| Power consumption (typical) | 20 W |
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 4 A |
| Power plug type | Type H |
| Weight & dimensions | |
| Width | 40 mm |
| Height | 18 mm |
| Weight | 100 g |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 225 mm |
| Package height | 55 mm |
| Package weight | 1 kg |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Design | |
| Cable shielding | Aluminum mylar foil |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Federal Communications Commission (FCC) |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 360 mm |
| Products per master (outer) case | 10 pc(s) |
| Other features | |
| Chipset | VIA Labs - VL817 |
