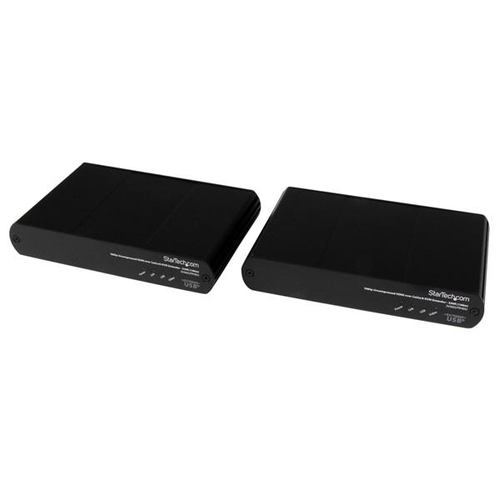

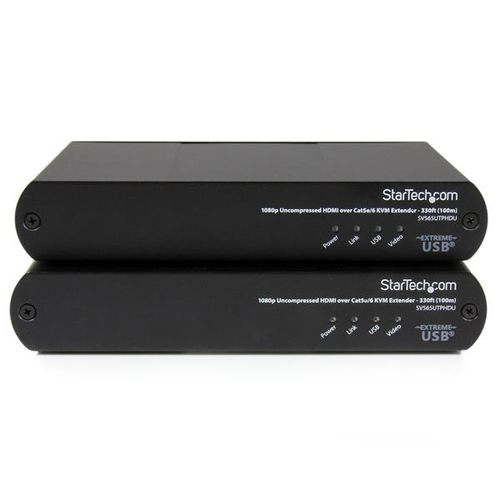

StarTech.com USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)
- Brand
- STARTECH
- Product code
- SV565UTPHDU
- SKU
- MS6K06A1SJOTC
- AV transmitter & receiver
- Wired Maximum transfer distance: 100 m
- Maximum digital resolution: 1920 x 1200 pixels
- Material: Aluminium
- Transmitter video port type: HDMI Transmitter local keyboard/mouse port type: USB
- Receiver local video port type: HDMI
- Power consumption (transmitter) (max): 15 W Power consumption (receiver) (max): 15 W
- Black
Product Info
The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.
A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.
This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Power a large HDMI display from a distance with uncompressed 1080p video
- Operate a single system or KVM switch remotely through KVM console extension
- Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Rack mounting | No |
| Maximum digital resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Material | Aluminium |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS, UL |
| Transmitter | |

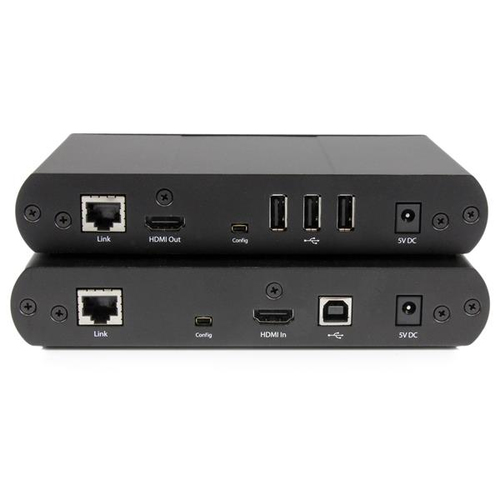

| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| Receiver | |
| Receiver local video port type | HDMI |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 5 V |
| AC adapter output current | 3 A |
| Power consumption (transmitter) (max) | 15 W |
| Power consumption (receiver) (max) | 15 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Packaging data | |
| Package width | 214 mm |
| Package depth | 375 mm |
| Package height | 103 mm |
| Package weight | 2.46 kg |
| Technical details | |
| Dimensions (WxDxH) | 112 x 175 x 30 mm |
| Weight | 847 g |

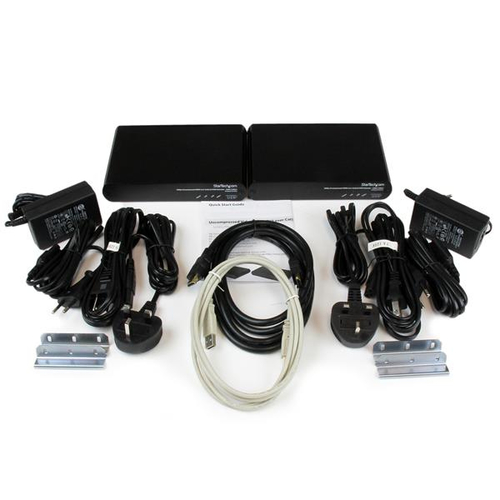

| Packaging content | |
| AC adapter included | Yes |
| Cables included | AC, HDMI, USB |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
