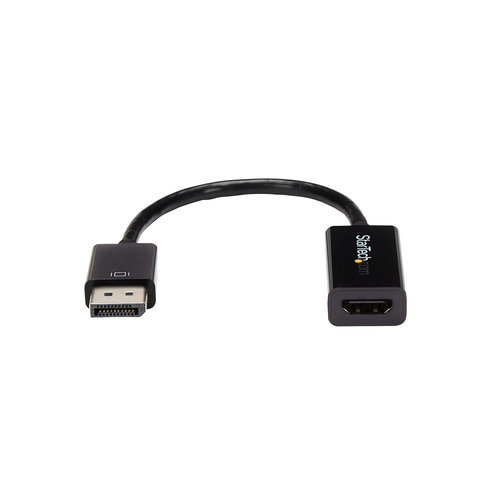

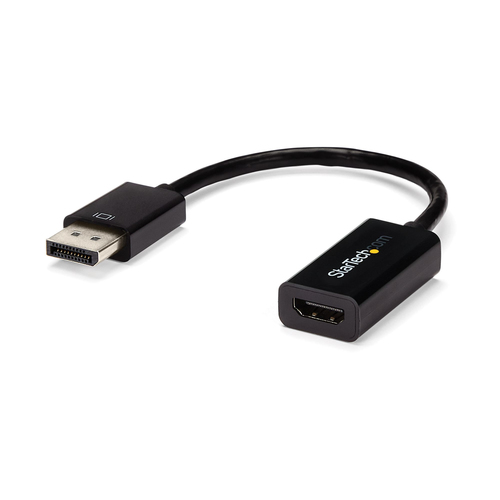

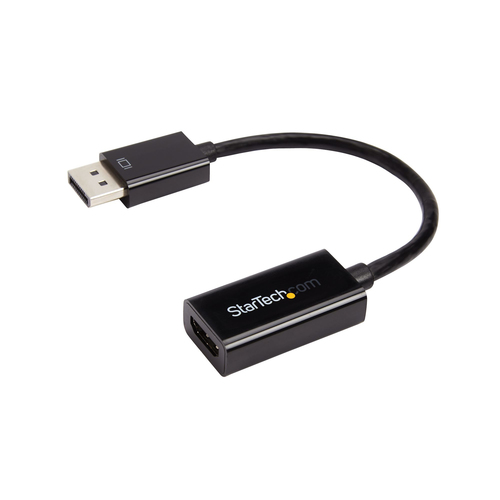

StarTech.com DisplayPort to HDMI Adapter - 4K 30Hz Active DisplayPort to HDMI Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Ultra HD DP 1.2 to HDMI 1.4 Adapter
- Brand
- STARTECH
- Product code
- DP2HD4KS
- SKU
- H2CVN74A4F2P8
- EAN/GTIN
- 0065030857352
- PERFORMANCE: DisplayPort 1.2 to HDMI 1.4 adapter directly connects your DP host to a HDMI display
- Supports Ultra HD (UHD) 4K 30Hz (3840x2160) & 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4, DPCP
- 5.9" (15cm) attached cable
- HOST COMPATIBILITY: Active DisplayPort to HDMI adapter supports DP/DP++ source connector & DP sources without DP++ compatibility incl workstations, desktops (AMD Radeon Pro/Nvidia RTX/Quadro), laptops, small form factor computers & docking stations

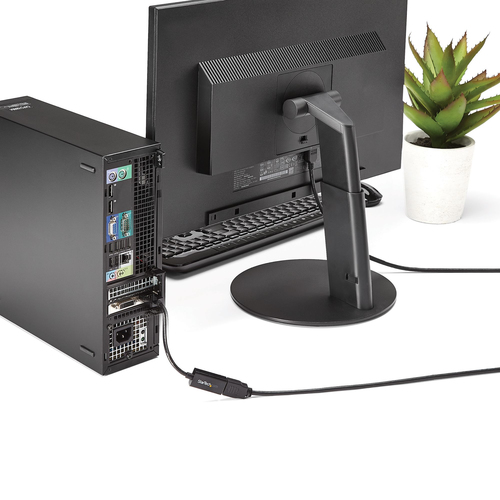

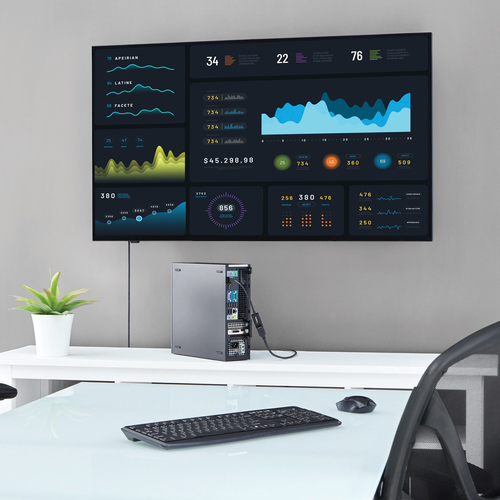

- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect an HDMI monitor, TV or projector, or add a second display to your workstation; Compact, small form factor design makes it easy to carry around between home office and office
- STABLE CONNECTION: DP to HDMI adapter dongle features a non-latching DP connector that is easy to disconnect from a hard to reach source
Product Info
Connect an HDMI monitor to a DisplayPort video source
The DP2HD4KS DisplayPort to HDMI adapter enables you to connect a DisplayPort-equipped desktop or laptop computer, such as the HP EliteBook 8570p / 8470p, to an HDMI display. This adapter is compatible with DisplayPort 1.2 & HDMI 4K @ 30 Hz and as a result can support video resolutions up to Ultra HD (4K) as well as the accompanying digital audio up to 7.1 channel surround sound.
With support for resolutions up to Ultra HD (4K) the DP to HDMI adapter ensures you can convert DisplayPort to HDMI while maintaining an astonishing picture quality four times the resolution of high-definition 1080p. The adapter is also backward compatible with previous DisplayPort revisions 1.0/1.1 with support for resolutions up to 1080p.
For a hassle-free setup the DisplayPort to HDMI adapter allows for plug-and-play installation without any additional software or drivers. Plus, with a small footprint and lightweight design, the adapter maximizes portability.
To ensure compatibility with any DisplayPort output the DP adapter offers an active conversion. Active video conversion is required to maintain 4K resolutions when converting DisplayPort to HDMI. An active DP adapter is also ideal for outputting 1080p video resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
The DP2HD4KS is backed by a 3-year StarTech.com warranty, and lifetime technical support.
The StarTech.com Advantage
- Prepare for the next generation of displays, with support for Ultra HD 4K video
- Maximize compatibility, with support for DisplayPort revisions 1.2/1.1/1.0
- Easy to carry as a laptop accessory, with a compact design and no external power adapter needed
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.15 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Maximum resolution | 4096 x 2048 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Maximum refresh rate | 30 Hz |
| Product colour | Black |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 22 g |
| Width | 21 mm |
| Depth | 64 mm |
| Height | 11 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 13 mm |
| Package weight | 27 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 320 pc(s) |
