StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface
- Brand
- STARTECH
- Product code
- PR42GI-NETWORK-CARD
- SKU
- 3VP39JU7C58G2
- EAN/GTIN
- 0065030898157
- 2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps quad-port network card with Intel I225-V chip; Multi-gigabit; Leverage existing Cat5e/Cat6 (or better); NBASE-T compatible (802.3bz); PCI Express 2.0 x4
- IT MANAGEABILITY: Intel vPro for remote management and troubleshooting; PXE boot enabled to deployment speeds/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management

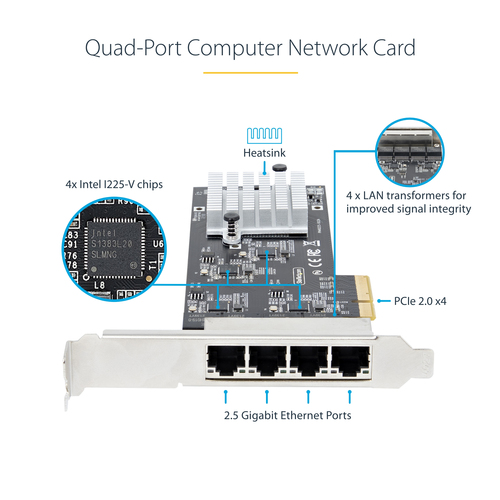

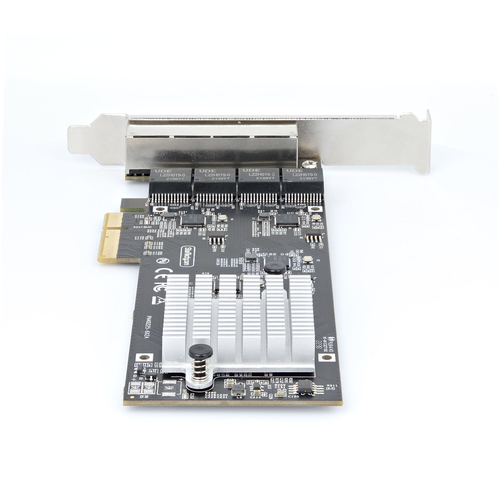

- BUILD QUALITY: LAN card features: built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, LAN transformers maintain signal quality and reduced EMI for reliable communication

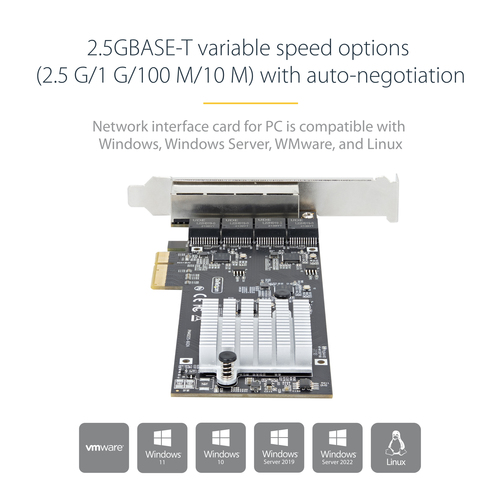

- COMPATIBILITY: 2.5GBASE-T variable speed options (2.5 G/1 G/100 M/10 M) with auto-negotiation; Network interface card for PC is compatible with Windows, Windows Server, WMware, and Linux; Low profile bracket included for hardware compatibility
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2.5 Gbps Network Card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Product Info

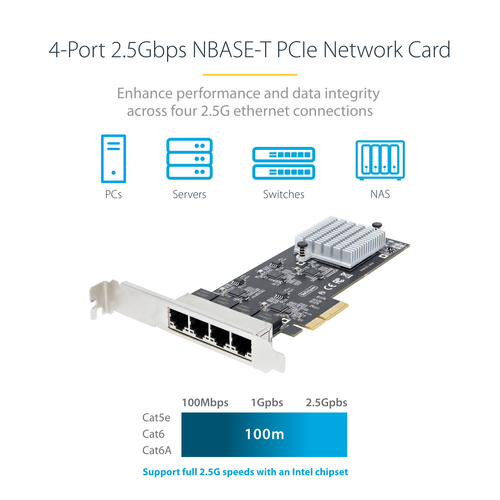

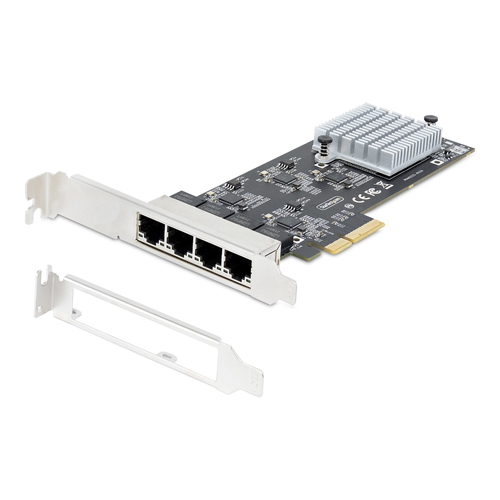

Quad-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T supportThis quad-port 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity across four 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.Increased Network SpeedThe PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.Enhance Existing HardwareThe network interface card connects via an available x4 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI version | 2.0 |
| Network | |
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2000,2500 Mbit/s |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-T, 2500BASE-T |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
| Design | |
| Component for | PC/Server |
| Product colour | Black |
| Internal | Yes |
| Chipset | Intel I225-V |
| LED indicators | Activity, Link |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |

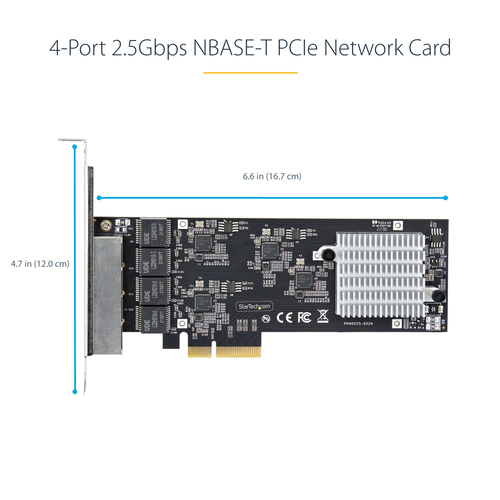

| Width | 180 mm |
| Depth | 120 mm |
| Height | 22 mm |
| Weight | 100 g |
| Packaging data | |
| Low-profile bracket | Yes |
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Package weight | 130 g |

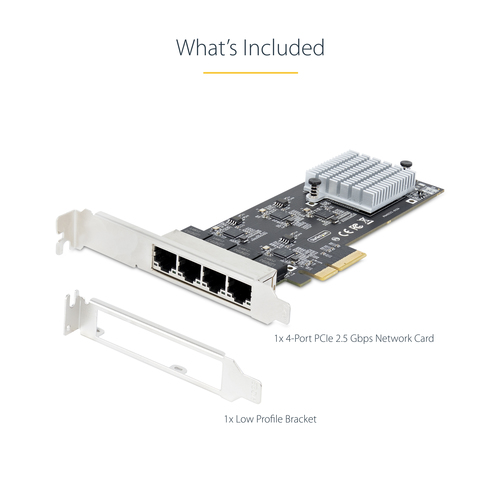

| Packaging content | |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 605 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 385 mm |
| Products per master (outer) case | 80 pc(s) |
