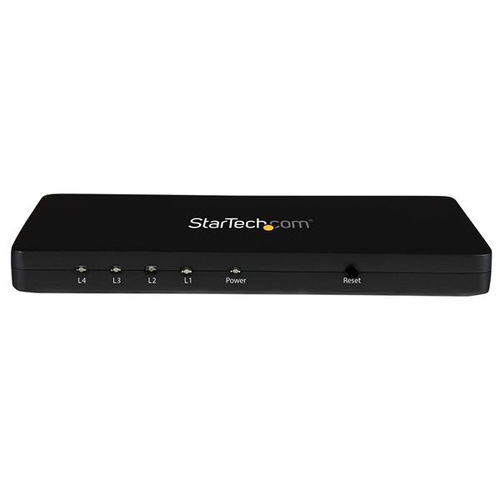

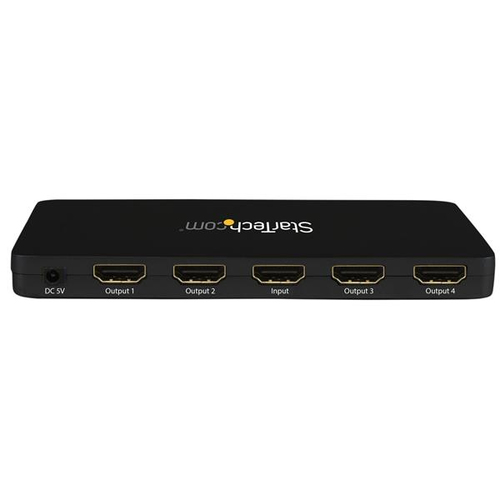

StarTech.com 4K HDMI 4-Port Video Splitter – 1x4 HDMI Splitter w/ Solid Aluminum Housing – 4K 30Hz
- Brand
- STARTECH
- Product code
- ST124HD4K
- SKU
- B1D7FQ56GOEGS
- EAN/GTIN
- 0065030858335
- 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to four HD/ 4K 30Hz & 7.1 CH audio; Support for 7.1 surround sound audio
- EDID EMULATION: 1x4 HDMI splitter 4K automatically passes EDID between your video source and displays native settings such as resolution and refresh rate
- LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for 4x TVs/projectors/monitors/displays
- EASY SETUP: No drivers required for this 1-input 4-output UHD HDMI 1.4 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Splitter with solid aluminum housing is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Product Info
Split an HDMI audio/video source on four separate HDMI displays simultaneously, with support for resolutions up to 4KThe ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio / video source devices, such as a computer, Blu-ray player or cable TV set-top box.With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 1.4 |
| Video ports quantity | 4 |
| Features | |
| Product colour | Black |
| Housing material | Aluminium |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum operating distance | 5 m |
| Maximum refresh rate | 30 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Supported video modes | 720p, 1080p, 2160p |
| LED indicators | Activity, Power |
| Certification | CE, FCC, REACH |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.35 A |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 5 W |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 140 mm |
| Height | 12 mm |
| Weight | 280 g |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 360 mm |
| Package height | 95 mm |
| Package weight | 530 g |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Included power plug types | AU, EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Audio support | Yes |
| Supported audio channels | 7.1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
