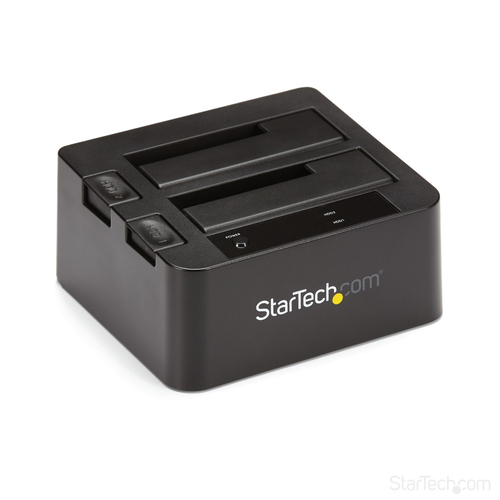

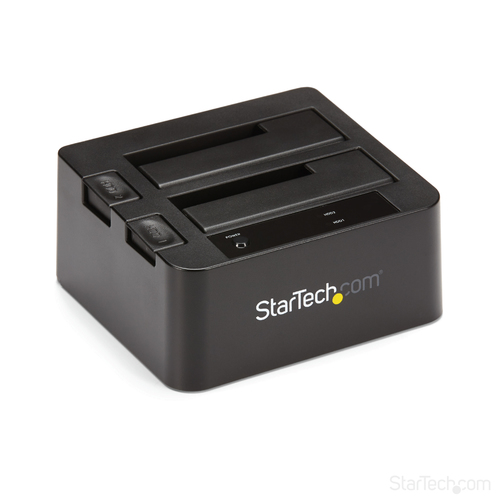

StarTech.com Dual-Bay USB 3.2 Gen 2 to SATA Hard Drive Docking Station, USB 10Gbps Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bay, Top-Loading
- Brand
- STARTECH
- Product code
- SDOCK2U313
- SKU
- 7PNY2LZ5GLPNA
- EAN/GTIN
- 0065030861663

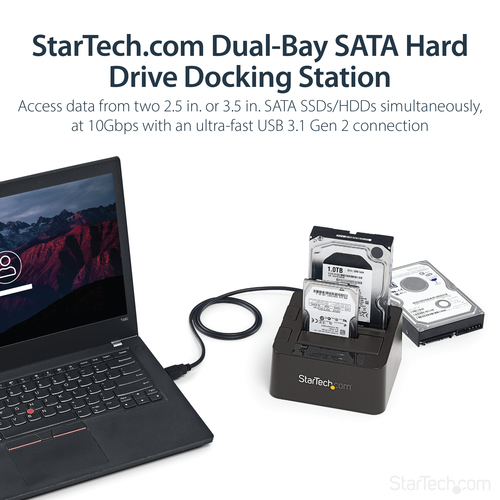

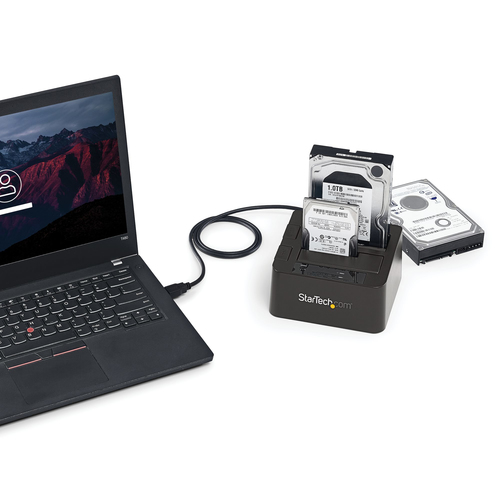

- HARD DRIVE DOCKING STATION: This 2-bay hard drive dock delivers instant access to your 2.5/3.5" SATA hard drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 2 (10 Gbps). Tool-less design enables easy drive hot-swapping.
- DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs & SSDs of any capacity / OS Independent / Backwards compatible w/ SATA I/II / IDE adapter (SAT2IDEADP) sold separately / Includes 3ft USB-A cable and universal power adapter
- PERFORMANCE: Get maximum performance from your SATA III drive with a 10 Gbps USB 3.2 host connection. Drive bays with 5,000-cycle insertion rating for maximum durability.

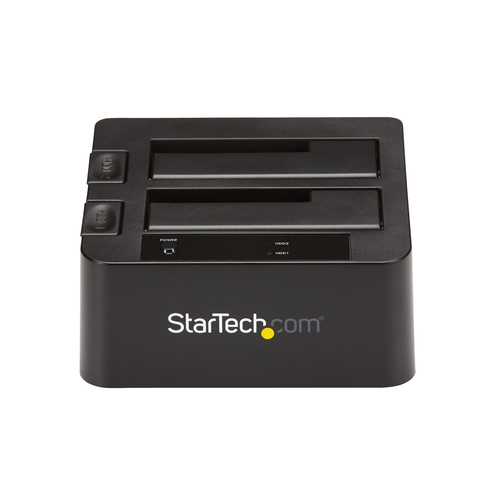

- SPECS: 2-Bay Hard Drive Dock / SATA I/II/III (1.5/3/6 Gbps) / USB 3.2 Gen 2 (10 Gbps) Host Connection / Tool-less/Tray-less Design / Hot-Swappable Drive Bays / Top-Loading/Toaster-Style with Eject Buttons / LED Activity Lights
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this Dual-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
Product Info

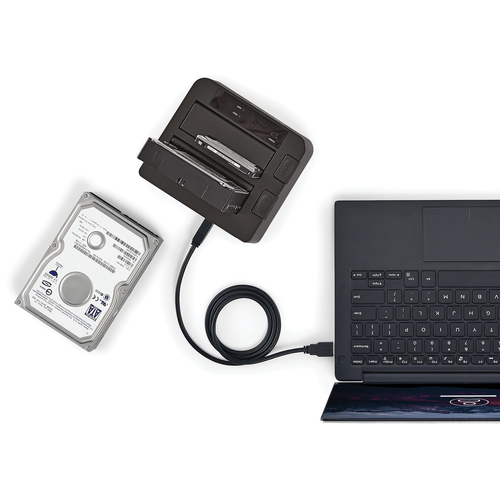

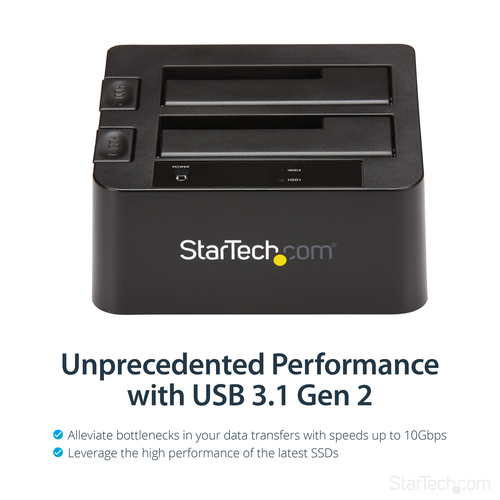

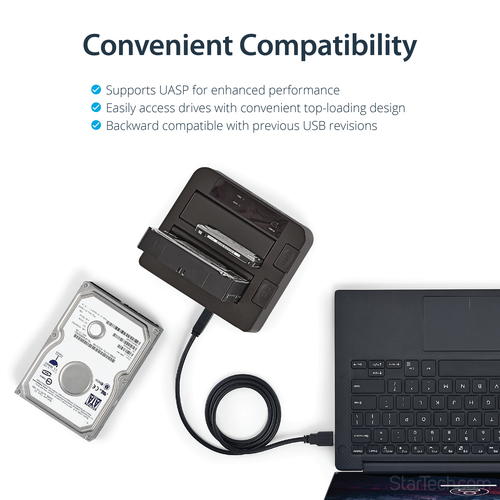

External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/IIIGet unprecedented performance and storage capacity with this USB 3.1 Gen 2 (10 Gbps) dual-drive docking station. It supports both 2.5” and 3.5” form factor solid-state and hard drives, with a high capacity storage capability of 12TB (6TB per drive).Harness the speed of USB 3.1 Gen 2USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.Top-loading design for easy drive accessIt’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.Convenient compatibilityThe dual-drive docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5” or 3.5” IDE hard drive into a SATA hard drive dock.The SDOCK2U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
| Hard drive | |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 6 TB |

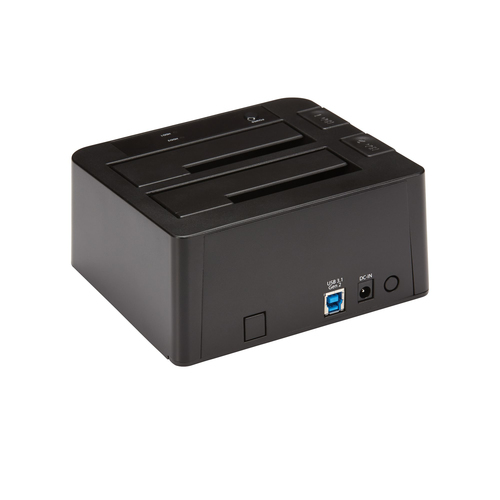

| Ports & interfaces | |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Material | Plastic |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Chipset | ASMedia - ASM1352R |
| Certification | CE, FCC, REACH |
| Cooling | |
| Built-in fan | No |
| Power | |
| AC input voltage | 100-240 V |
| Input current | 1.3 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |

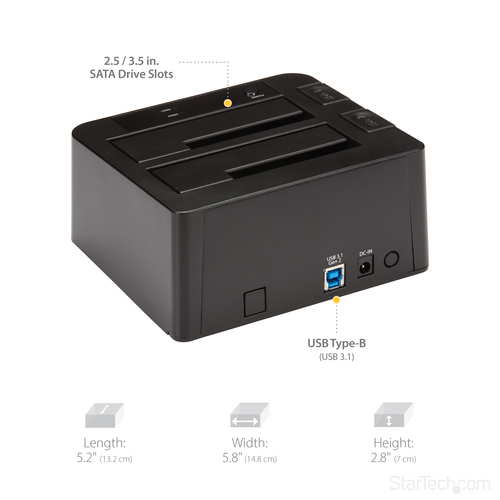

| Weight & dimensions | |
| Width | 148 mm |
| Depth | 132 mm |
| Height | 70 mm |
| Weight | 502 g |

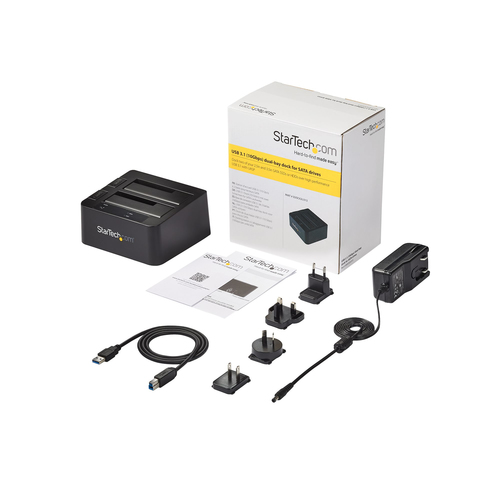

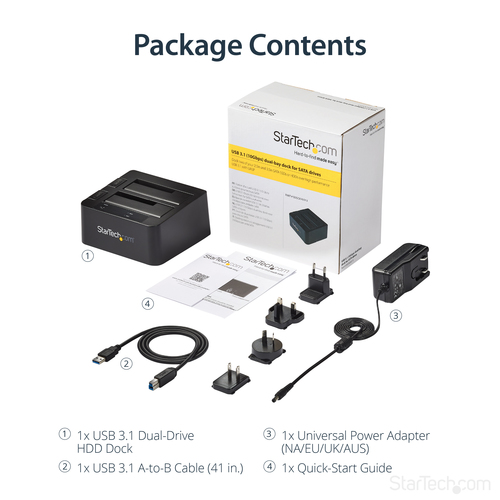

| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| Included power plug types | AU, EU, NA, UK |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 210 mm |
| Package height | 120 mm |
| Package weight | 980 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 200 mm |
| Master (outer) case length | 620 mm |
| Master (outer) case height | 465 mm |
| Products per master (outer) case | 10 pc(s) |
