StarTech.com Cisco GLC-LH-SM Compatible SFP Module - 1000BASE-LX/LH - - 1GE Gigabit Ethernet SFP - LC 621 mi - 1310nm - Cisco IE3400, IE3300, IE3200~Cisco GLC-LH-SM Compatible SFP Module - 1000BASE-LX/LH - - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - Cisco IE3400, IE3300, IE3200
- Brand
- STARTECH
- Product code
- SFPGLCLHSMST
- SKU
- 26ZL3QL46XZ38
- EAN/GTIN
- 0065030850643
- 100% CISCO GLC-LH-SM COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400 and others
- TECHNICAL SPECS: 1000BASE-LX/LH / 1 Gbps / Single Mode (SMF)/Multi Mode (MMF) / LC Connector / 1310nm / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Product Info
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

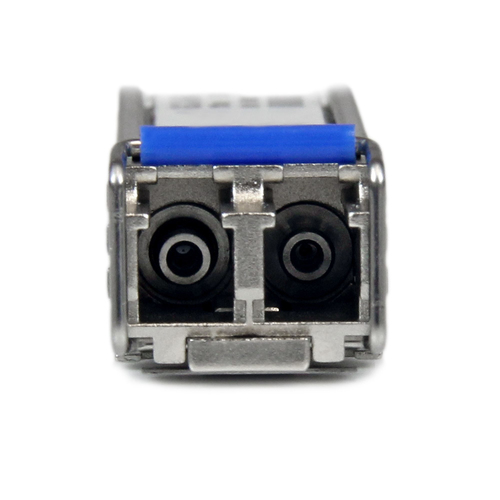

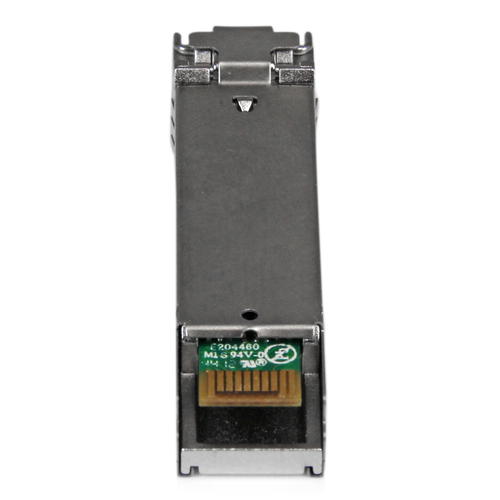

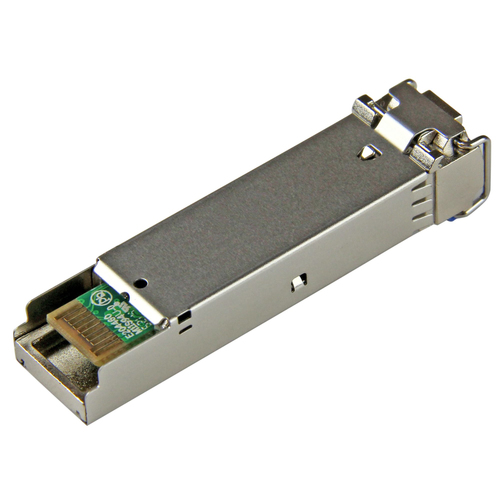

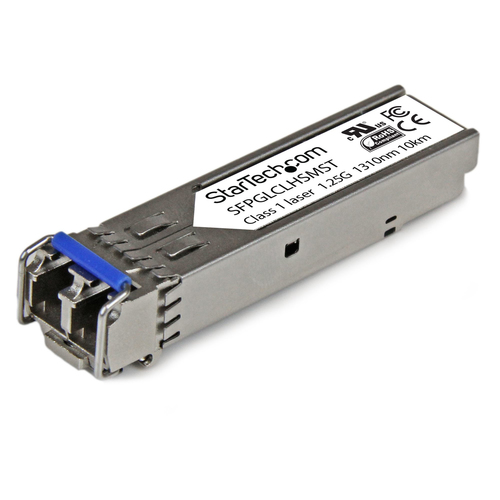

The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310 nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode / Multimode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% CISCO GLC-LH-SM COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400 and others
- TECHNICAL SPECS: 1000BASE-LX/LH
- 1 Gbps
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LH, LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | No |
| Wavelength-division multiplexing (WDM) | No |
| Features | |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3092408 h |
| Certification | CE, FCC, UL |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 60 mm |
| Height | 10 mm |
| Weight | 20 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 119 mm |
| Package depth | 93 mm |
| Package height | 33 mm |
| Package weight | 46 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 251 mm |
| Master (outer) case length | 303 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 211 mm |
| Products per master (outer) case | 36 pc(s) |
