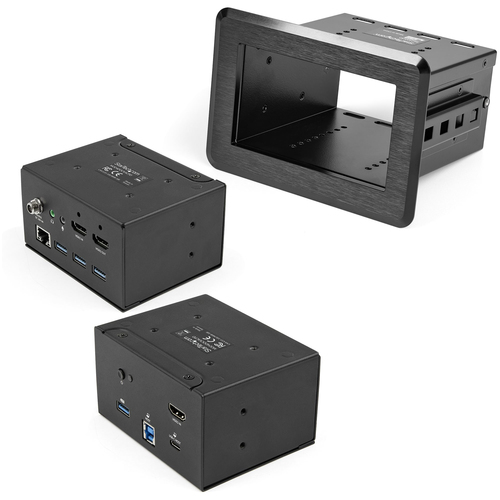

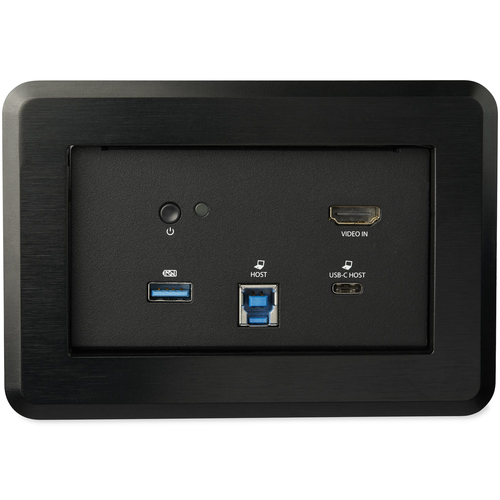

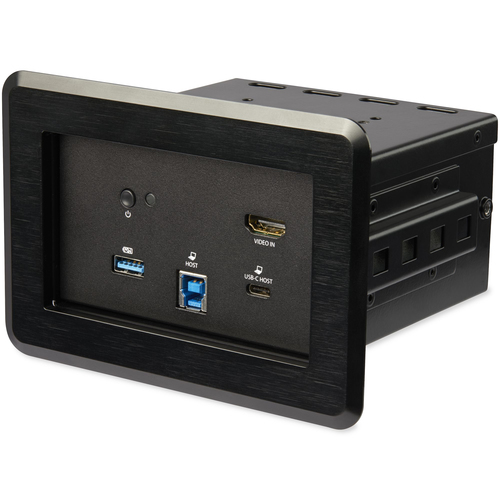

StarTech.com KITBZDOCK AV conferencing bridge
StarTech.com Conference Room Docking Station - Universal Laptop Dock - 4K HDMI, 60W Power Delivery, USB Hub, GbE, Audio - In-Table Connectivity Box For Huddle/Boardroom Collaboration Space
- Brand
- STARTECH
- Product code
- KITBZDOCK
- SKU
- KE4O5WIZGK8BY
- EAN/GTIN
- 0065030891219
- "CONFERENCE TABLE BOX UNIVERSAL DOCKING: Setup an in-desk or in-table docking station with USB-C or USB-A host connectivity to connect to your boardroom or workstation peripherals; Easy one-cable docking with your conference room hardware
- VIDEO FLEXIBILITY: Auto switching between USB-C or USB-A host laptops; Features USB-C (DP Alt-mode/DisplayLink), USB-A (DisplayLink), or HDMI pass through video ports (HDMI mode for AV connectivity only); Max resolution 4K UHD (3840x2160 30Hz)
- DOCKING CONNECTIVITY PORTS: Integrated USB 3.0 5Gbps hub with 4x USB-A ports (incl. 1x BC1.2 fast charge port) / USB-C Power Delivery up to 60W to charge your laptop / Gigabit Ethernet / 3.5mm mic input and 3.5mm stereo audio output
- AUDIO OUTPUT: Meeting room multimedia connection box supports up to 7.1 CH audio with USB-C docking or HDMI pass through or up to 5.1 CH audio when used with USB-A docking (DisplayLink)
- COMPATIBILITY: This conference room connectivity box/insert works w/ conferencing/collaboration apps like MS Teams/Zoom/others; Works w/ USB-A, USB-C & Thunderbolt 3 laptops; Works w/ Windows (7+)/macOS (v10.8+)/Linux (v4.15+)/iPadOS/ChromeOS (v55+)

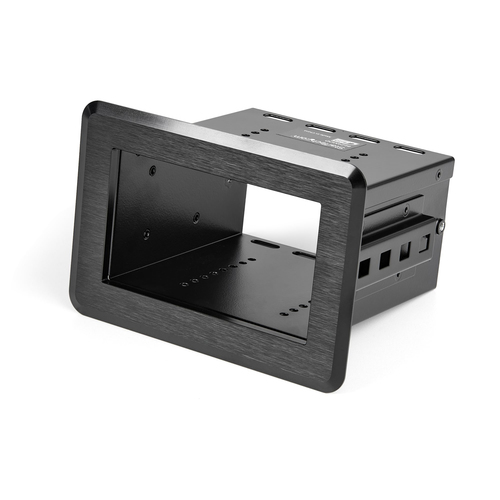

- FLEXIBLE INSTALLATION OPTIONS: Incl. manual, cut-out template, and all mounting hardware / bracket for in table or under the table installation/ designed to work with range of variable depth tabletop thicknesses /cable management / Black aluminum finish"
€233.13
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Conference Room Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power DeliveryThe StarTech.com Advantage
| Video | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Data transfer rate (max) | 5 Gbit/s |
| Features | |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Power |
| Chipset | DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153 |
| Operating systems supported | Windows 7, 8, 8.1, 10 macOS 10.9 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0 Ventura Chrome OS v55+ |
| Ports & interfaces | |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Audio input | 1 |
| Audio output | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| UASP support | Yes |
| DC-in jack | Yes |
| Power | |
| Input current | 2 A |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 20 V |
| AC adapter output current | 6 A |
| Power plug type | Type N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 100 mm |
| Height | 115 mm |
| Weight | 1.1 kg |
| Package width | 190 mm |
| Package depth | 192 mm |
| Package height | 134 mm |
| Package weight | 3 kg |
| Logistics data | |
| Master (outer) case width | 190 mm |
| Master (outer) case length | 192 mm |
| Master (outer) case height | 134 mm |
| Products per master (outer) case | 1 pc(s) |
