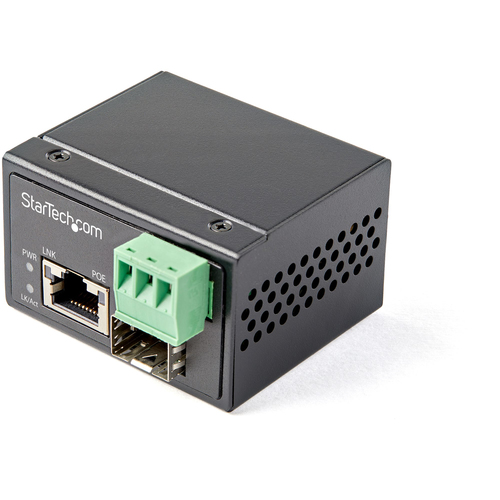

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Mini/Compact Size - IP-30/ -40 to +75C
- Brand
- STARTECH
- Product code
- IMC1GSFP30W
- SKU
- 5RAJP6JFGW77R
- EAN/GTIN
- 0065030889575
- COMPACT SIZE + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors
- TECH SPECS: 1 Gbps
- 1 x Open SFP (MSA Compliant)
- 1x RJ45
- 48V-56VDC
- IEEE 802.3af / IEEE 802.3at (30W)
Product Info
Industrial PoE Media Converter | 10/100/1000 Mbps | 30 Watts | Open SFP | DIN Rail Mountable
This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector
It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances.
Designed for Small Spaces & Harsh Environments

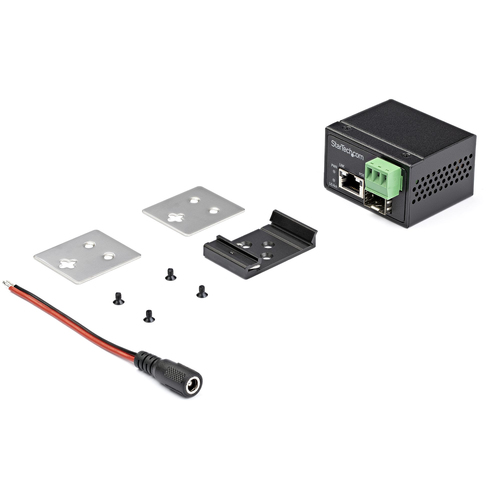

At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.
OPERATING TEMPERATURE
STORAGE TEMPERATURE
40°C to 75°C
-40°C to 85°C
104°F to 167°F
104°F to 185°F
Up to 30 Watts of Power for Connected Devices
30 watts of available support a wide range of devices such as:
Surveillance Cameras
Wireless Access Points
Locks & Sensors
Lighting
Open SFP Slot to Leverage Your Current Infrastructure
The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.
Industrial IoT and Bringing Connectivity Outside of the Data Center
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- COMPACT SIZE + PoE: Smallest form factor Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; up to 30W of PSE power to PoE/PoE+ PD devices like cameras & sensors
- TECH SPECS: 1 Gbps
- 1 x Open SFP (MSA Compliant)
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Flow control support | Yes |
| Duplex system | Full |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 500000 h |
| Design | |
| Internal | No |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Certification | CE, FCC |
| Power | |
| Input voltage | 48 - 56 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Power plug type | Type N |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 59 mm |
| Height | 49 mm |
| Weight | 80 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 155 mm |
| Package depth | 105 mm |
| Package height | 64 mm |
| Package weight | 204.9 g |
| Packaging content | |
| Quick installation guide | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 225 mm |
| Products per master (outer) case | 20 pc(s) |
