StarTech.com PEX2MPEX interface cards/adapter
PEX2MPEX - 0065030845793

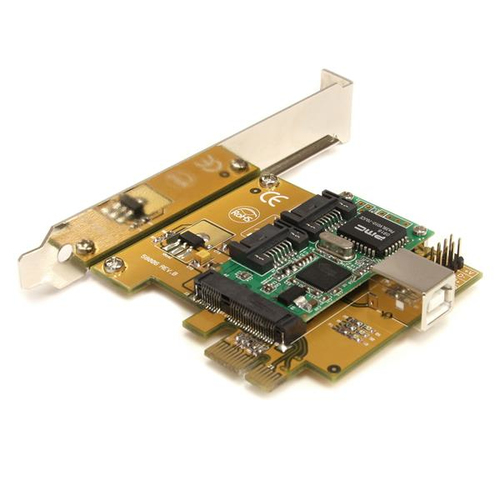

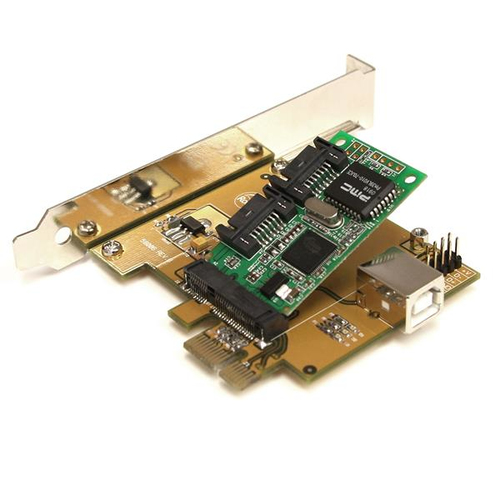

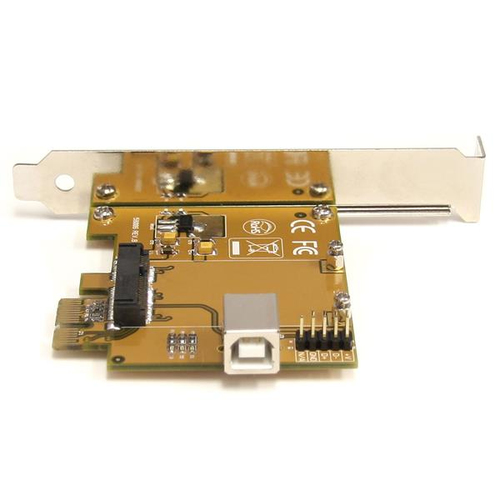

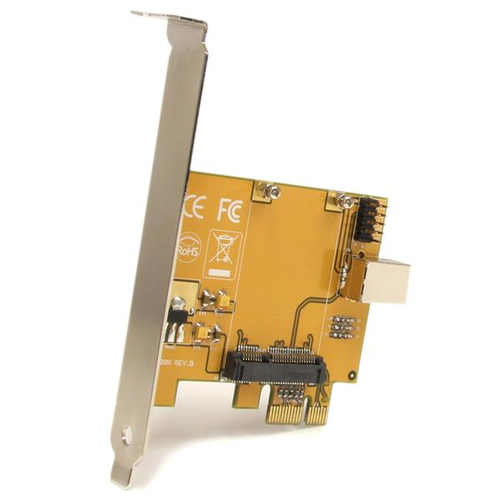

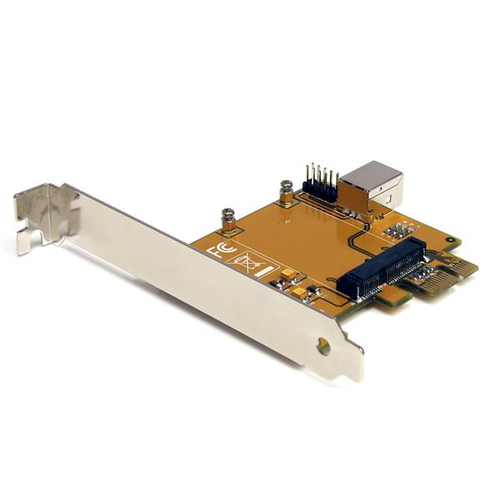

StarTech.com PCI Express to Mini PCI Express Card Adapter
- Brand
- STARTECH
- Product code
- PEX2MPEX
- SKU
- A91JAOP6K6TUZ
- EAN/GTIN
- 0065030845793
- Internal
- Host interface: PCIe
- Output interface: Mini PCIe
Product Info
StarTech.com PCI Express to Mini PCI Express Card Adapter
StarTech.com PCI Express to Mini PCI Express Card Adapter. Host interface: PCIe, Output interface: Mini PCIe. Width: 14 mm, Depth: 75 mm, Height: 68 mm. Package width: 146 mm, Package depth: 211 mm, Package height: 42 mm
Convert a Mini PCI Express Card into a Standard Desktop PCI Express Card
The PEX2MPEX PCI Express to Mini PCI Express Adapter Card enables Mini PCI Express cards (Mini Cards) to be used in a standard PCI Express card slot. These PCIe Mini Cards, which are typically designed for laptops or small form factor ITX computers, can be used normally inside more conventional desktop computers.
The adapter card features a complete PCIe to Mini PCIe pass-through design that eliminates data transfer rate bottlenecks, while the included full and low profile installation brackets makes this adapter card compatible with most computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Enables all types of full-length mini PCI Express cards to fit into a standard PCI Express card slot

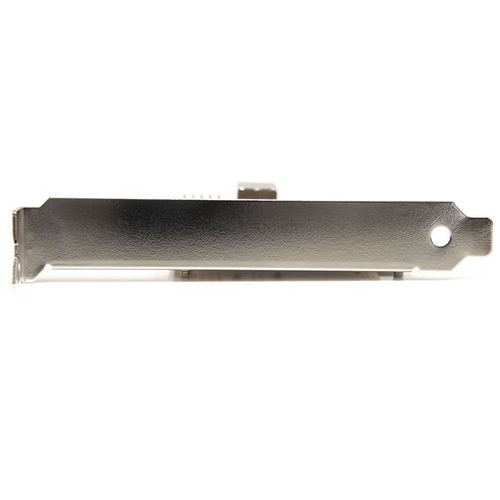

- Includes both a full and low profile/half-height installation bracket for installation into almost any computer chassis
- Backed by a StarTech.com 2-Year warranty and free lifetime technical support
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | Mini PCIe |
| Design | |
| Internal | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 75 mm |
| Height | 68 mm |
| Weight | 46 g |
| Packaging data | |
| Package width | 146 mm |
| Package depth | 211 mm |
| Package height | 42 mm |
| Package weight | 156 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
