StarTech.com Composite and S-Video to VGA Video Scan Converter
- Brand
- STARTECH
- Product code
- VID2VGATV2
- SKU
- WDDLVQ87O024W
- EAN/GTIN
- 0065030844345
- Active video converter
- 1600 x 1200 pixels Maximum refresh rate: 60 Hz
- Plug and Play
- Host interface: Composite, S-Video Output interface: VGA
- External power adapter
- 2.5 W
- Black
Product Info
Convert and Scale a Composite or S-Video Signal to Work with a VGA Display

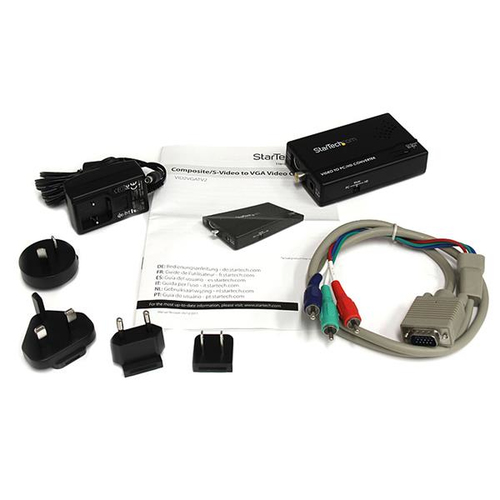

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
- Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
- Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution
| Features | |
|---|---|
| Converter type | Active video converter |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
| Product colour | Black |
| Housing material | Plastic |
| Certification | CE, FCC, TAA, REACH |
| Video | |
| Maximum video resolution | 1600 x 1200 pixels |
| Video Resolutions | 1024 x 768,1280 x 1024,1600 x 1200 |
| Analog signal format system | NTSC, PAL |
| Maximum refresh rate | 60 Hz |
| Ports & interfaces | |
| Host interface | Composite, S-Video |
| Output interface | VGA |
| Power | |
| External power adapter | Yes |
| Operating voltage | 5 V |
| Operating current | 1 A |
| Power consumption (typical) | 2.5 W |
| Technical details | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 60% |
| Weight & dimensions | |
| Width | 64 mm |
| Depth | 112 mm |
| Height | 26 mm |
| Weight | 86 g |
| Packaging data | |
| Package width | 209 mm |
| Package depth | 118 mm |
| Package height | 61 mm |
| Package weight | 459 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
