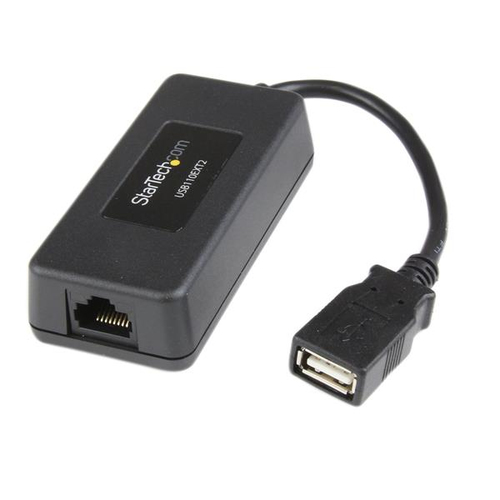

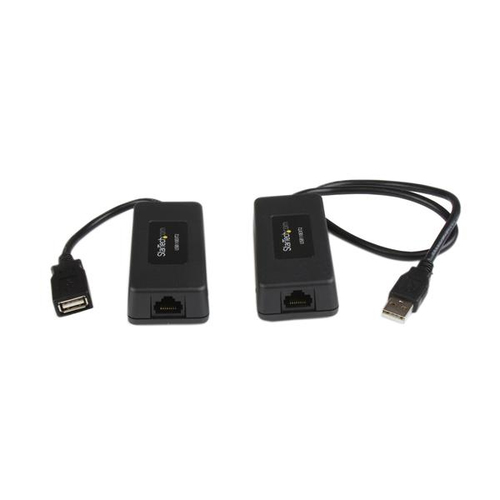

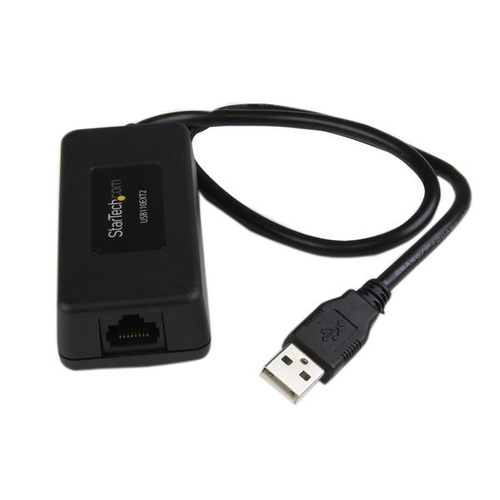

StarTech.com USB110EXT2 network extender

StarTech.com 1 Port USB over Cat5 / Cat6 Ethernet Extender - up to 131ft (40m)


Brand
STARTECH
Product code
USB110EXT2
SKU
S9XCKUX47HIH1
EAN/GTIN
0065030847896
€130.81 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable
The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.
The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.
Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 131 feet (40 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+
- Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options
- USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device

Performance
Type Network transmitter & receiver
Maximum transfer distance 40 m
Data transfer rate 12 Mbit/s
Cable types supported Cat5, Cat6
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB 2.0 ports quantity 1
Design
Product colour Black
Certification CE, FCC, REACH
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 20 - 80%
Weight & dimensions
Width 40 mm
Depth 85 mm
Height 25 mm
Weight 110 g
Technical details
Sustainability certificates RoHS
Packaging content
Manual Yes
Packaging data
Package width 128 mm
Package depth 128 mm
Package height 60 mm
Package weight 170 g
Logistics data
Harmonized System (HS) code 85176990
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
