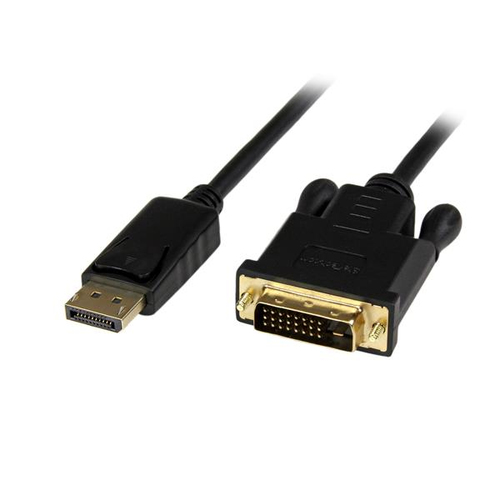

StarTech.com 3ft (1m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Converter Single Link - DP 1.2 to DVI Monitor Cable
- Brand
- STARTECH
- Product code
- DP2DVIMM3BS
- SKU
- VL1A8299ODOOQ
- EAN/GTIN
- 0065030854900
- 0.9 m
- DisplayPort Straight Male
- DVI-D Straight Male
- 1920 x 1200 pixels
- Black
- 1 pc(s)
Product Info
Eliminate excess cable clutter with a short 3ft DisplayPort to DVI active adapterThe DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.The DP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.Note:This adapter is not compatible for use with the Apple Cinema Display.
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.9 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.2 |
| Dual Link DVI | No |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Product colour | Black |
| Chipset | Parade - PS171 |
| Plug and Play | Yes |
| Converter type | Active video converter |
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 74.9 g |
| Width | 40 mm |
| Depth | 915 mm |
| Height | 15 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 197 mm |
| Package depth | 222 mm |
| Package height | 15 mm |
| Package weight | 91.6 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 220 pc(s) |
