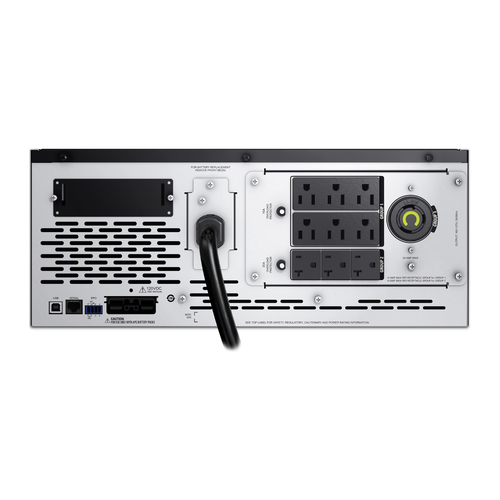

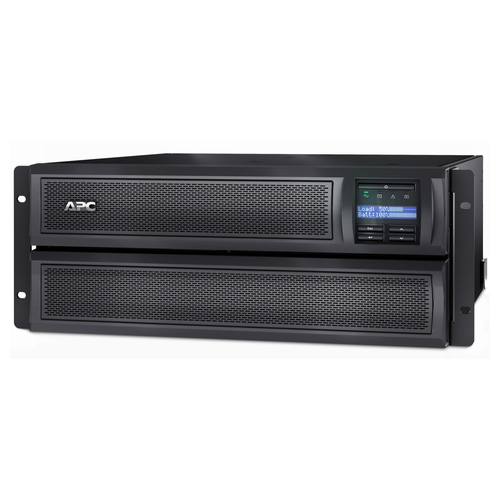

APC SMX3000RMX93 uninterruptible power supply (UPS)

SMX3000RMX93 - 731304433668

APC Smart-UPS 3kVA RM 120V SHIPBOARD

Brand: APC HW
Product code: SMX3000RMX93
SKU: T526FY38KBU3E
EAN/GTIN: 731304433668

Line-Interactive
2.88 kVA 2700 W
Waveform: Sine
3 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount Black

€4533.88 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Smart-UPS 3kVA RM 120V SHIPBOARD

APC Smart-UPS 3kVA RM 120V SHIPBOARD. UPS topology: Line-Interactive, Output power capacity: 2.88 kVA, Output power: 2700 W. AC outlet types: NEMA 5-15R, Power plug: NEMA L5-30P, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6.25 min, Typical backup time at half load: 18.3 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 4U. Compliance certificates: REACH, RoHS, Certification: REACH, RoHS, BSMI

Specifications

Features

UPS topology Line-Interactive

Output power capacity 2.88 kVA

Output power 2700 W

Waveform Sine

Input operation voltage (min) 70 V

Input operation voltage (max) 153 V

Input frequency 50/60 Hz

Output operation voltage (min) 100 V

Output operation voltage (max) 120 V

Output frequency 50/60 Hz

Response time 2 ms

Emergency Power Off (EPO) Yes

Noise level 55 dB

Audible alarm(s) Yes

Audible alarm modes Low battery alarm

Detachable power cord No

Ports & interfaces

AC outlet types NEMA 5-15R

Power plug NEMA L5-30P

AC outlets quantity 3 AC outlet(s)

USB port Yes

USB port type USB Type-B

Serial interface Yes

Serial interface type RJ-45

Battery

Battery technology Sealed Lead Acid (VRLA)

Typical backup time at full load 6.15 min

Typical backup time at half load 18.3 min

Battery life (max) 5 year(s)

Battery recharge time 3 h

Design

Form factor Rackmount

Rack capacity 4U

Cable length 2.44 m

Product colour Black

Control type Buttons

Display type LED

LED indicators Yes

Certification REACH, RoHS, BSMI

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3048 m

Non-operating altitude 0 - 15240 m

Technical details

Sustainability certificates REACH, RoHS

Doesn't contain Mercury

Warranty period 3 year(s)

Weight & dimensions

Width 178 mm

Depth 483 mm

Height 432 mm

Weight 38.6 kg

Package width 588 mm

Package depth 663 mm

Package height 330 mm

Package weight 47.6 kg
