ASUS TUF GAMING B760M-PLUS II

90MB1HD0-M0EAY0 - 4711387469798

ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX

Brand: Asus
Product code: 90MB1HD0-M0EAY0
SKU: 1NKQ76KUAY8SE
EAN/GTIN: 4711387469798

Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
PC micro ATX Intel B760 7.1 channels
DDR5-SDRAM 4 DIMM Non-ECC Maximum internal memory: 192 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
BIOS type: UEFI AMI 128 Mbit
2.5 Gigabit Ethernet

€190.93 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Intel Socket LGA1700, Intel B760 Chipset, 4 x DIMM slots, Max. 192GB, DDR5, micro-ATX Form Factor

ASUS TUF GAMING B760M-PLUS II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

TUF GAMING B760M-PLUS II
TUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

INTELLIGENT CONTROL
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.

All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Specifications

Processor

Processor manufacturer Intel

Processor socket LGA 1700

Compatible processor series Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Supported processor sockets LGA 1700

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 4

Memory slots type DIMM

Memory channels Dual-channel

Non-ECC Yes

Supported memory clock speeds 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Supported memory clock speed (max) 7800 MHz

Maximum internal memory 192 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 7

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

Internal I/O

USB 2.0 connectors 3

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

Number of SATA III connectors 4

Front panel audio connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of chassis fan connectors 3

EPS power connector (8-pin) Yes

Thunderbolt headers 1

12V power connector Yes

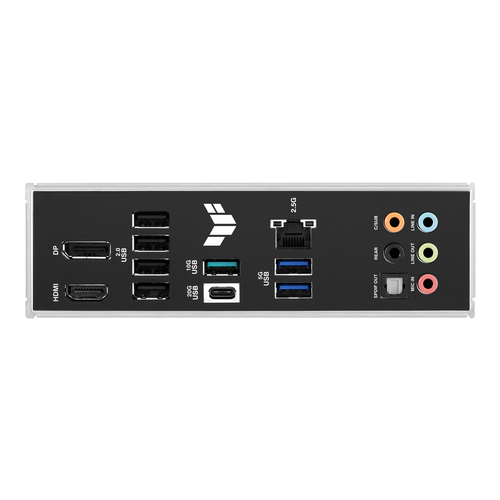

Rear panel I/O ports

USB 2.0 ports quantity 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

DisplayPorts quantity 1

Headphone outputs 1

Microphone in Yes

S/PDIF out port Yes

Network

Ethernet LAN Yes

Ethernet interface type 2.5 Gigabit Ethernet

Wi-Fi No

Features

Motherboard chipset Intel B760

Audio output channels 7.1 channels

Component for PC

Motherboard form factor micro ATX

Motherboard chipset family Intel

Windows operating systems supported Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots 1

PCI Express x4 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 1

Number of M.2 (M) slots 3

BIOS

BIOS type UEFI AMI

BIOS memory size 128 Mbit

Packaging data

Package width 280 mm

Package depth 265 mm

Package height 71 mm

Package weight 1.65 kg

Weight & dimensions

Width 244 mm

Depth 244 mm

Height 50 mm

Packaging content

Cables included SATA

Screws included Yes

Other features

Weight 982 g
