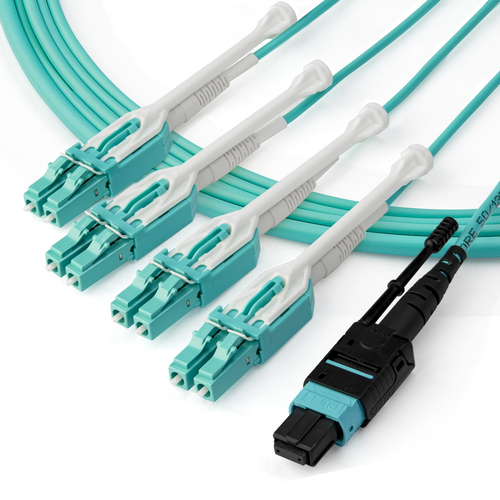

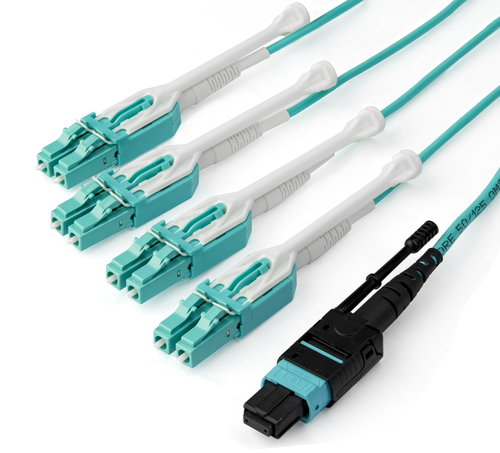

StarTech.com 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord
- Brand
- STARTECH
- Product code
- MPO8LCPL3M
- SKU
- O34LFTFN6G5C3
- EAN/GTIN
- 0065030878944
- OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers

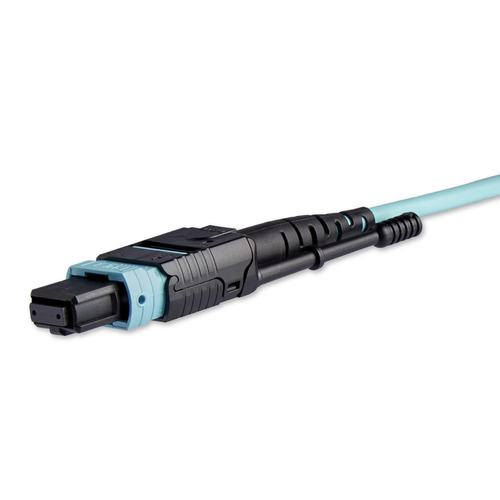

- QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
- RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
- COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
- SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: ≤0.5dB (MTP), ≤0.2dB (LC)
Product Info

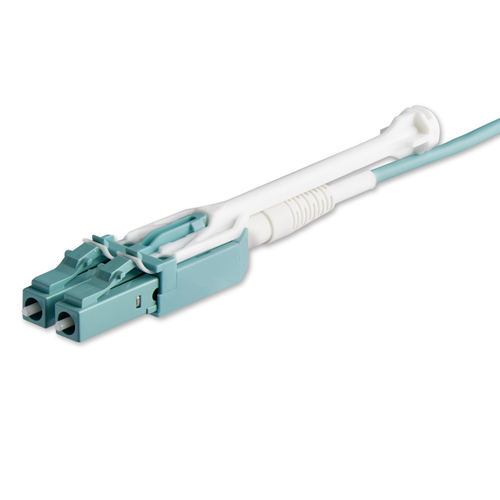

Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.The MPO8LCPL3M from StarTech.com is backed by a lifetime warranty.The StarTech.com Advantage
| Features | |
|---|---|
| Cable length | 3 m |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Fibre optic type | OM3 |
| Product colour | Aqua colour |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 40 Gbit/s |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 55 g |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 10 mm |
| Package weight | 62 g |
| Logistics data | |
| Master (outer) case width | 235 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 190 mm |
| Products per master (outer) case | 50 pc(s) |
