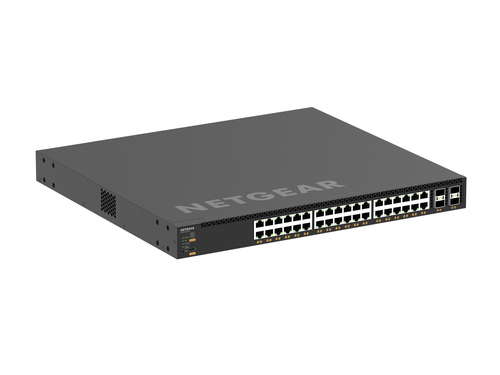

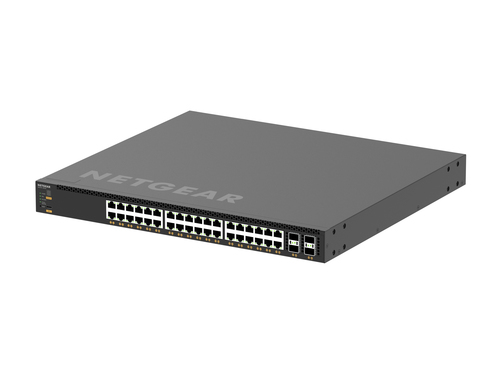

NETGEAR M4350-36X4V

XSM4340CV-100NES - 606449165104

NETGEAR M4350-36X4V Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

Brand: Netgear
Product code: XSM4340CV-100NES
SKU: ZPLSFVVMSKEF2
EAN/GTIN: 606449165104

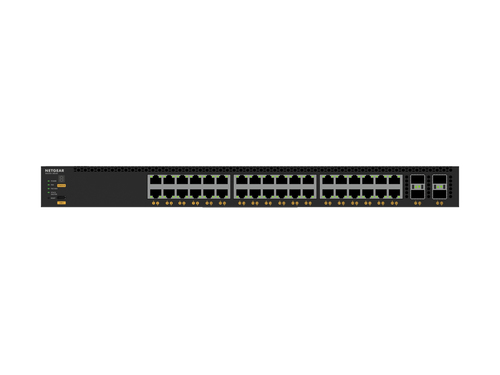

36 10G/Multi-Gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
750W internal power supply providing 280W of PoE budget

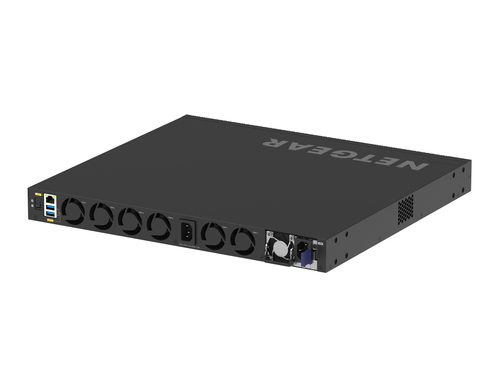

1 slot for modular power supply (1+1 redundancy and/or EPS share)
Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
The PoE budget can reach 1,760W, when the redundant PoE budget remains 280W
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
Layer 3 feature set includes static, policy-based, and dynamic routing
NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations

€9233.12 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

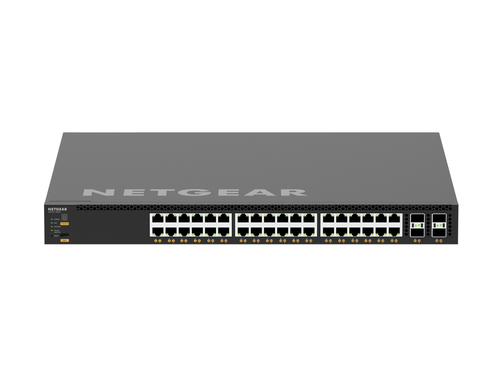

36 x 10G/Multi-Gig PoE++, 4 x 25G SFP28, 440 x 400 x 32.2 mm, 7.33 kg

NETGEAR M4350-36X4V. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 36. Full duplex. MAC address table: 16000 entries, Switching capacity: 920 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

POWER AND THROUGHPUT

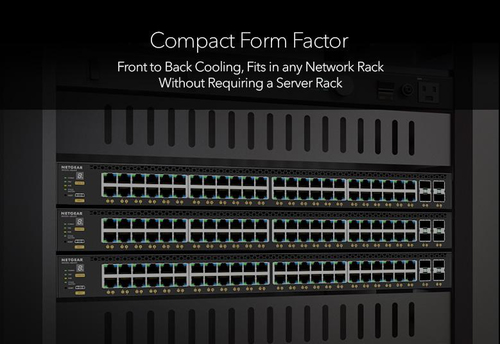

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

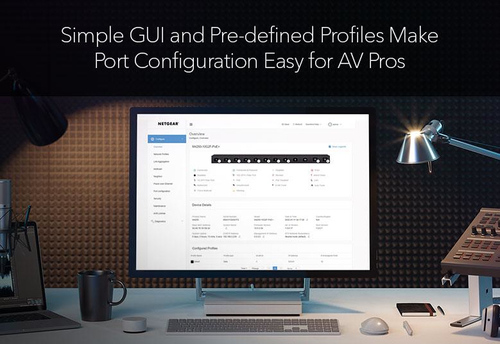

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Specifications

Management features

Switch type Managed

Switch layer L3

Quality of Service (QoS) support Yes

Web-based management Yes

ARP inspection Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 36

Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)

10G Ethernet (copper) ports quantity 36

SFP28 ports quantity 4

Power connector AC-in jack

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u

10G support Yes

Full duplex Yes

Policy-based routing Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

6to4 tunnel Yes

IPv4 routes 512

IPv6 routes 256

VLAN support Yes

Virtual LAN features MAC address-based VLAN, Private VLAN, Voice VLAN

Number of VLANs 4093

Data transmission

Switching capacity 920 Gbit/s

Throughput 684.48 Mpps

MAC address table 16000 entries

Store-and-forward Yes

Latency (1 Gbps) 2.54 µs

Latency (10 Gbps) 2.75 µs

Jumbo frames support Yes

Jumbo frames 12000

Packet buffer memory 64 MB

Security

DHCP features DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping

Access Control List (ACL) Yes

Access Control List (ACL) egress 1023

Access Control List (ACL) ingress 511

IGMP snooping Yes

IGMP proxy Yes

MAC address filtering Yes

Static port security Yes

Loop protection Yes

BPDU filtering/protection Yes

Authentication Guest VLAN, MAC-based authentication

Root protection Yes

Password protection Yes

DoS attack prevention Yes

Authentication type RADIUS, TACACS+

Queue scheduling algorithms Strict Priority Queue (SPQ), Weighted random early detection (WRED)

Multicast features

Multicast support Yes

Multicast Listener Discovery (MLD) snooping Y

Protocols

Management protocols SNMP V1, V2, V3

GARP VLAN Registration Protocol (GVRP) Yes

Routing protocols OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

Design

Rack mounting Yes

Stackable Yes

Form factor 1U

Product colour Black

LED indicators Yes

Airflow direction Front-to-back airflow

Performance

Built-in processor Yes

Processor model ARM Cortex-A57

Processor frequency 1800 MHz

Memory type DDR4-SDRAM

Internal memory 4096 MB

Flash memory 512 MB

Noise level 54 dB

sFlow Yes

Power

Power source AC

Power supply included Yes

AC input voltage 100 - 240 V

AC input frequency 60 Hz

Power consumption (typical) 148 W

Power consumption (max) 454 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet 4PPoE (PoE++) ports quantity 36

Power over Ethernet (PoE) power per port 90 W

Total Power over Ethernet (PoE) budget 1760 W

Operational conditions

Operating temperature (T-T) 0 - 45 °C

Storage temperature (T-T) -20 - 70 °C

Operating relative humidity (H-H) 0 - 90%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 3000 m

Weight & dimensions

Width 440 mm

Depth 400 mm

Height 43.2 mm

Weight 7.33 kg

Packaging data

Cables included AC, USB Type-C

User guide Yes

Rack mount kit Yes

Included power plug types EU, NA, UK

Sustainability

Sustainability compliance Yes

Sustainability certificates BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Other features

Power supply 750 W
