StarTech.com QUAD-M2-PCIE-CARD-B interface cards/adapter
QUAD-M2-PCIE-CARD-B - 0065030895606

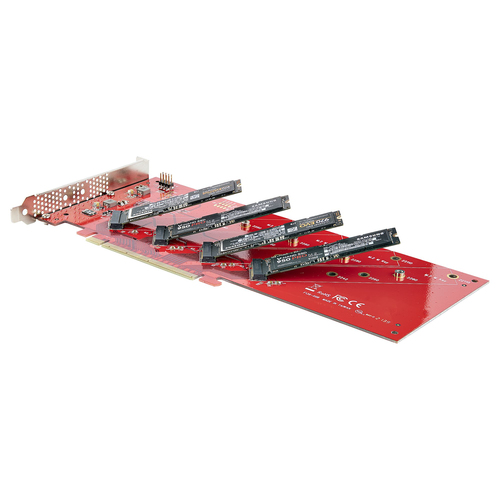

StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible
- Brand
- STARTECH
- Product code
- QUAD-M2-PCIE-CARD-B
- SKU
- P65LX3EP1YFF9
- EAN/GTIN
- 0065030895606
- HIGH PERFORMANCE: Install 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
- WIDE COMPATIBILITY: This Quad M.2 PCIe Adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs / Not compatible with SATA based M.2 drives
- BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x16 PCIe slot / PCIe bifurcation is required / This M.2 Adapter works with most workstation and server OS's such as Windows, Windows Server, and Linux
- SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to the M.2 PCIe SSDs individually / With OS or 3rd party RAID software, build an array to add redundancy, more capacity, or performance through RAID 0, RAID 1, RAID 5, RAID 10 or JBOD

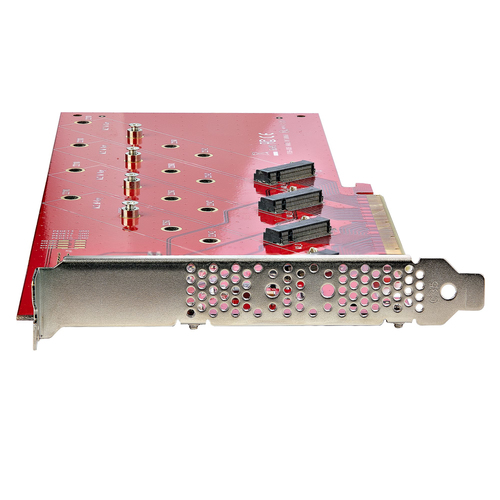

- VENTED BRACKETS: This PCIe M.2 NVMe Adapter Card comes with a pre-installed full profile bracket / The vented bracket allows for better air flow which helps maintain optimal and reliable performance while helping to avoid drive throttling
Product Info
StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible (QUAD-M2-PCIE-CARD-B)
StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Red, Mean time between failures (MTBF): 4353192 h. Data transfer rate (max): 7.8 Gbit/s. Width: 290 mm, Depth: 170 mm, Height: 30 mm. Package width: 290 mm, Package depth: 120 mm, Package height: 30 mm

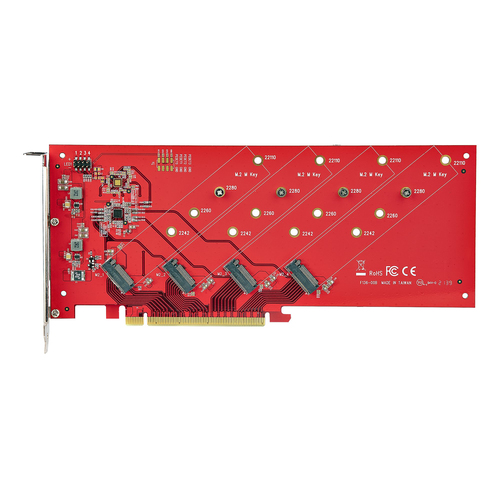

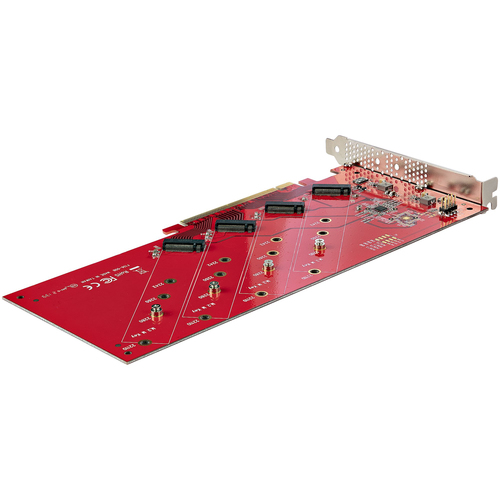

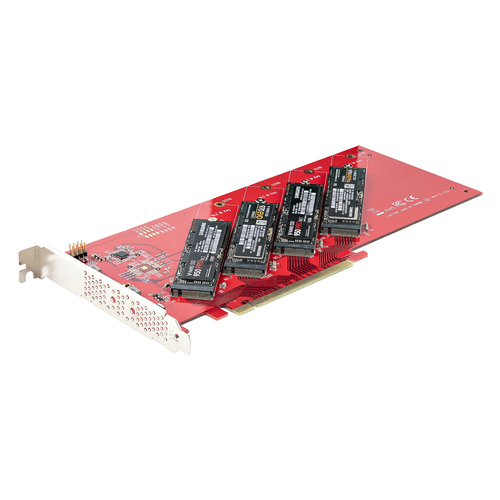

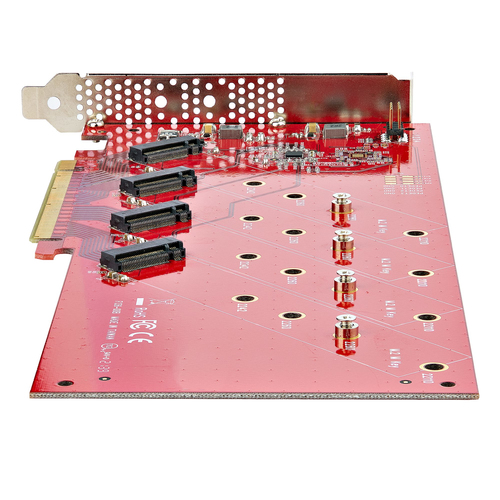

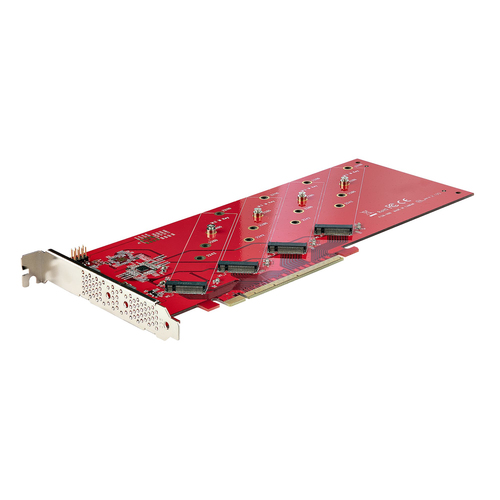

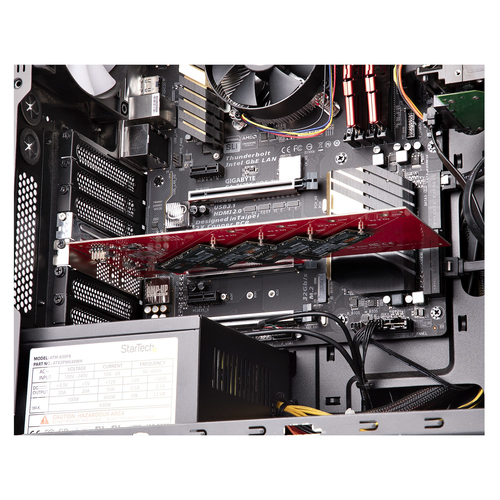

Quad M.2 NVMe / AHCI | PCIe 4.0 x16 Slot | BifurcationThis Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.Boost System PerformanceTake full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.Access Four M.2 PCIe SSDs SimultaneouslyNo on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.Wide CompatibilityThe PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M2. Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.Vented BracketsThe pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistanceThe StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | M.2 |
| Expansion card standard | PCIe 4.0 |
| Number of M.2 (M) slots | 4 |
| Design | |
| Internal | Yes |
| Product colour | Red |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 4353192 h |
| Features | |
| Data transfer rate (max) | 7.8 Gbit/s |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width | 290 mm |
| Depth | 170 mm |
| Height | 30 mm |
| Weight | 150 g |
| Packaging data | |
| Screws included | Yes |
| Quick installation guide | Yes |
| Package width | 290 mm |
| Package depth | 120 mm |
| Package height | 30 mm |
| Package weight | 150 g |
| Logistics data | |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 310 mm |
