StarTech.com ST10GSPEXNDP2 network card

ST10GSPEXNDP2 - 0065030897693

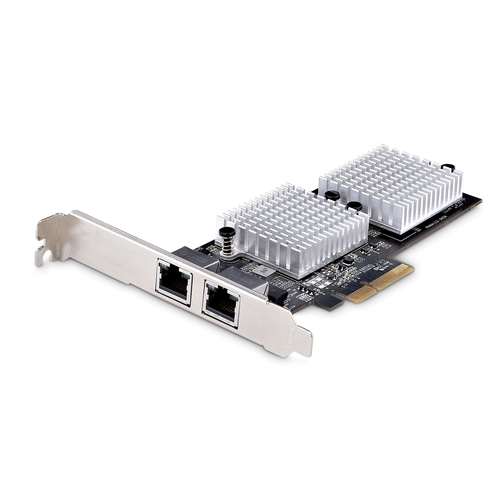

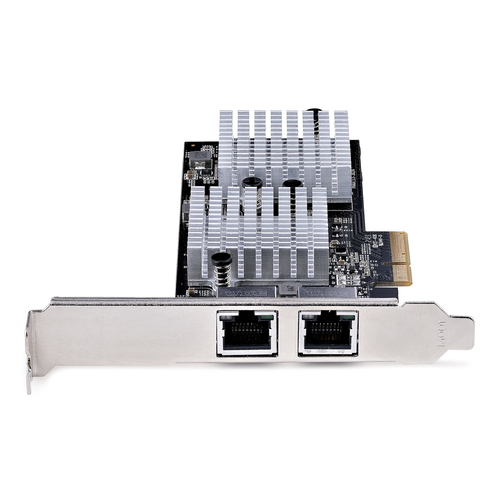

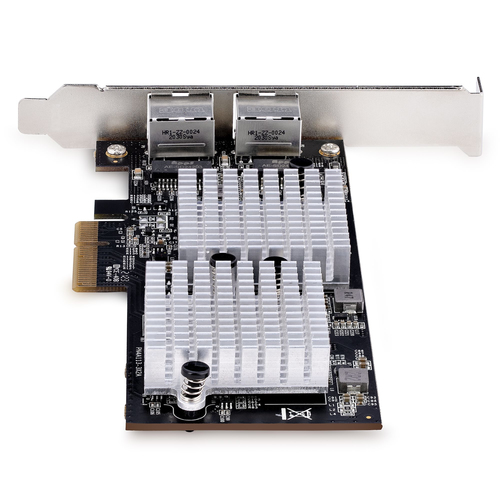

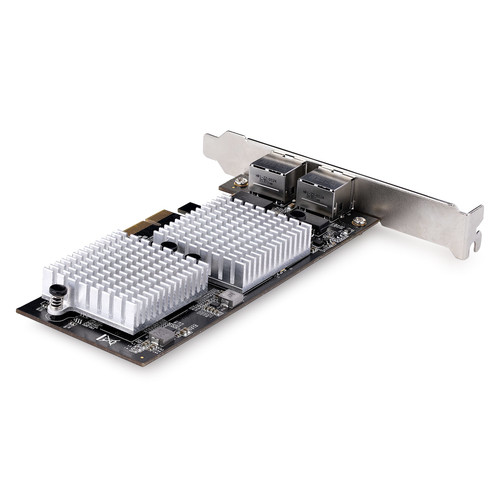

StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T

Brand: STARTECH
Product code: ST10GSPEXNDP2
SKU: J6ET33IK9XQ75
EAN/GTIN: 0065030897693

DUAL PORT 10G NETWORK ADAPTER FOR PCs: This 2-port 10 GbE-capable PCIe network adapter card enables dual or redundant high-speed network data transmission for workstations/servers leveraging existing Cat5e, Cat6, or Cat6a cable infrastructure up to 100m
SPECIFICATIONS: 2x RJ45 Ports, Six-Speed NIC 10/5/2.5/1Gbps and 100/10Mbps, 10GBASE-T and NBASE-T (2.5GBASE-T and 5GBASE-T), PCIe 3.0 x4, Marvell AQC113CS, 16K Jumbo Frames, VLAN Tagging, WoL, PXE boot, EEE, Secure Boot

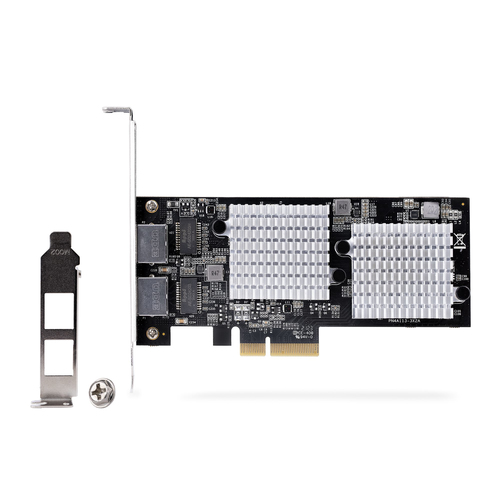

COMPATIBILITY: Network card for PC is compatible with Windows, Windows Server, and Linux; Six network speeds and included low-profile bracket widen the compatibility of the PCIe network card with full-height and small form factor (SFF) systems
MULTI-GIGABIT CONNECTIVITY: Network Interface Card supports auto negotiation; Supports 2.5/5Gbps speeds on Cat5e cabling and 10Gbps on Cat6/6a; NBase-T Ethernet Network Card features IP/TCP/UDP checksum offload, secure boot, PTP, and AVB
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 10GbE network card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance

€178.03 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T (ST10GSPEXNDP2)

StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black

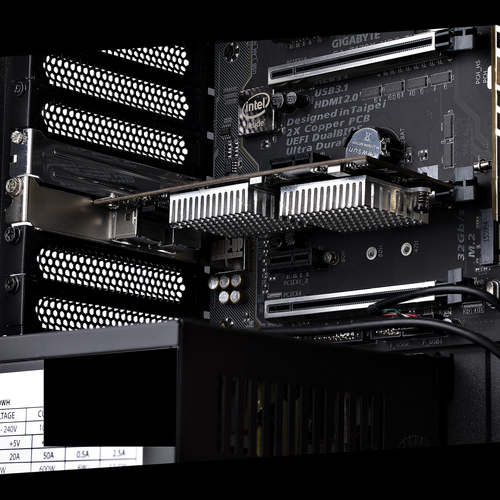

AVB | PXE Boot | PCIe 3.0 x4 | Marvell AQC113CSInstall this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.10GbE Network SpeedsThis PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.Enhance Existing HardwareNBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).The PCIe 10GbE NIC is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI version	3.0
PCI Card form factor	Full-height (low-profile)
Network
Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Cabling technology	10GBase-T
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Jumbo frames	16000
VLAN tagging	Yes
Maximum operating distance	100 m
Design
Component for	PC/Server
Product colour	Black
Internal	Yes
Chipset	Marvell AQC113CS
LED indicators	Activity, Link, Status
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Sustainability
Sustainability compliance	Yes
Sustainability certificates	CE
Weight & dimensions
Width	20 mm
Depth	145 mm
Height	65 mm
Weight	116 g
Packaging data
Package width	145 mm
Package depth	215 mm
Package height	35 mm
Package weight	208 g
Packaging content
Mounting brackets included	Yes
Quick installation guide	Yes
Logistics data
Master (outer) case width	440 mm
Master (outer) case length	370 mm
Master (outer) case height	315 mm
Products per master (outer) case	40 pc(s)
