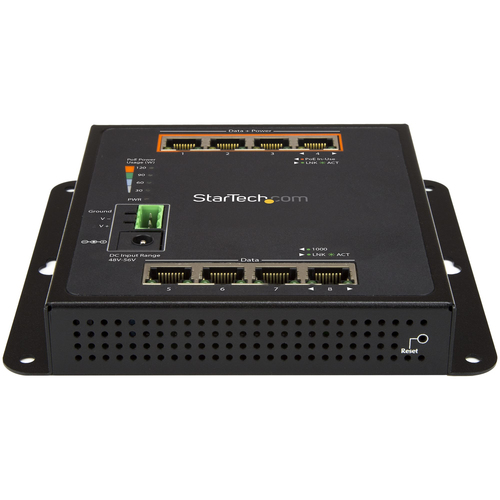

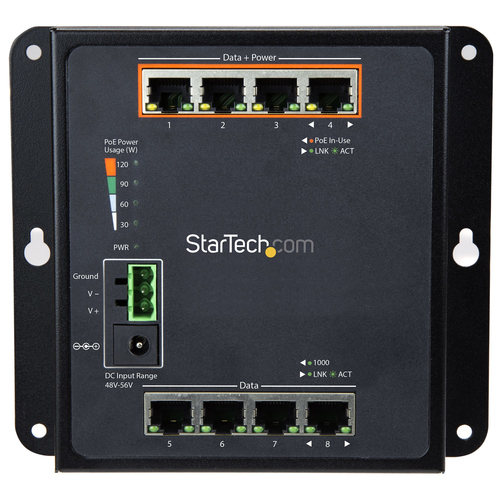

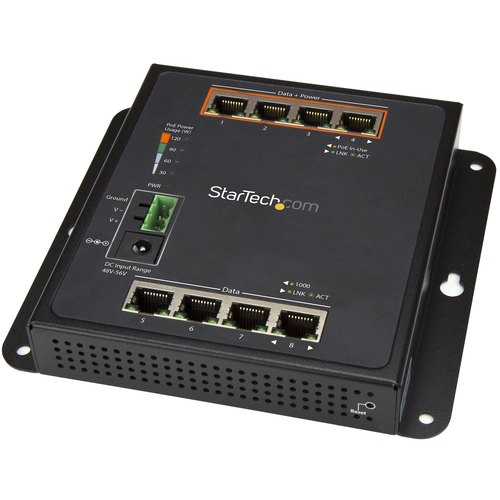

StarTech.com IES81GPOEW network switch

StarTech.com Industrial 8 Port Gigabit PoE Switch - 4 x PoE+ 30W - Power Over Ethernet - Hardened GbE Layer/L2 Managed Switch - Rugged High Power Gigabit Network Switch IP-30/-40C to +75C - TAA


Brand
STARTECH
Product code
IES81GPOEW
SKU
WXPE1MVJFCMZM
EAN/GTIN
0065030871112
  • POWER OVER ETHERNET: Industrial gigabit PoE switch up to 30W/4 PoE ports (PSE) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) for cameras sensors wi-fi APs w/Cat5e or higher cable Total power budget 120W
  • FLAT DESIGN: Compact IP-30 steel housing w/6kV ESD/Vibration/shock/free fall rating allows for front access w/easy install; DIN rail/wall mounting options w/hardware incl; -40C to 75C operating temps
  • FLEXIBLE POWER: Rugged/hardened GbE network switch can be hardwired using terminal block (48-56VDC) power or by Type-M barrel plug (12-48v); terminal block kit included
  • TECH SPECS: 8 port Gigabit switch / 4 PoE+ ports / 10/100/1000 Mbps auto negotiation / Managed Layer/L2 / VLAN / MTBF 100000+ hrs @ 25°C / Web GUI/SSH/Telnet /Link Aggregation/SNMP/QoS/Spanning Tree
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 8 port Gigabit switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
€296.27 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 managementEasily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your networkThis Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.Supports PoE+ for flexible useThe switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).Wall-mountable with front accessWith its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.Efficient Layer 2 managementThe switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.Rugged industrial designThis rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.Reliable connection for seamless network performanceWith support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.The IES81GPOEW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Management features
Switch type Managed
Switch layer L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Network
Networking standards IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z
10G support No
Full duplex Yes
Flow control support Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Spanning tree protocol Yes
Virtual LAN features Tagged VLAN
Data transmission
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 9000
Security
Access Control List (ACL) Yes
Design
Rack mounting No
Product colour Black
Housing material Steel
LED indicators Activity, Link, Power
International Protection (IP) code IP30
Wall mountable Yes
Certification CE, FCC, RoHS
Performance
Buffer size 512 KB
Maximum data transfer rate 2000 Mbit/s
Mean time between failures (MTBF) 100000 h
Power
Input current 1 A
Input voltage 12 - 48 V
Power plug type Type M
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 120 W
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 90 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 148 mm
Depth 134 mm
Height 25 mm
Weight 650 g
Packaging data
Quick start guide Yes
Terminal block included Yes
Package width 173 mm
Package depth 30 mm
Package height 92 mm
Package weight 930 g
Logistics data
Master (outer) case width 335 mm
Master (outer) case length 363 mm
Master (outer) case height 475 mm
Harmonized System (HS) code 85176990
Products per master (outer) case 10 pc(s)
Other features
Terminal block port Yes
