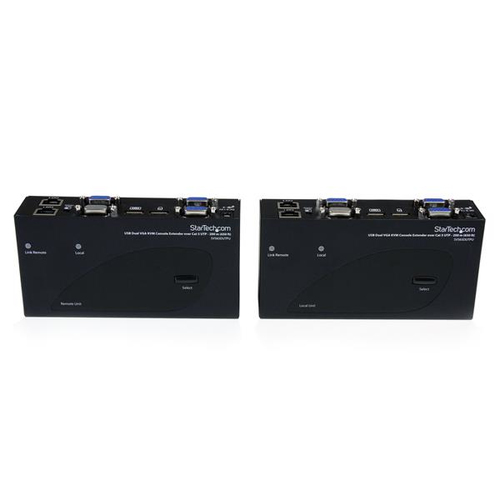

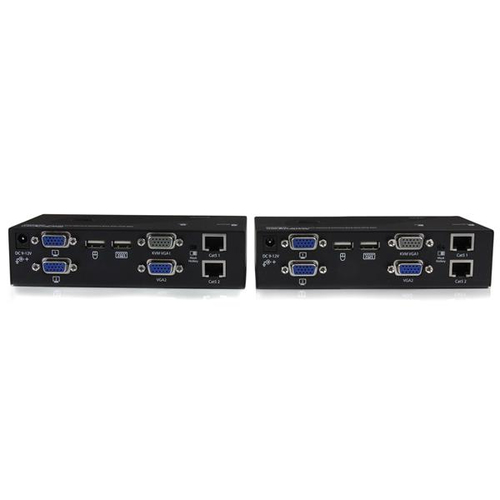

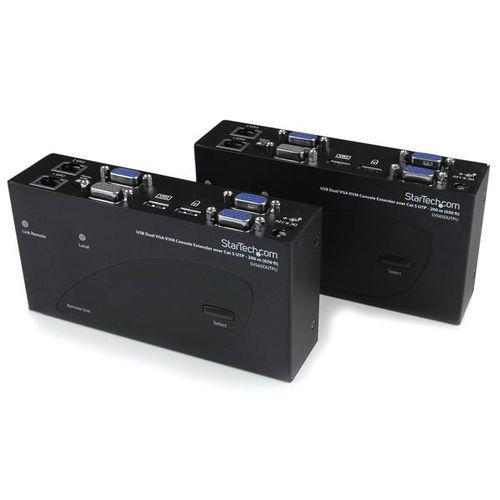

StarTech.com SV565DUTPU console extender

StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m


Brand
STARTECH
Product code
SV565DUTPU
SKU
EI208J61203TL
EAN/GTIN
0065030848237
  • Maximum transfer distance: 200 m
  • DC-in jack
  • Black
€448.14 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations

Technical details
Maximum transfer distance 200 m
Product colour Black
Sustainability certificates RoHS
Ports & interfaces
VGA (D-Sub) ports quantity 4
USB 2.0 ports quantity 12
RJ-45 ports quantity 2
DC-in jack Yes
Weight & dimensions
Width 80 mm
Depth 155 mm
Height 40 mm
Weight 535 g
Package width 239 mm
Package depth 367 mm
Package height 75 mm
Package weight 2.25 kg
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Packaging content
Cables included AC, KVM
Manual Yes
Logistics data
Harmonized System (HS) code 84733020
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
