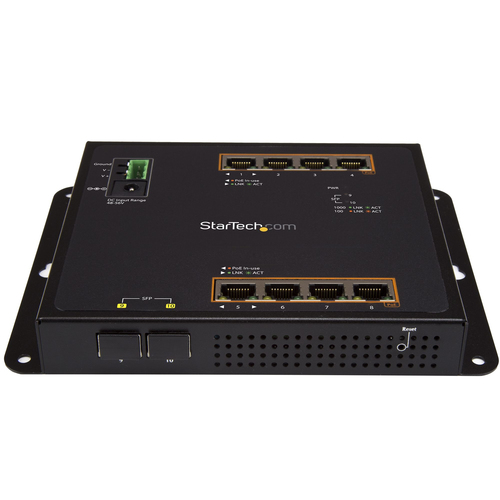

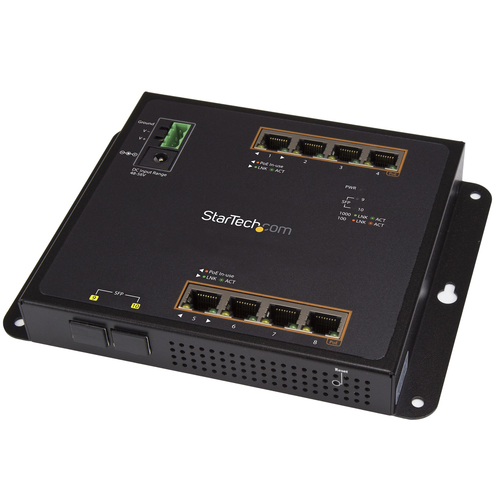

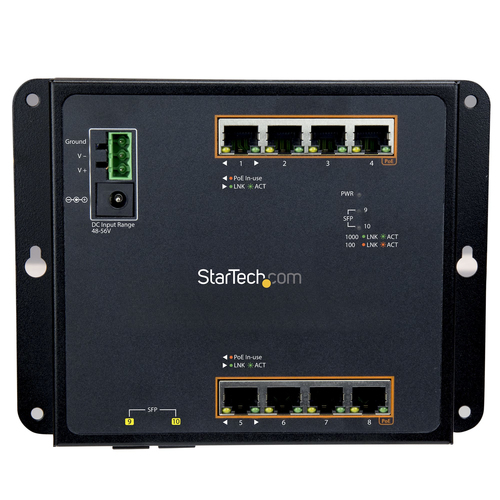

StarTech.com IES101GP2SFW network switch

StarTech.com Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C


Brand
STARTECH
Product code
IES101GP2SFW
SKU
Q2XCM1LGHM8HY
EAN/GTIN
0065030871198
  • POWER OVER ETHERNET: Industrial 8-port Gigabit PoE+ switch with 2 SFP ports, suitable for PoE devices such as cameras, sensors and WiFi APs using Cat5e or higher network cables; Up to 30W per PoE port with 200W total power budget for the switch
  • FLAT DESIGN: Compact steel enclosure allows front access for easy installation and troubleshooting; IP-30 / vibration / shock / free fall ratings & 6kV ESD; DIN rail or wall mounting options available with all hardware included; RJ45 dust caps included
  • FULL LAYER 2 MANAGEMENT CAPABILITIES: Built in web-based GUI / Telnet / SSH; This switch can be managed to configure features like Ports / VLAN / Link Aggregation / SNMP / QoS / Spanning Tree among others
  • TECH SPECS: 8 x RJ45; 2 x Open SFP slot (MSA Compliant); 48-56VDC power input; 10/100/1000 Mbps; MTBF 500,000+ hours; Redundant power inputs with terminal block kit or AC adapter (not included); IEEE 802.3af & IEEE 802.3at Compliant
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this 8 port Gigabit switch is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
€452.66 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 managementEasily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your networkThis versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Supports PoE+ for flexible useDual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).Wall-mountable with front accessWall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.Efficient Layer 2 managementThe switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.Rugged IP30 industrial designThis rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.Reliable connection for seamless network performanceWith support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support No
Full duplex Yes
Flow control support Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Spanning tree protocol Yes
Virtual LAN features Tagged VLAN
Data transmission
Store-and-forward Yes
Security
Access Control List (ACL) Yes
Design
Rack mounting No
Product colour Black
Housing material Steel
LED indicators Activity, Link
International Protection (IP) code IP30
Wall mountable Yes
Certification CE, FCC, RoHS
Performance
Maximum cable length 100 m
Buffer size 512 KB
Maximum data transfer rate 2000 Mbit/s
Mean time between failures (MTBF) 100000 h
Power
Input current 1 A
Input voltage 12 - 48 V
Power plug type Type M
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 200 W
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 90 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 178 mm
Depth 134 mm
Height 25 mm
Weight 618 g
Packaging data

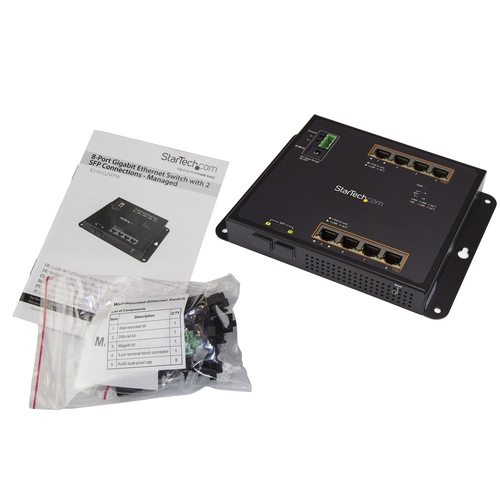

Quick start guide Yes
Terminal block included Yes
Package width 170 mm
Package depth 300 mm
Package height 90 mm
Package weight 900 g
Logistics data
Master (outer) case width 325 mm
Master (outer) case length 370 mm
Master (outer) case height 470 mm
Harmonized System (HS) code 85176990
Products per master (outer) case 10 pc(s)
Other features
Terminal block port Yes
