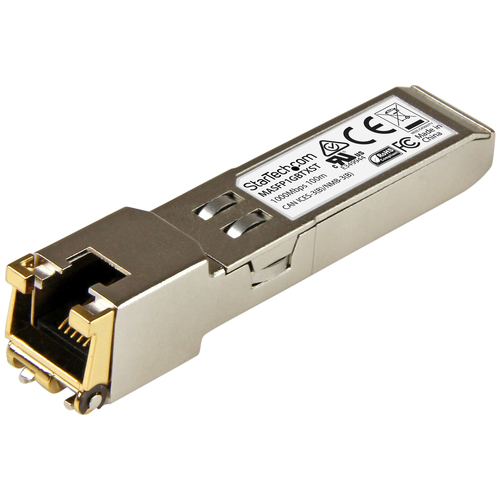

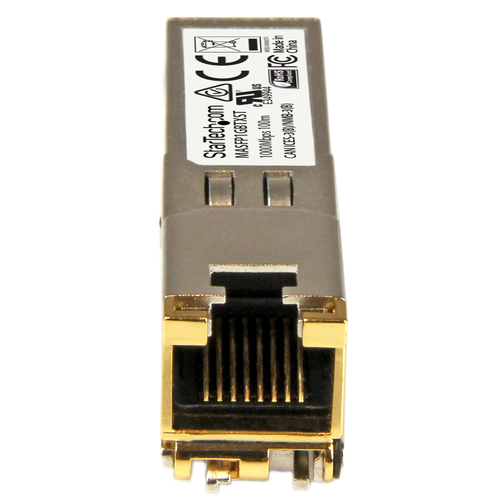

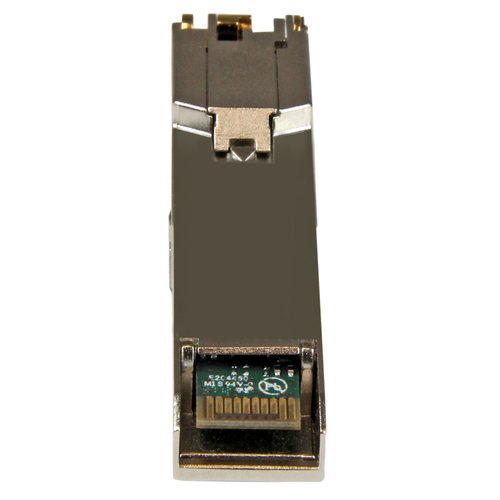

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250
- Brand
- STARTECH
- Product code
- MASFP1GBTXST
- SKU
- HCTKSD7PRHDJJ
- EAN/GTIN
- 0065030869461
- 100% CISCO MERAKI MA-SFP-1GB-TX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
- TECHNICAL SPECS: 10BASE-T / 1 Gbps / Copper / RJ-45 Connector / Distances up to 100m (328ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Product Info
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime WarrantyThe MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).Technical Specifications:• Maximum Data Transfer Rate: 1000 Mbps• Type: Copper• Connection Type: RJ45 Connector• Maximum Transfer Distance: 100 m (328 ft)• MTBF: 4,655,371 hours• Power Consumption: Less than 1.3 Watts• Digital Diagnostics Monitoring (DDM): NoThis SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | TX |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN (RJ-45) ports | 1 |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 21 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 118 mm |
| Package depth | 93 mm |
| Package height | 35 mm |
| Package weight | 51 g |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 305 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 205 mm |
| Products per master (outer) case | 36 pc(s) |
