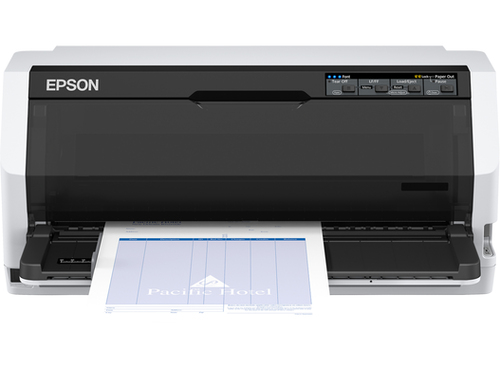

Epson LQ-690IIN dot matrix printer 360 x 180 DPI 487 cps
- Brand
- Epson
- Product code
- C11CJ82403A0
- SKU
- DD87HONYHF440
- High speed: Impressive print speed of 487 cps (10cpi) with 1+6 copies
- Quality: The 106 column capacity with 24 pins means greater quality
- Reliable: Combined power of print head life and MTBF of 20,000 hours
- Modern design: The black and white casing blends comfortably into any work environment
Product Info
Designed with productivity in mind, the LQ-690IIN is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.
Fast printing:
Print faster and more productively. The LQ-690IIN prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.
High ribbon yield:
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690IIN as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.
Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, and with its network capabilities, the LQ-690IIN is perfect for all your work requirements. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data.
Smart design:
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.
Printing | |
---|---|
Maximum resolution | 360 x 180 DPI |
Maximum printing width (columns) | 106 |
Colour | No |
Maximum print speed | 487 cps |
Maximum print speed (draft) | 366 cps |
Maximum print speed (LQ) | 121 cps |
Maximum number of copies | 7 copies |
Built-in barcodes | CODABAR (NW-7), Code 39, Code-128 Codabar Library, EAN128, EAN13, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
Character sets | ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8 |
Paper handling | |
Paper feed | Manual, Pull tractor |
Paper tray media types | Envelopes, Labels, Plain paper, Roll |
Continuous paper thickness range | 0.065 - 0.49 mm |
Label thickness range | 0.16 - 0.19 mm |
Multi-part paper thickness range | 0.12 - 0.49 mm |
Single sheet thickness range | 0.065 - 0.15 mm |
Features | |
Product colour | Black, White |
Buffer size | 128 KB |
Sound pressure level (printing) | 59 dB |
Country of origin | Indonesia |
Ports & interfaces | |
Standard interfaces | Ethernet, Parallel, USB 2.0 |
Cabling technology | 10/100Base-T(X) |
Endurance | |
Print head | 24-pin |
Print head life | 400 million characters |
Ribbon life | 10 million characters |
Mean time between failures (MTBF) | 20000 h |
Power | |
Power consumption (typical) | 38 W |
Power consumption (standby) | 3 W |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
System requirements | |
Windows operating systems supported | Yes |
Bundled software | Epson Status Monitor |
Weight & dimensions | |
Width | 480 mm |
Depth | 301 mm |
Height | 211 mm |
Weight | 6.8 kg |
