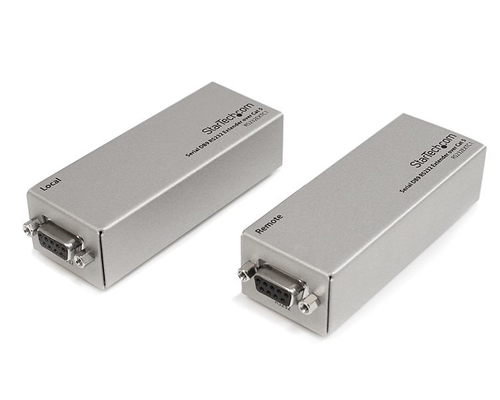

StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)
- Brand
- STARTECH
- Product code
- RS232EXTC1GB
- SKU
- PICS65DKVKIU4
- EAN/GTIN
- 0065030842396
- Extend RS232 up to 1000m / 3300ft
- Data transfer rates of up to 230 Kbps
- Compatible with all RS232 communications
- Employ existing Cat5, 5e, 6 or better Ethernet infrastructure to remotely connect serial devices
- Supports full-duplex data communication
- Compact design
- No driver software required for easy Plug-and-Play installation
Product Info
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cablingThe RS232EXTC1GB Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |
| Data transfer rate | 0.23 Mbit/s |
| Maximum transfer distance | 1000 m |
| Product colour | Silver |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Sustainability certificates | CE, RoHS |
| Plug and Play | Yes |
| Ports & interfaces | |

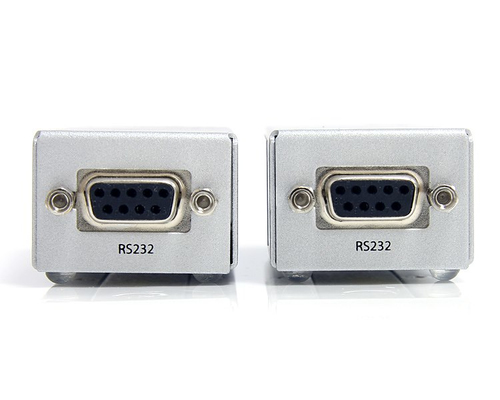

| RS-232 ports | 2 |

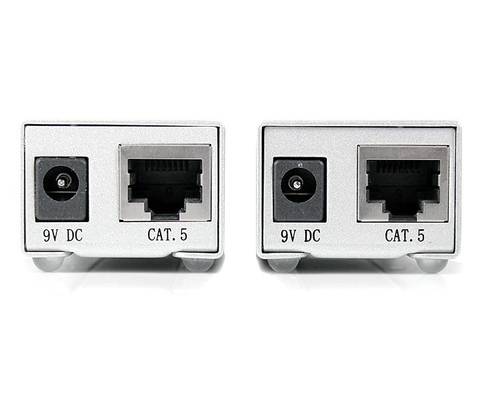

| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| Weight & dimensions | |
| Width | 34 mm |
| Depth | 92 mm |
| Height | 22 mm |
| Weight | 65 g |
| Package width | 57 mm |
| Package depth | 315 mm |
| Package height | 138 mm |
| Package weight | 1 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |

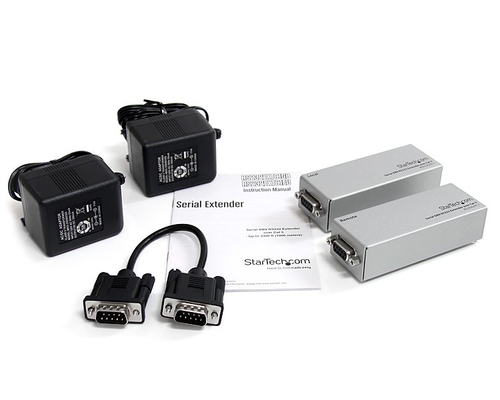

| Packaging content | |
| Cables included | Serial |
| Manual | Yes |
| AC adapter included | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.055 A |
| Output voltage | 9 V |
| Output current | 0.3 A |
| Power plug type | Type M |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case width | 326 mm |
| Master (outer) case length | 328 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 10 pc(s) |
