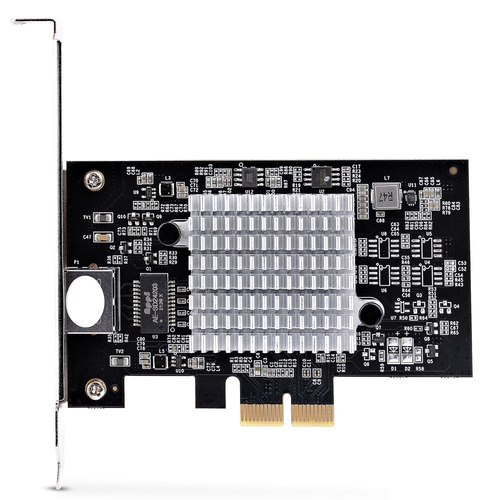

StarTech.com ST10GSPEXNB2 network card
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
- Brand
- STARTECH
- Product code
- ST10GSPEXNB2
- SKU
- B23XBW032DR78
- EAN/GTIN
- 0065030897549
- NETWORK ADAPTER FOR PC: This 10 GbE capable PCIe network adapter card provides high-speed data transfer rates for desktops/servers leveraging an existing Cat5e, Cat6, or Cat6a cabling infrastructure
- SPECIFICATIONS: Multiple Speeds NIC 10/5/2.5/1Gbps and 100/10Mbps - 10GBASE-T and NBASE-T - 1x RJ45 Port - PCIe 3.0 x2 - Marvell AQC113CS - 16K Jumbo Frame - VLAN - PXE Boot - EEE - Full-Height and Low-Profile Brackets Included
- COMPATIBILITY: The network card for PC is compatible with Windows, Windows Server, and Linux - The variable speed options and included low profile bracket widen the compatibility of the PCIe network card with current and legacy devices
- MULTI-GIGABIT CONNECTIVITY: The network interface card auto negotiates speed and supports 2.5/5 Gbps network speeds on Cat5e cabling, and 10 Gbps on Cat6/6a - The Ethernet network card supports IP/TCP/UDP checksum offload, secure boot, PTP, and AVB
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 10Gb network card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
€182.59
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T. Internal. Connectivity technology: Wired, Host interface: PCIe, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black

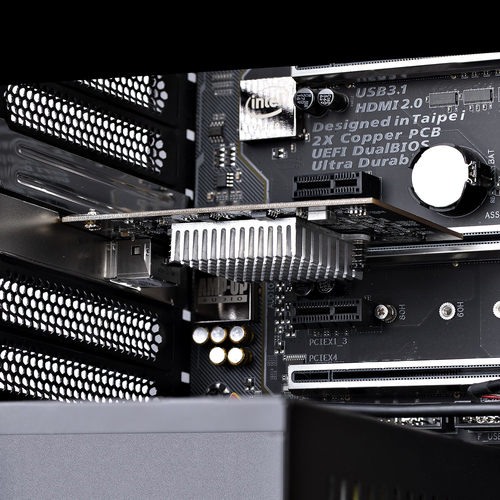

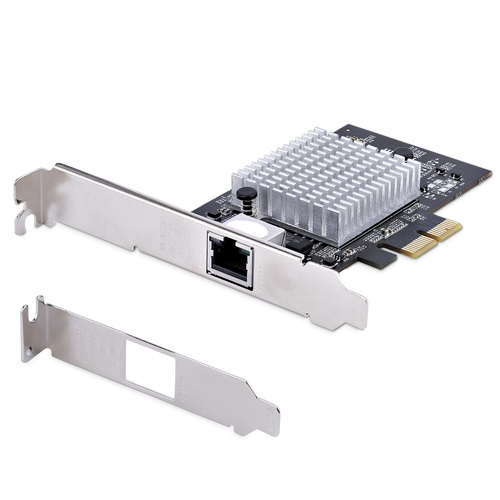

Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CSInstall this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Juniper®.Increased Network SpeedsThis PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.Enhance Existing HardwareThe Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCIe |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Design | |
| Component for | PC |
| Product colour | Black |
| Internal | Yes |
| LED indicators | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Weight & dimensions | |
| Width | 107 mm |
| Depth | 121 mm |
| Height | 22 mm |
| Weight | 70 g |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 145 mm |
| Package height | 35 mm |
| Package weight | 120 g |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 445 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 40 pc(s) |
