StarTech.com 15.2m (50ft) Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M
- Brand
- STARTECH
- Product code
- DP14A-15M-DP-CABLE
- SKU
- LS441CO1ZY88P
- EAN/GTIN
- 0065030899970

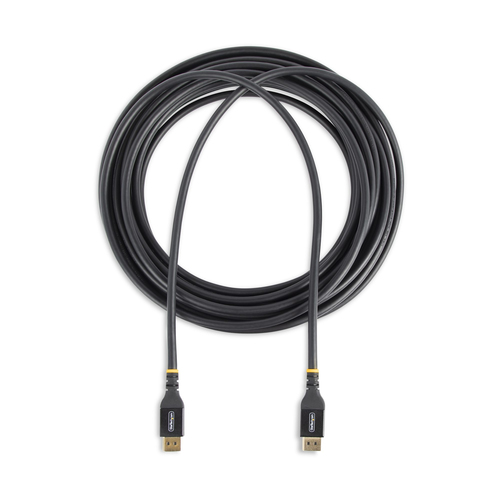

- DESIGNED FOR LONG RANGE: 50ft (15.2m) Active DisplayPort 1.4 Cable delivers 8K video beyond the length of passive cables; Integrated self-powered signal booster enables consistent performance without the need for a DP booster or external power source
- THIRD PARTY CERTIFIED: The Active DP 1.4 Cable is VESA certified for seamless compatibility with DisplayPort devices and reliable performance over longer lengths; When using certified cables, full-feature DisplayPort compatibility is guaranteed

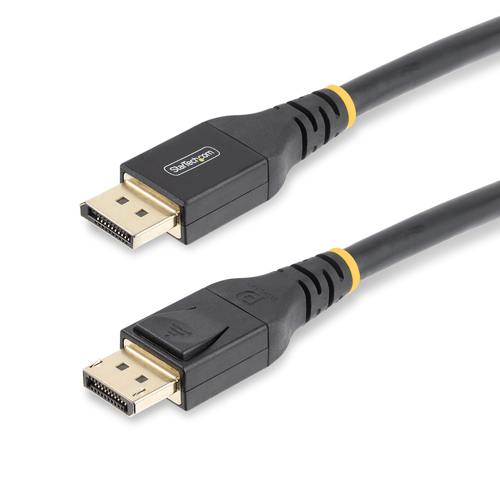

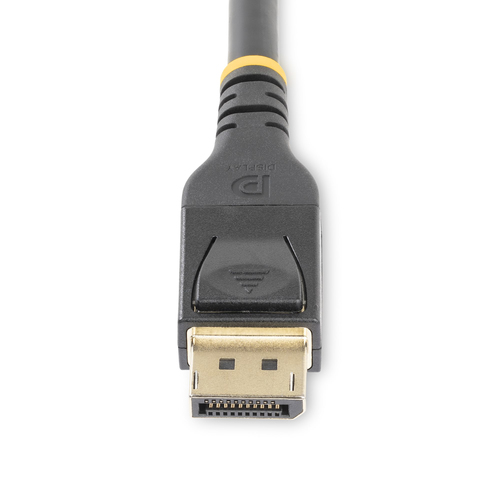

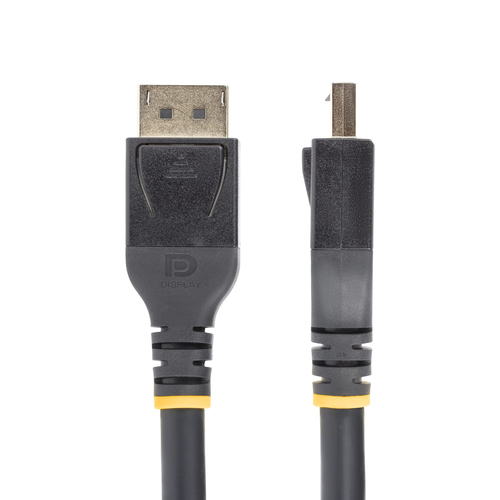

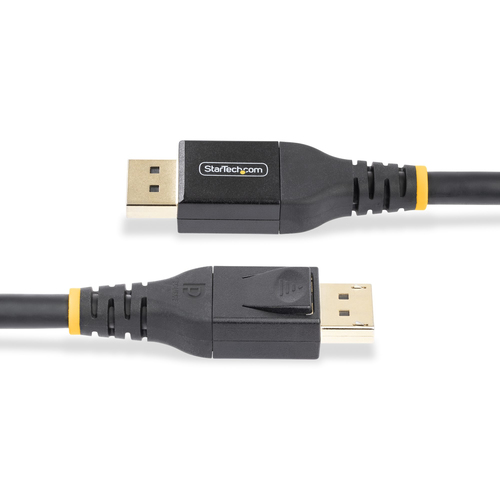

- DURABLE CONSTRUCTION: Latching gold-plated connectors with robust strain reliefs to prevent accidental disconnects; TPE outer cable jacket is flexible, non-toxic, halogen-free, and RoHS compliant; Shielded cable and connector for enhanced EMI protection

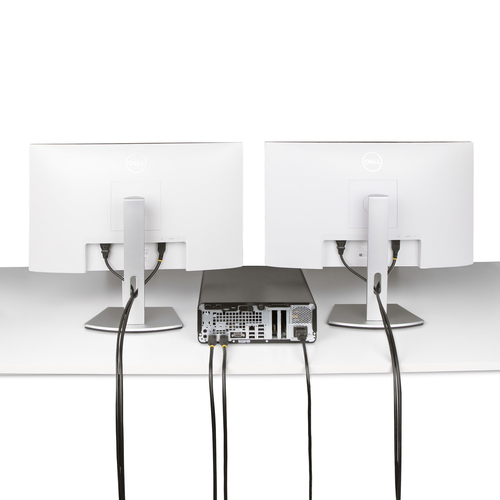

- VERSATILE INSTALLATION: This active DP 1.4 cable is unidirectional, with conveniently labeled connectors for source and display; 7.5mm Cable O.D. is identical to passive cables and improves flexibility; VW-1 Fire rated jacket enhances flame resistance
- SPECS: Black; 15.2m (50ft); Unidirectional cable; DP8K supports HBR3/HDR10/MST/DSC 1.2/HDCP 2.2; 8K 60Hz, 4K 120Hz, 1440p 240Hz w/DSC; Backward Compatible w/ DP 1.3/1.2; Cable O.D.: 7.5mm; Gold-Plated Connectors; Rugged TPE Jacket w/Aluminum Mylar Shield
Product Info

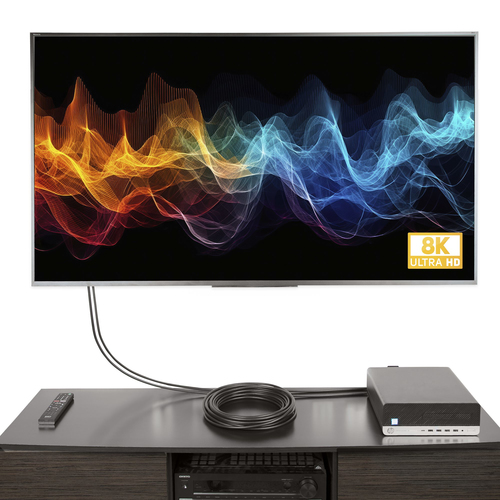

Facilitate a longer 8K connection without requiring an external power sourceConnect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this VESA-Certified Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 50ft (15.2m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.VESA-Certified DP8KFor seamless performance and compatibility between DisplayPort-enabled devices, the Active DisplayPort Cable is VESA Certified, for guaranteed DP 1.4 support and backward compatibility with DP 1.3/1.2Durable DesignThis long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.Supported DisplayPort 1.4 Features:This 8K DisplayPort cable supports all DP 1.4 features:• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display• HDCP 2.2 support• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps• High Dynamic Range 10 (HDR10)• Display Stream Compression 1.2 (DSC 1.2)• Multi-Stream Transport (MST) for daisy-chaining multiple monitors• 32 Uncompressed Digital Audio Channels• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versionsThe Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This VESA-certified DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.The StarTech.com Advantage
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum refresh rate | 144 Hz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2 |
| Cable length | 15.3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Cable material | Copper |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Thermoplastic elastomer (TPE) |
| AWG wire size | 24/28 |
| Data transfer rate | 25.92 Gbit/s |
| Bandwidth | 32400 MB/s |
| HBR3 support | Yes |
| Multi-Stream Transport (MST) | Yes |
| Fire-resistance rating | VW-1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
| Packaging data | |
| Cable diameter | 7.5 mm |
| Package width | 460 mm |
| Package depth | 350 mm |
| Package height | 150 mm |
| Package weight | 1 kg |
| Logistics data | |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 8 pc(s) |
