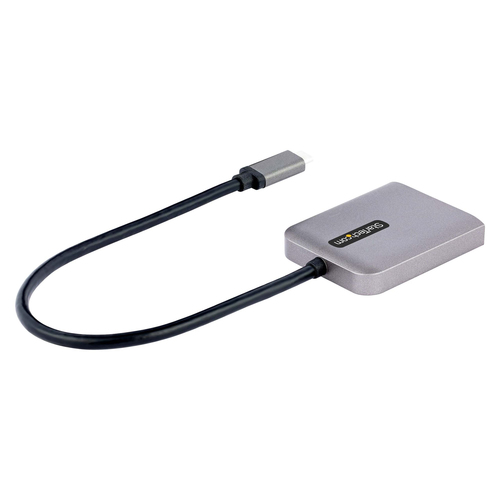

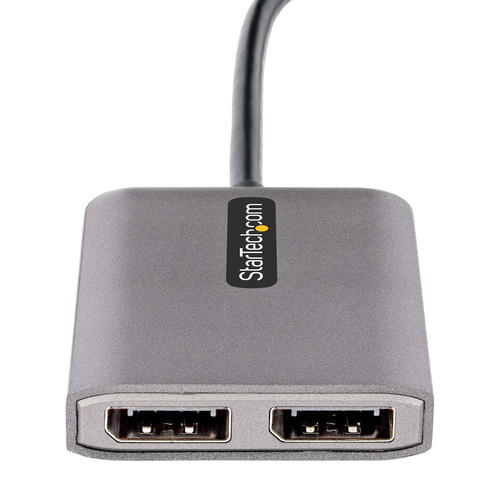

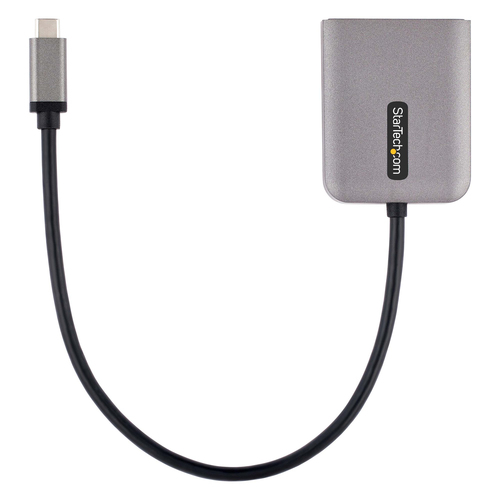

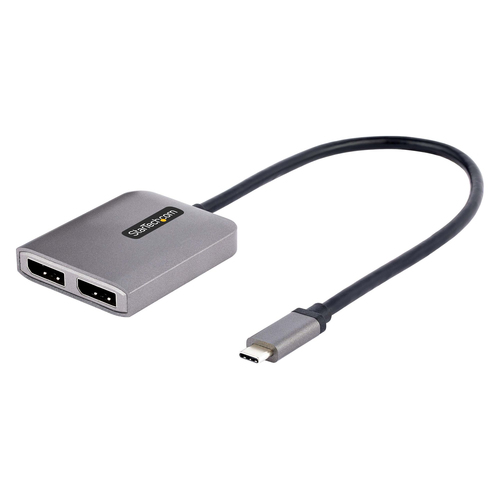

StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only
- Brand
- STARTECH
- Product code
- MST14CD122DP
- SKU
- KOLBA9SSMLKPK
- EAN/GTIN
- 0065030884372

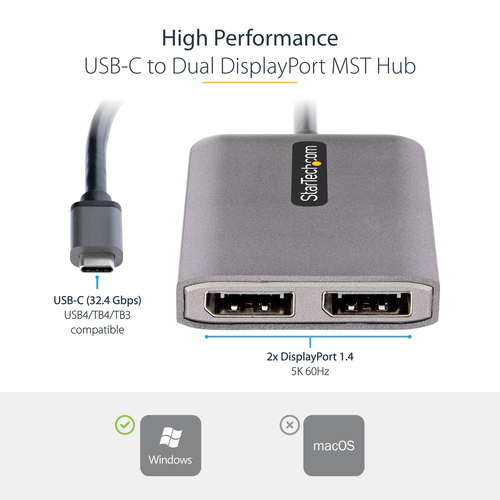

- MULTI-MONITOR CONFIGURATION: USB Type-C to Dual DisplayPort MST Hub/Splitter drives up to two 5K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Dual 5K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU

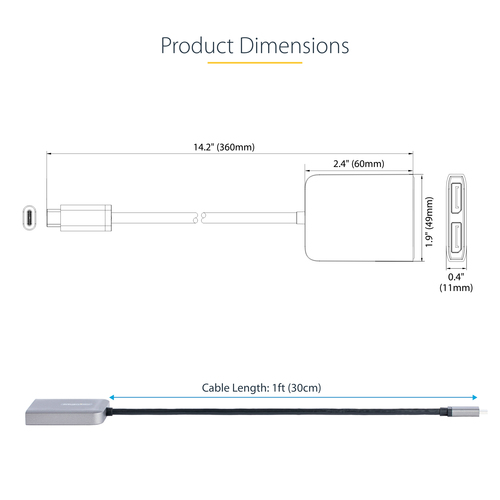

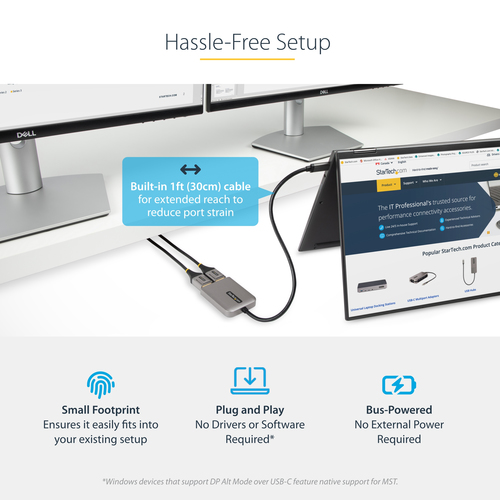

- EXTRA LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual DisplayPort Adapter
Product Info

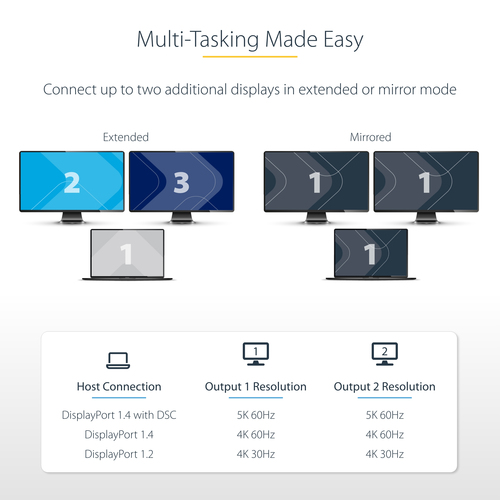

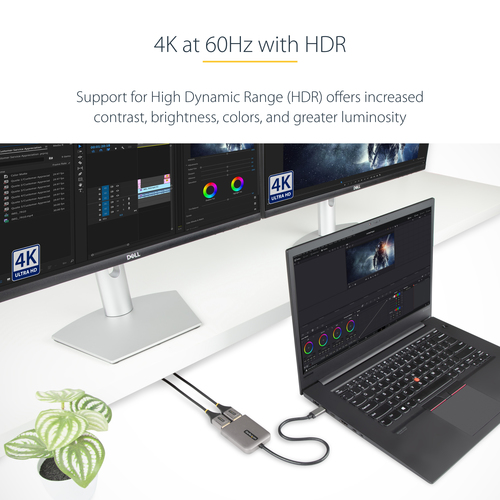

Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitorsThis USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.4K at 60Hz with HDRMulti-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.Host ConnectionMaximum ResolutionOutput 1Maximum ResolutionOutput 2Example HostProcessor/GraphicsDisplayPort 1.4 with DSC5K 60Hz5K 60Hz*Intel 11th Gen with DSCIntel 12th Gen Processors & LaterDiscrete AMD & Nvidia GPU's that support DSCDisplayPort 1.44K 60Hz4K 60HzIntel 10th Gen (Ice Lake Only)Intel 11th Gen Processors & LaterDiscrete AMD and Nvidia GPU's that support DP 1.4DisplayPort 1.24K 30Hz4K 30HzIntel 8th - 10th Gen Processors & LaterMultitasking Made EasyConfigure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.Hassle-Free SetupWindows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.The StarTech.com Advantage
| Performance | |
|---|---|

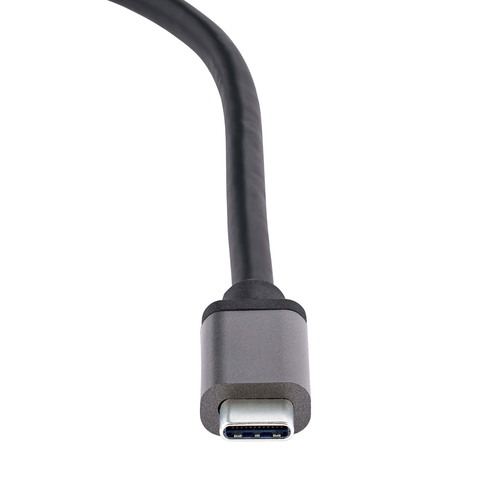

| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| High Dynamic Range (HDR) supported | Yes |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 2 |
| DisplayPorts quantity | 2 |
| HDCP | Yes |
| HDCP version | 2.2 |
| DisplayPort version | 1.4 |
| Maximum resolution | 4096 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | Synaptics - VMM5220, VIA/VLI - VL103 |
| Design | |
| Product colour | Grey |
| Housing material | Plastic |
| USB cable length | 0.3 m |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 108.8 g |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
