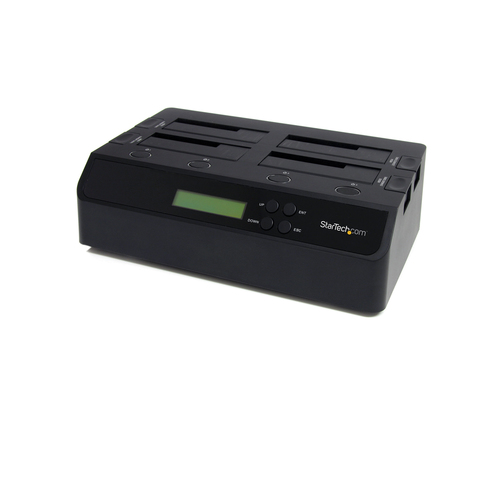

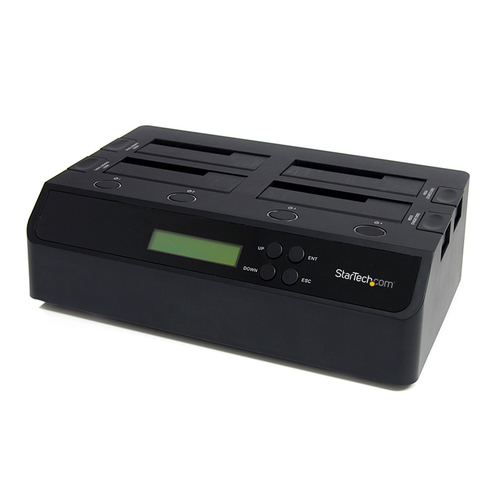

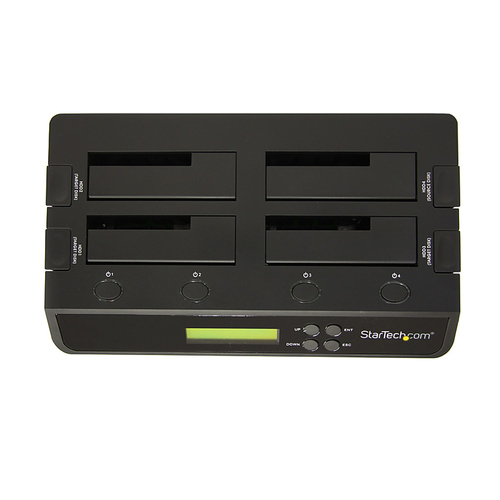

StarTech.com 4 Bay USB 3.0 eSATA to SATA Standalone 1:3 HDD Hard Drive Duplicator Dock
- Brand
- STARTECH
- Product code
- SATDOCK4U3RE
- SKU
- BKO4PCDBJQ1IK
- DUPLICATE, ERASE AND DOCK: This 4-bay external cloner and drive eraser/ wiper performs standalone cloning or erasing of 2.5/3.5"" SATA drives; Hard disk docking station for quick access to your 2.5/3.5"" SATA drives over USB or eSATA

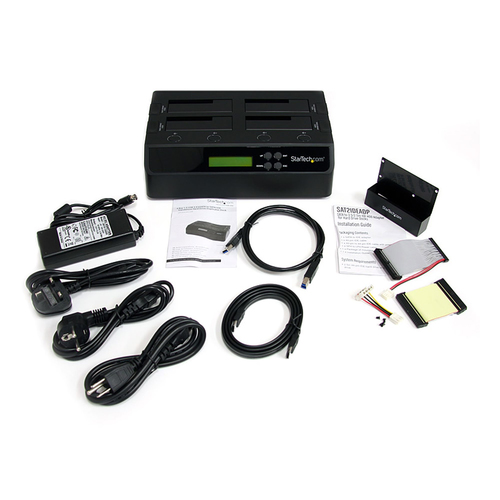

- DRIVE COMPATIBILITY: Works with 2.5/3.5"" SATA and IDE SSDs/HDDs of any capacity; Included IDE cable adapters support 40-pin/3.5in and 44-pin/2.5in drives; OS Independent; Hardware includes eSATA and USB-A cables and Universal Power Adapter
- DUPLICATION AND ERASE MODES: Up to 4.2 GB/min Standalone sector-by-sector cloning; Target disk must be equal/larger than the source disk; Supports Quick Erase & Secure Erase (NIST SP 800-88 Rev 1 Purge); Disk mount / File transfer / Backup / Recovery tool
- LCD MENU DISPLAY: Use push button menu navigation to select duplication and erase modes, and check drive info; USB 3.2 Gen 1 (5 Gbps) or eSATA (3 Gbps) Host Device Connection (optional); Top-Loading w/ Drive Doors & Eject Buttons; Multi-function LEDs
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this hard drive copier and wiper tool is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
Product Info

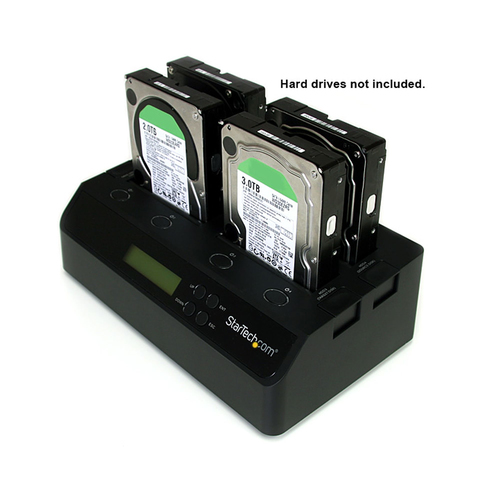

Duplicate one SATA Hard Drive onto three Hard Drives simultaneously
The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.
Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.
Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP).
The StarTech.com Advantage

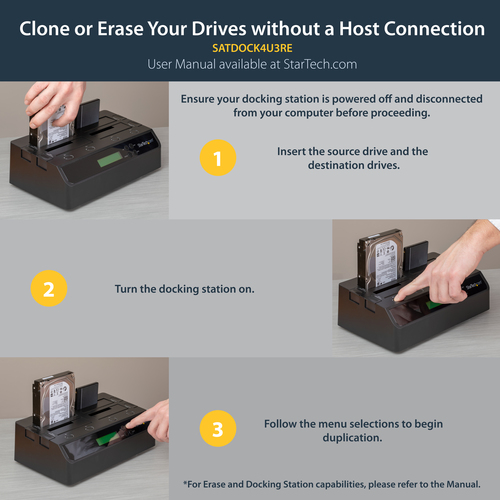

- Create 3 exact copies of a source SATA drive simultaneously, without having to connect to a computer

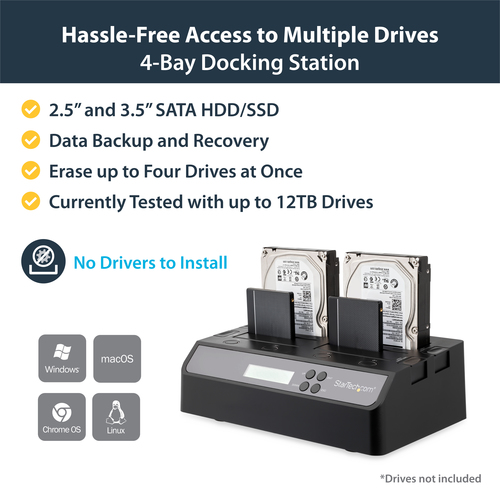

- Access up to 4 SATA hard drives simultaneously over a single USB 3.0 or eSATA connection
- Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drive type
| Technical details | |
|---|---|
| Product type | HDD duplicator |
| Number of simultaneous copies | 3 copies |
| Interface | USB/eSATA |
| Duplicator operating modes | Copy |
| USB connector type | USB Type-B |
| Product colour | Black |
| Housing material | Plastic |
| Maximum supported storage capacity | 16 TB |
| Plug and Play | Yes |
| Chipset | JMicron - JMB394 + JMS539 |
| Number of fans | 2 fan(s) |
| Fan diameter | 6 cm |
| Port multiplier | Yes |
| LED indicators | Activity, Power |
| Sustainability certificates | RoHS |
| Hard drive | |
| Supported HDD sizes | 2.5,3.5" |
| Supported HDD interfaces | Serial ATA, Serial ATA II |
| Software | |
| Compatible operating systems | Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, Linux |
| Power | |
| Power consumption (typical) | 78 W |
| AC input voltage | 110-240 V |
| Output voltage | 12 V |
| Output current | 6.5 A |
| Included power plug types | EU, NA, UK |
| Operational conditions | |
| Operating relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 80 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |

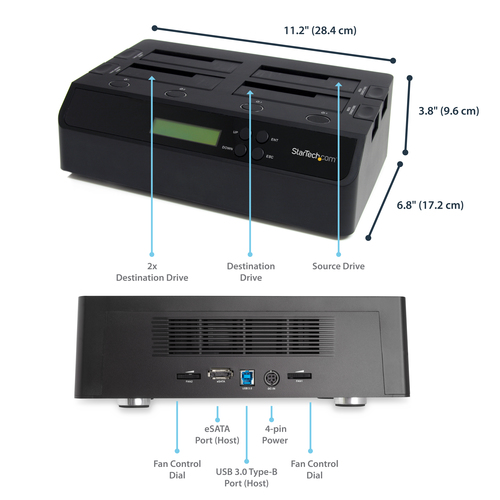

| Dimensions (WxDxH) | 285 x 170 x 94 mm |
| Weight | 1.1 kg |
| Display | |
| Display | LCD |
| Packaging data | |
| Package weight | 2.73 kg |
| Package height | 215 mm |
| Package width | 170 mm |

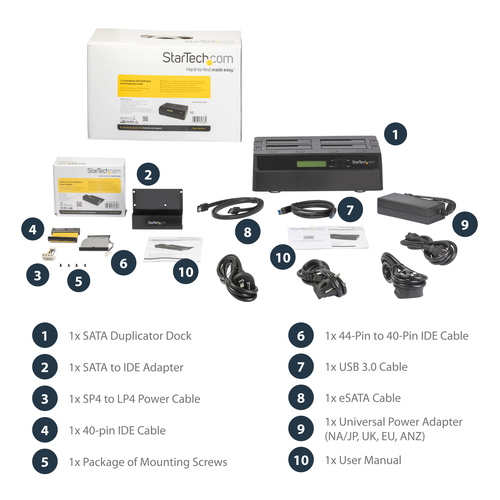

| Cables included | SATA, USB, eSATA |
| AC adapter included | Yes |
| Manual | Yes |
| Package depth | 343 mm |
| Certificates | |
| Certification | CE |
| Logistics data | |
| Master (outer) case length | 368 mm |
| Master (outer) case width | 364 mm |
| Master (outer) case height | 475 mm |
| Products per master (outer) case | 4 pc(s) |
