StarTech.com Dual-Bay USB 3.0 / eSATA to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading
- Brand
- STARTECH
- Product code
- SDOCK2U33EB
- SKU
- 4S7F69MOU5XMI
- EAN/GTIN
- 0065030855891
- HARD DRIVE DOCKING STATION: This 2-bay hard drive dock enables instant access to 2.5/3.5" SATA drives for file backup, disk imaging, or data transfer over USB 3.2 Gen 1 (5 Gbps) or eSATA - Toolless design facilitates quick drive hot-swapping

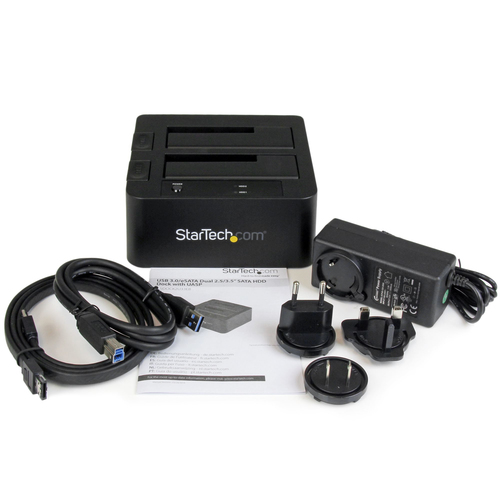

- DRIVE COMPATIBILITY: Supports 2.5/3.5" SATA HDDs and SSDs of any capacity - OS independent - Compatible w/ SATA I/II/III - IDE adapter (SAT2IDEADP) sold separately - Includes 3ft (1m) eSATA and USB-A cables and universal power adapter
- PERFORMANCE: Independent eject buttons for each bay enables hot-swapping of an idle drive while the other bay is in use - Drive bays with 15,000 insertion/removal cycle rating for maximum durability
- SPECS: 2-Bay Hard Drive Dock - SATA I/II/III - eSATA or USB 3.2 Gen 1 (5 Gbps) Host Connection - Toolless Design - Hot-Swappable Drive Bays - Top-Loading/Toaster-Style with Eject Buttons - LED Activity Lights
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this Dual-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
Product Info
External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) / eSATA to SATAThe SDOCK2U33EB Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds -- up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.The SDOCK2U33EB is backed by a StarTech.com 2-year warranty and free lifetime technical support.Improved Performance with UASPUASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing UASP also shows an 80% reduction in required processor resources.Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.The StarTech.com Advantage
| Hard drive | |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 8 TB |
| Ports & interfaces | |

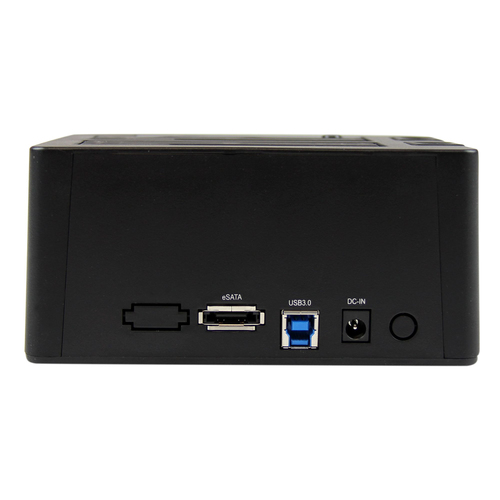

| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
| Features | |
| Maximum data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Plastic |
| LED indicators | Activity, Power |
| Chipset | JMicron - JMS562 |
| Certification | CE, FCC |
| Power | |
| AC input voltage | 100-240 V |
| Input current | 1.5 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 143 mm |
| Height | 70 mm |
| Weight | 524 g |
| Software | |
| Windows operating systems supported | Windows 2000, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | eSATA, USB |
| Manual | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Other features | |
| Standard interfaces | eSATA, USB 3.2 Gen 1 (3.1 Gen 1) |
| Packaging data | |
| Package width | 123 mm |
| Package depth | 185 mm |
| Package height | 210 mm |
| Package weight | 1.1 kg |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 461 mm |
| Master (outer) case length | 618 mm |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 10 pc(s) |
