StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
- Brand
- STARTECH
- Product code
- SV431DDVDUA
- SKU
- 5QY7NW1FMTF5T
- EAN/GTIN
- 0065030835701
- Black
- Number of computers controlled: 4
- Keyboard port type: USB Mouse port type: USB Video port type: VGA/DVI-I
- 1920 x 1200 pixels
- Housing material: Steel
- Hot keys
- 18 W External power adapter
Product Info
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA/DVI-I |
| DVI-I ports quantity | 5 |
| VGA (D-Sub) ports quantity | 5 |

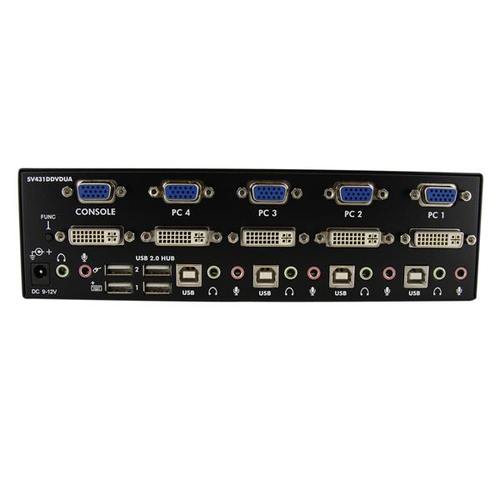

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) |
| Console USB ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 140000 h |
| Certification | CE, FCC, UL, REACH |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 163 mm |
| Height | 60 mm |
| Weight | 1.3 kg |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 249 mm |
| Package height | 86 mm |
| Package weight | 1.8 kg |

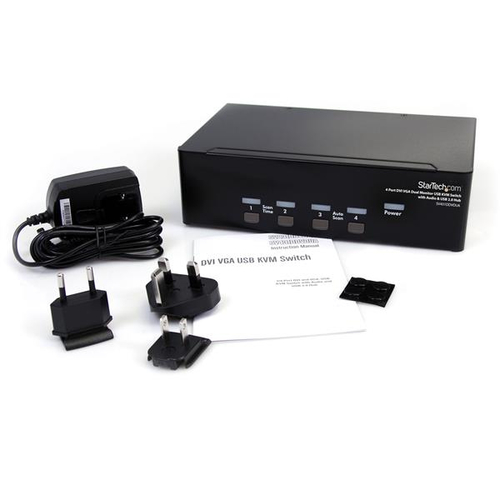

| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Other features | |
| IP control | No |
