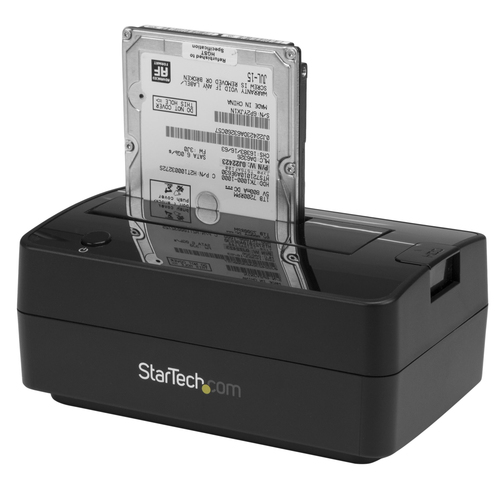

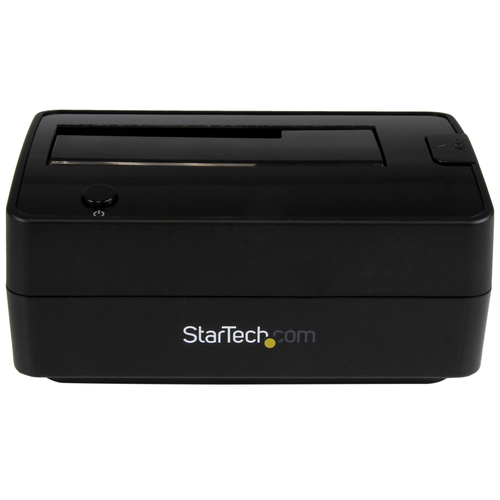

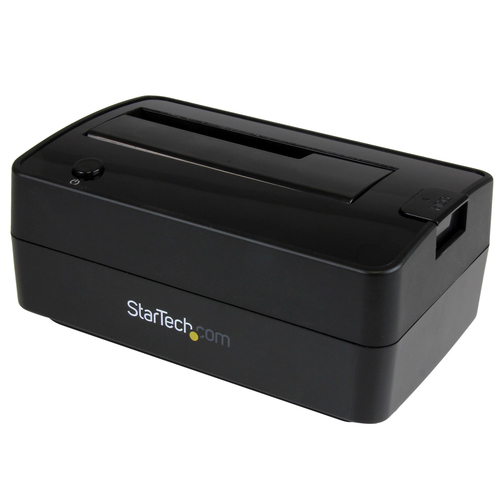

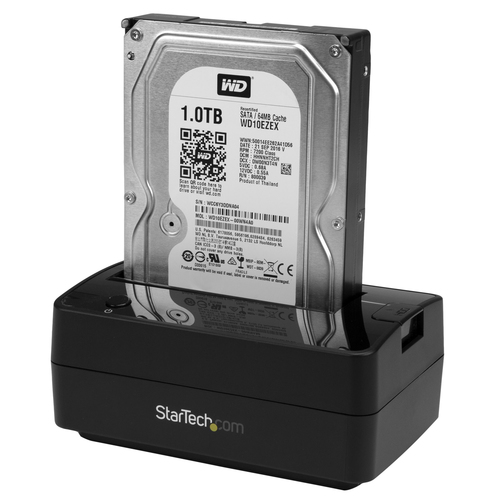

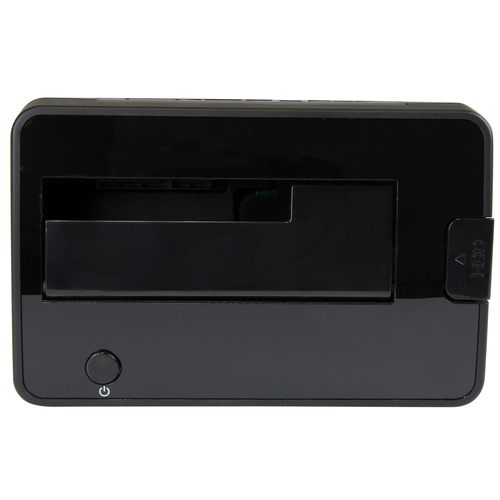

StarTech.com SDOCKU313E storage drive docking station

StarTech.com Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay


Brand
STARTECH
Product code
SDOCKU313E
SKU
2QAV2C6JDUTGR
EAN/GTIN
0065030863544
  • HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 2 (10 Gbps) or eSATA
  • DRIVE COMPATIBILITY: Supports a 2.5/3.5" SATA HDD/SSD of any capacity; 4Kn Compatible; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately; Includes 3.3ft (1m) eSATA, USB-A and C cables
  • PERFORMANCE: Get maximum performance from your SATA III drive with a 10 Gbps USB 3.2 or 6 Gbps eSATA host connection. Built-in SATA controller with upgradeable firmware; Backwards compatible with prior SATA & USB versions; No software / drivers required
  • SPECS: Single-Bay Hard Drive Dock; SATA I/II/III with TRIM; eSATA (6 Gbps) or USB 3.2 Gen 2 (10 Gbps) Host Connection; Toolless Design; Top-Loading Drive Bay with Eject Button; Power and Activity LEDs; Includes 3.3ft (1m) eSATA, USB-A and C cables
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
€76.78 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) / eSATA to SATAConnect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.Supports USB 3.1 Gen 2 and eSATA for flexible useIdeal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.Top-loading design for easy drive accessThe dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.Convenient compatibilityThe single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.The docking station is also UASP compatible, for enhanced performance.The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Hard drive
Storage media type HDD, SSD
Storage drive interface Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported 2.5,3.5"
Number of storage drives supported 1
Maximum storage capacity 6 TB

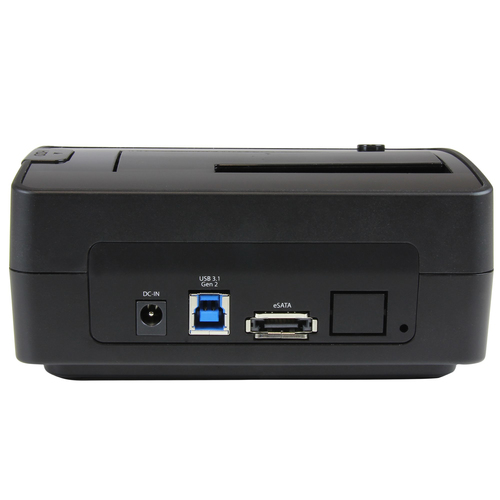

Ports & interfaces
Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-B
eSATA ports quantity 1
DC-in jack Yes
Features
Maximum data transfer rate 10 Gbit/s
Product colour Black
Material Plastic
Hot-swap Yes
Plug and Play Yes
LED indicators Activity, Power
UASP support Yes
Chipset ASMedia - ASM1351
Certification CE, FCC, REACH
Cooling
Built-in fan No
Power
AC input voltage 110-240 V
Input current 0.6 A
Output voltage 12 V
Output current 2 A
Power plug type Type M
Weight & dimensions
Width 93 mm
Depth 145 mm
Height 63 mm
Weight 410 g

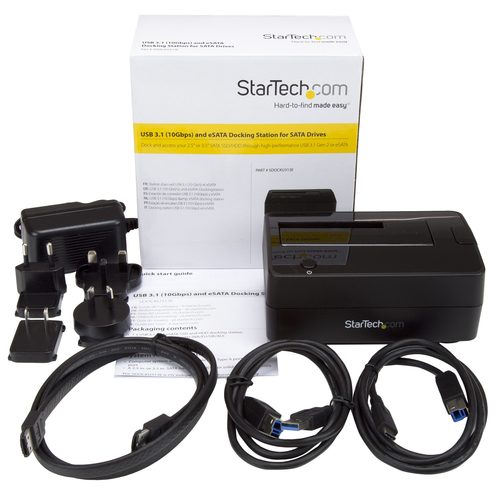

Packaging content
AC adapter included Yes
Cables included USB, eSATA
Included power plug types AU, EU, NA, UK
Quick installation guide Yes
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 20 - 80%
Packaging data
Package width 161 mm
Package depth 171 mm
Package height 91 mm
Package weight 862 g
Technical details
Sustainability certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
Master (outer) case width 382 mm
Master (outer) case length 484 mm
Master (outer) case height 184 mm
Products per master (outer) case 10 pc(s)
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
