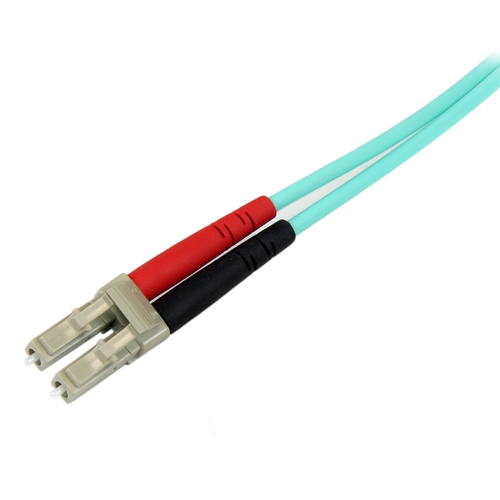

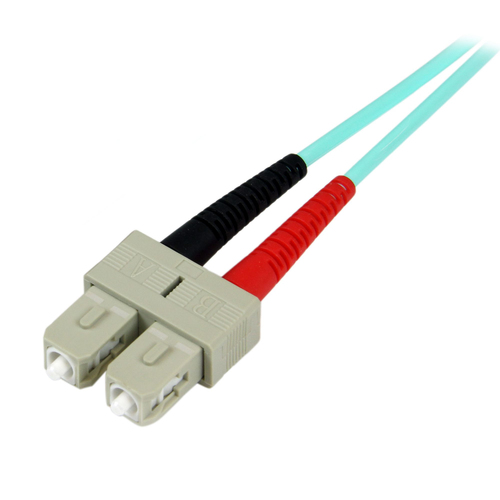

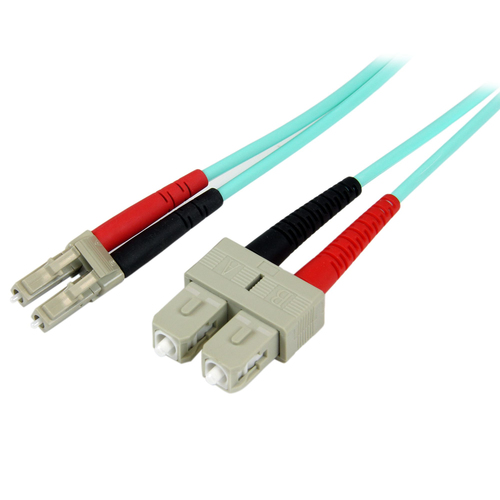

StarTech.com 1m (3ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord
- Brand
- STARTECH
- Product code
- A50FBLCSC1
- SKU
- KRBLQ8C57HL3L
- EAN/GTIN
- 0065030827188
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/SC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/SC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 1m (3.3ft); Color: Aqua (OM3); LC/SC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Product Info
Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment, this high speed 10 Gigabit Multimode Duplex Fiber Cable is terminated with LC and SC connectors, and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments, A50FBLCSC1 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire – making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.The StarTech.com Advantage
| Features | |
|---|---|
| Cable length | 1 m |
| Connector 1 | LC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Fibre optic type | OM3 |
| Product colour | Turquoise |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850 nm |
| Data transfer rate | 10 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Technical details | |
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 26 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 26 mm |
| Package weight | 35 g |
| Logistics data | |
| Master (outer) case width | 352 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 478 mm |
| Master (outer) case height | 314 mm |
| Products per master (outer) case | 320 pc(s) |
