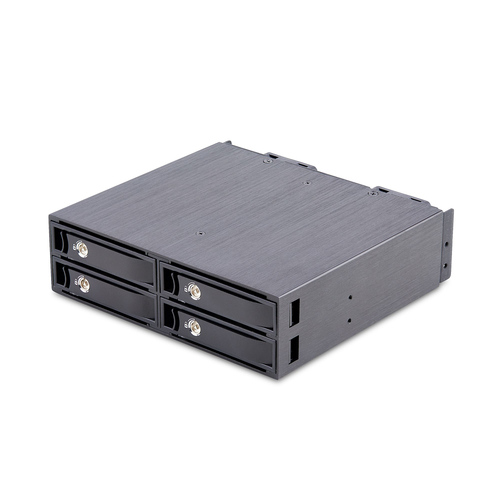

StarTech.com 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays - Backplane with Fans
- Brand
- STARTECH
- Product code
- 4U2525-SAS-BACKPLANE
- SKU
- HIVVR8C8I7L5E
- EAN/GTIN
- 0065030900133
- 4-BAY BACKPLANE: Add four U.2 (SFF-8639) NVMe drive bays to computer; Supports 7mm to 15mm 2.5" NVMe SSDs; Up to 32Gbps per drive with individual Mini-SAS SFF-8643 ports; Fits into a 5.25" bay; Hot swapping requires PCIe hot swap support from the host

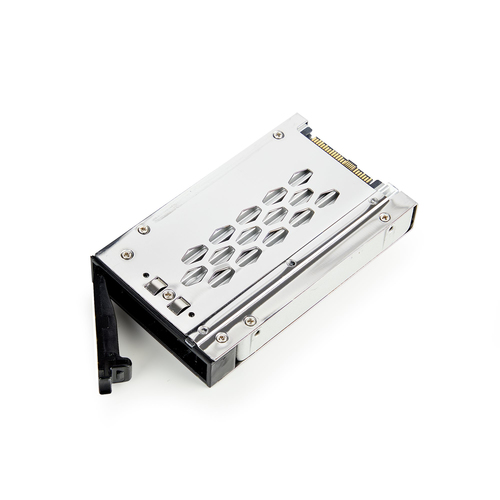

- SECURE DESIGN: Lockable drive trays/caddies (2x keys incl.) keep the drives safe while adding an extra layer of security, helping to prevent accidental hot-swaps; Aluminum body aids heat dissipation; Extra drive trays sold separately (SATSASTRX25)

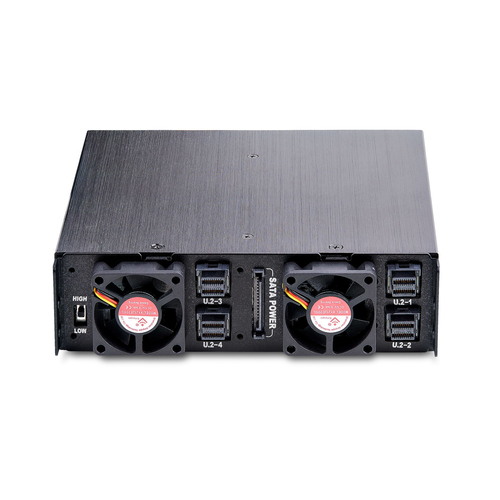

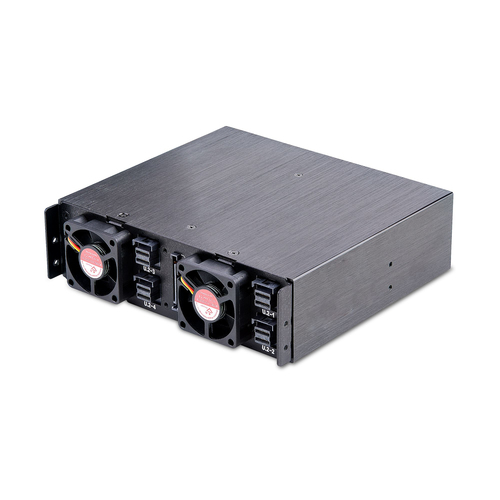

- WELL VENTILATED: Quad U.2 mobile rack with four perforated drive trays/caddies, two rear blower fans and front air vents keep drives cool for optimal performance; Rear fan switch enables the adjustment of drive cooling fans between high and low settings
- WIDE COMPATIBILITY: Compatible with storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), and mdraid/mdadm (Linux); Requires no drivers or software and works with any operating system; Supports U.2 NVMe Drives only

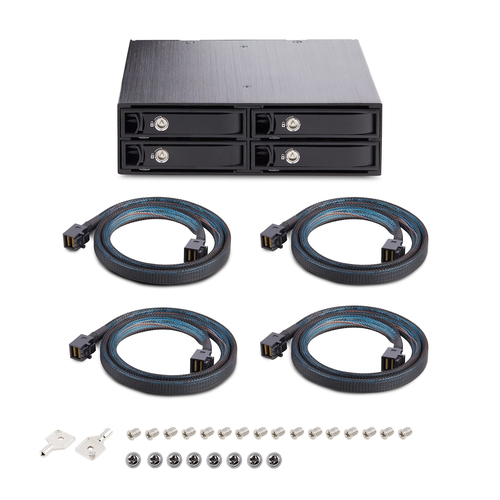

- HASSLE-FREE SETUP: Includes 4x 2ft (61cm) Mini-SAS HD cables and uses a single SATA Power connector from the desktop/server power supply for a rapid installation; Drive and backplane mounting screws included; LEDs for individual drive status and activity
Product Info

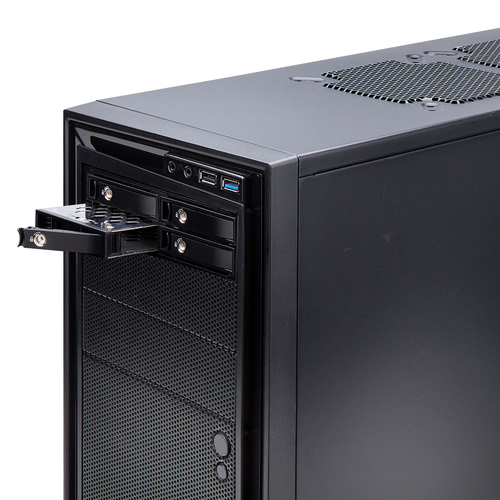

Install four 2.5in U.2 (SFF-8639) NVMe drives into one 5.25in bay, with removable drive traysThis 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.Secure DesignEnhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity.*Hot swap support is dependent on host computer PCIe hot swap capability.Well-VentedThe Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.Hassle-Free SetupThis mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.The StarTech.com Advantage
| Features | |
|---|---|
| Size (imperial) | 13.3 cm (5.25") |
| Type | Storage drive tray |
| Number of SSDs supported | 4 |
| SSD form factor | U.2 |
| Product colour | Black |
| Material | Aluminium |
| Number of cycles | 500 |
| Supported storage drive heights | 7,9.5,12.5,15 mm |
| Hot-swap | Yes |
| Airflow (imperial) | 2.47 cfm |
| Noise level | 21.3 dB |
| Number of fans | 2 fan(s) |
| Fan diameter | 3.5 cm |
| Data transfer rate | 32 Gbit/s |
| LED indicators | Yes |
| Key lock | Yes |
| Bearing type | Sleeve bearing |
| Mean time between failures (MTBF) | 30000 h |
| Ports & interfaces | |
| Port multiplier | No |
| Packaging data | |
| Package width | 212 mm |
| Package depth | 180 mm |
| Package height | 133 mm |
| Package weight | 1.1 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Cables included | MiniSAS |
| Screws included | Yes |
| Number of lock keys included | 2 pc(s) |
| Number of screws | 24 |
| Operational conditions | |
| Storage temperature (T-T) | 0 - 55 °C |
| Operating temperature (T-T) | -20 - 55 °C |
| Operating relative humidity (H-H) | 5 - 65% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 445 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 200 mm |
