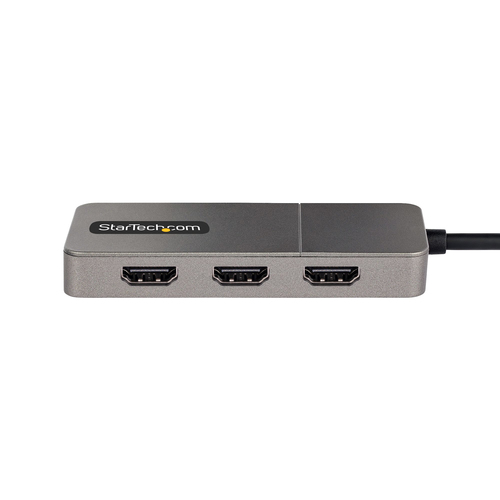

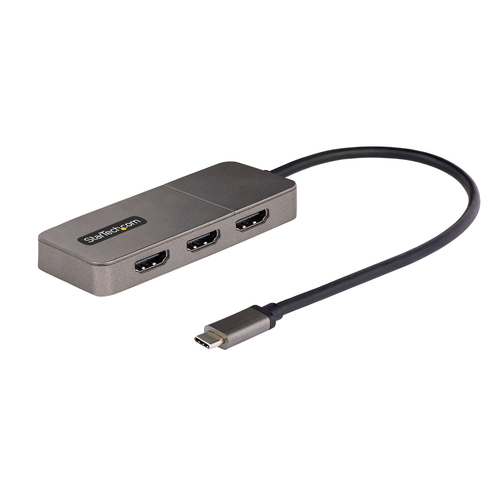

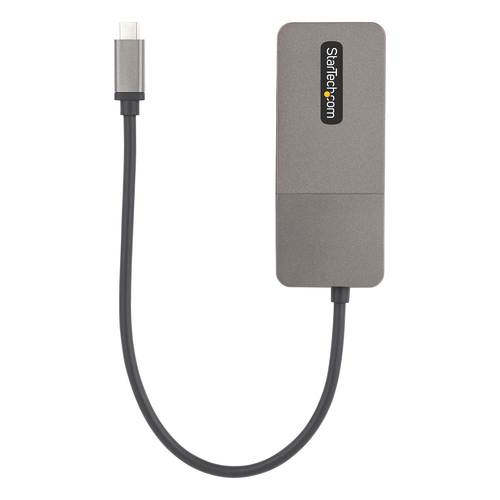

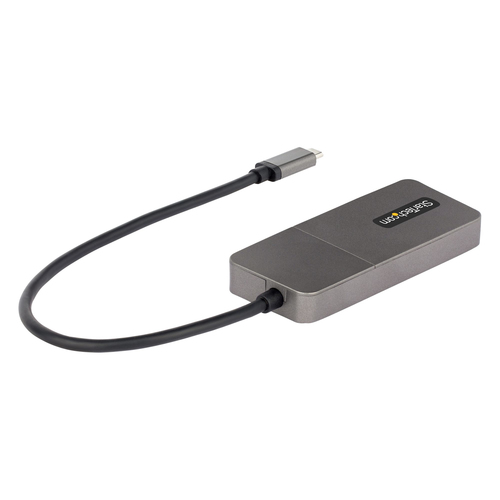

StarTech.com 3-Port USB-C MST Hub - USB Type-C to 3x HDMI Multi-Monitor Adapter for Laptop - Triple HDMI up to 4K 60Hz with DP 1.4 Alt Mode & DSC - HDR - 1ft (30cm) Cable - Windows Only
- Brand
- STARTECH
- Product code
- MST14CD123HD
- SKU
- UYPH1VHA38VWB

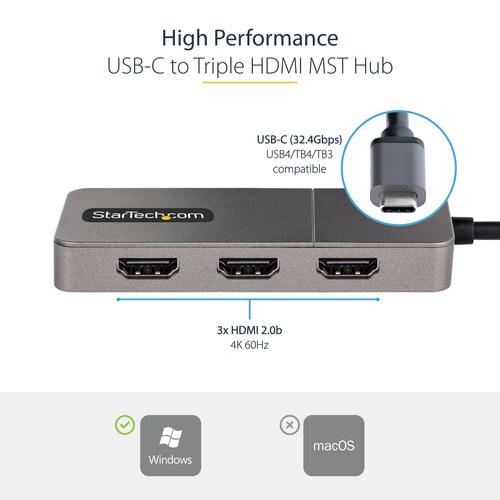

- MULTI-MONITOR CONFIGURATION: USB Type-C to Triple-HDMI MST Hub/Splitter drives up to three 4K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Triple 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU

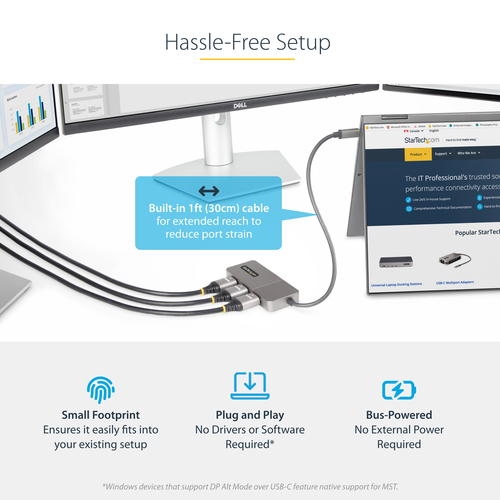

- EXTRA-LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 USB C devices like Surface Pro 7/8, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Triple HDMI Adapter
Product Info

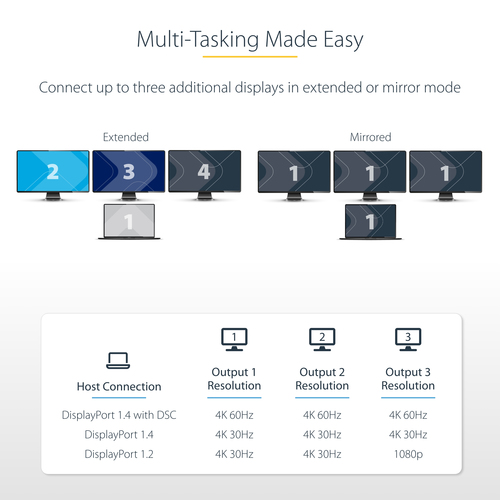

Create a high-performance triple-display workstation by connecting a USB Type-C™ device to three independent HDMI® monitorsThis USB-C to HDMI MST Hub enables a connection to three HDMI monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.Multi-Tasking Made EasyConfigure up to three displays in extended or mirrored mode, using this USB-C to HDMI triple-video adapter. Connecting three independent 4K 60Hz displays creates high-performance extended-display workstations. This encourages increased multi-tasking across your organization, resulting in increased productivity.Host ConnectionMax ResolutionOutput 1Max ResolutionOutput 2Max ResolutionOutput 3Example HostProcessor/GraphicsDisplayPort 1.4 with DSC4K 60Hz4K 60Hz4K 60Hz*Some Intel 11th GenIntel 12th Gen Processors & LaterDiscrete AMD & Nvidia GPU's that support DSCDisplayPort 1.44K 30Hz4K 30Hz4K 30HzIntel 10th Gen (Ice Lake Only)Intel 11th Gen Processors & LaterDiscrete AMD and Nvidia GPU's that support DP 1.4DisplayPort 1.24K 30Hz4K 30Hz1080pIntel 8th - 10th Gen Processors & Later*Please verify the GPU capabilities and DSC for MST driver support with the OEM of the host device4K at 60Hz and HDRMulti-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into three independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.Hassle-Free SetupWindows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
| Performance | |
|---|---|

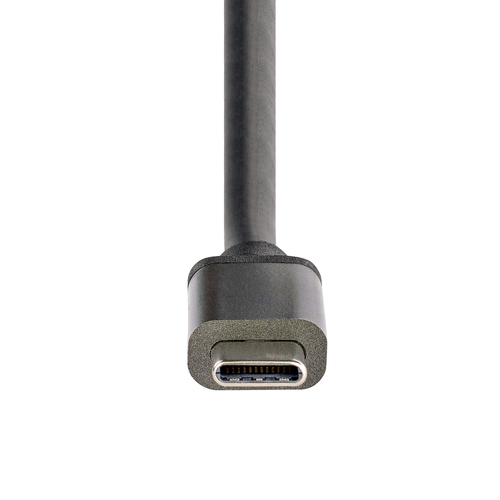

| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |

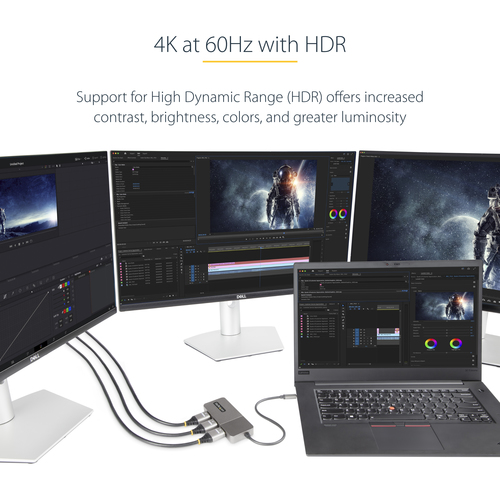

| High Dynamic Range (HDR) supported | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 3 |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | Synaptics VMM5310 |
| Design | |
| Product colour | Grey |
| Housing material | Plastic |
| USB cable length | 0.3 m |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |

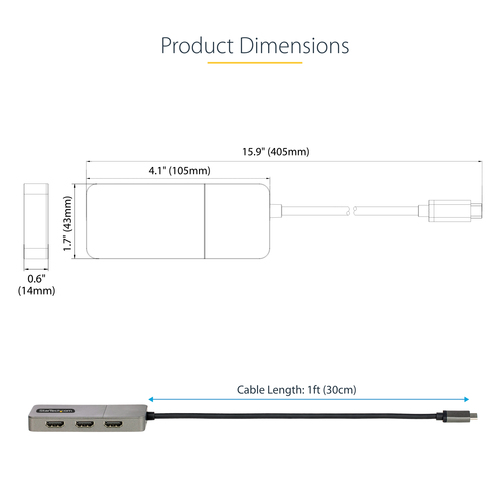

| Weight & dimensions | |
| Width | 43 mm |
| Depth | 105 mm |
| Height | 14 mm |
| Weight | 72 g |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 124 g |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
