StarTech.com HDMIPNLFM3 HDMI cable
StarTech.com 3ft HDMI Female to Male Adapter, 4K High Speed Panel Mount HDMI Cable, 4K 30Hz UHD HDMI, 10.2 Gbps Bandwdith, 4K HDMI Female to HDMI Male, HDMI Panel Mount Connector Cable
- Brand
- STARTECH
- Product code
- HDMIPNLFM3
- SKU
- FGFODNLCTSL7W
- EAN/GTIN
- 0065030837033
- HIGH SPEED PANEL MOUNT CABLE: 3 ft (91 cm) HDMI 1.4b cable supports 4K (3840x2160p, 24, 25, 30Hz / 4096x2160p, 24Hz), Full HD (1920x1080p, 120Hz), 10.2 Gbps bandwidth, wide aspect ratio, 8Ch Audio (5.1/7.1/DD+/Dolby TrueHD), 3D Video
- DURABLE: HDMI Ultra HD cable with durable PVC jacket for high strength and reliability; Molded female connector with two 4-40 (0.31"/8mm long) screws to secure on to a machine faceplate/port; Ideal for Commercial environments
- QUALITY CONSTRUCTION: 28AWG wire, corrosion resistant gold-plated connectors, and superior EMI shielding with Al-Mylar foil and copper braid improve signal integrity and reliability, providing higher quality video and audio
- APPLICATIONS: Allows easy access to HDMI ports on your computer/laptop/desktop/workstation; Connect TV/monitor/display/projector; Ideal for use in retail kiosk/booth/lecture podium/embedded applications; Samsung/Sony/Apple TV/Dell/LG
- SPECS: 3 ft (91 cm) / Black / HDMI 1.4 / HDMI Male to Female (panel mountable with two 4-40 screws) / 28 AWG / PVC Jacket / Shield: Al-Mylar foil with Braid / ARC, Deep Color, HDCP 1.4, CEC, YCC601 Color / Supports HDMI 1.4 and earlier
€20.28
(Inc. VAT)
(Delivery 2-4 working days)
Product Info

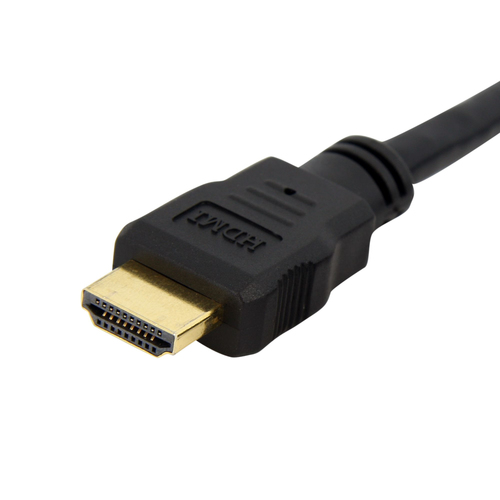

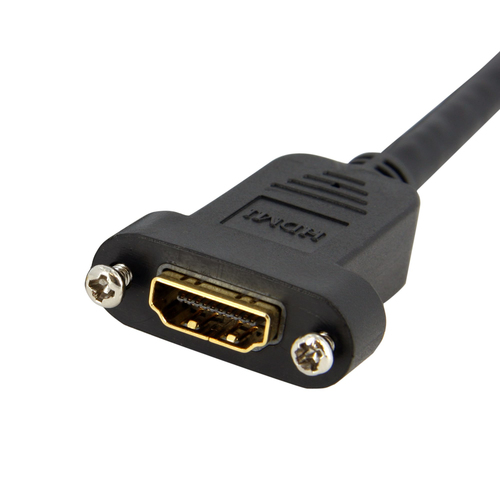

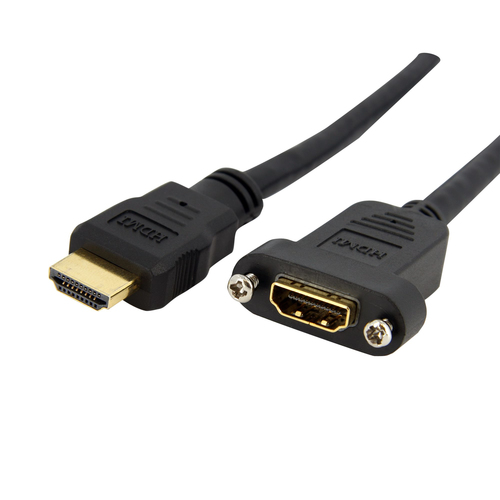

Allows an HDMI® connection to be mounted on a secure and easily accessible panel.The HDMIPNLFM3 3ft High Speed HDMI® Cable for Panel Mount features an HDMI male connector on one end, and an HDMI panel mount (female) molded connector on the other, providing a well-secured, easy to access HDMI connection on any machine port or faceplate.Backed by StarTech.com's Lifetime Warranty.The StarTech.com Advantage
| Features | |
|---|---|
| Cable length | 0.9 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 1.4 |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Dolby technologies | Dolby Digital Plus, Dolby TrueHD |
| Audio Return Channel (ARC) | Yes |
| HDCP | Yes |
| HDCP version | 1.4 |
| Data transfer rate | 10.2 Gbit/s |
| Maximum refresh rate | 120 Hz |
| AWG wire size | 28 |
| Connector contacts plating | Gold |
| Cable rating | CMG (CM) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Cable diameter | 6.5 mm |
| Weight | 79 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 1 mm |
| Package weight | 84 g |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 140 pc(s) |
