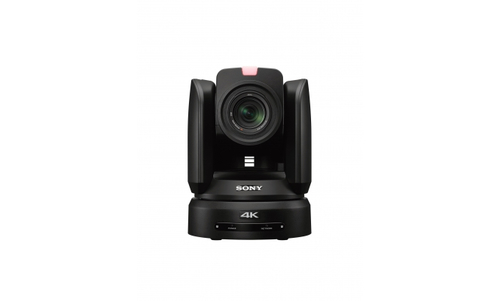

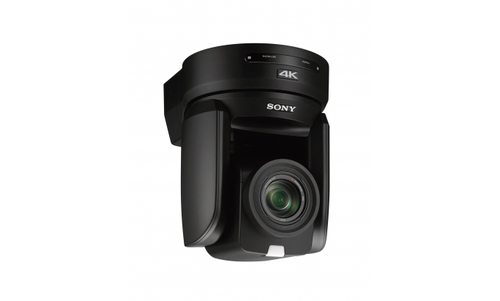

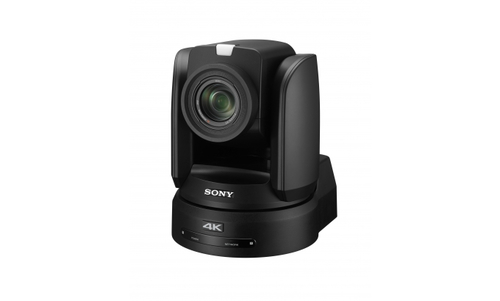

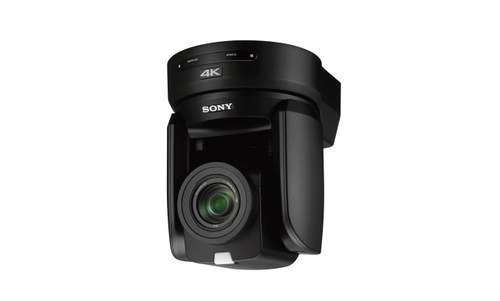

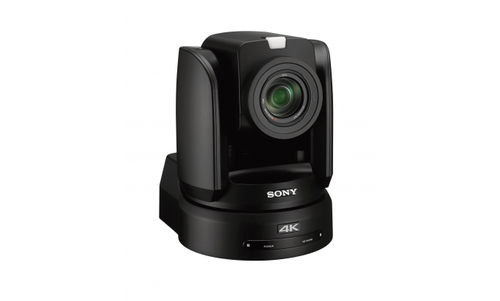

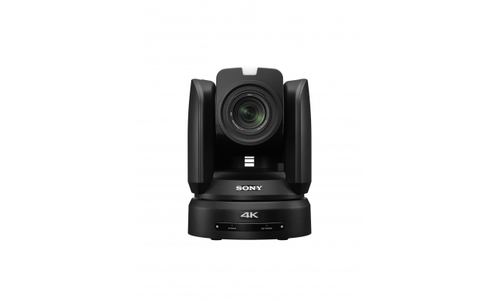

Sony BRC-X1000 security camera

Sony BRC-X1000 security camera Dome IP security camera Indoor Ceiling


Brand
Sony
Product code
BRC-X1000
SKU
SR648FLJBFY63
  • Indoor IP security camera
  • CMOS 1 14.2 MP
  • Wired Ethernet LAN
  • Optical zoom: 12x
  • Dome Ceiling
  • Black
  • 4.3 kg
€8184.31 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Remotely capture broadcast quality 4K images with smooth, silent PTZ and excellent low-light sensitivity

The BRC-X1000 is Sony's first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1-inch type Exmor R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.

There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

Performance
Type IP security camera
Placement supported Indoor
Connectivity technology Wired
PTZ control Yes
Day/night mode Yes
Antenna gain level (max) 33 dBi
Light exposure modes Auto, Manual, Shutter priority AE
Design
Form factor Dome
Mounting type Ceiling
Product colour Black
Camera
Minimum illumination 1.7 lx
Lens viewing angle, horizontal 64.6°
Tilt angle range -30 - 90°
Tilt speed 60 °/sec
Pan range -170 - 170°
Pan speed 60 °/sec
White balance Auto, Indoor, Manual, Outdoor
Camera shutter speed 1/10000s - 1/8 (59.94/29.97), 1/10000s - 1/6 (50/25)
Image sensor
Optical sensor size 1
Sensor type CMOS
Lens system
Zoom capability Yes
Optical zoom 12x
Focal length range 9.3 - 111.6 mm
Auto focus Yes
Maximum aperture number 4.5
Video
Total megapixels 14.2 MP
Supported video modes 720p, 1080i, 1080p, 2160p
Frame rate 60 fps
Automatic gain control Yes
Full HD Yes
Network
Ethernet LAN Yes
Networking standards IEEE 802.3at
Wi-Fi No
Storage
Built-in HDD No

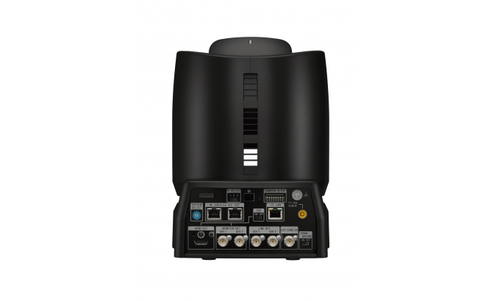

Ports & interfaces
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
DC-in jack Yes
Interface RS-422
Power
Power source type PoE
DC output current 13.2 A
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 198 mm
Depth 238 mm
Height 260 mm
Weight 4.3 kg
Packaging content
Number of cameras 1
Logistics data
Harmonized System (HS) code 85258900
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
