APC SRTL8KRM4UI uninterruptible power supply (UPS)

SRTL8KRM4UI - 731304578499

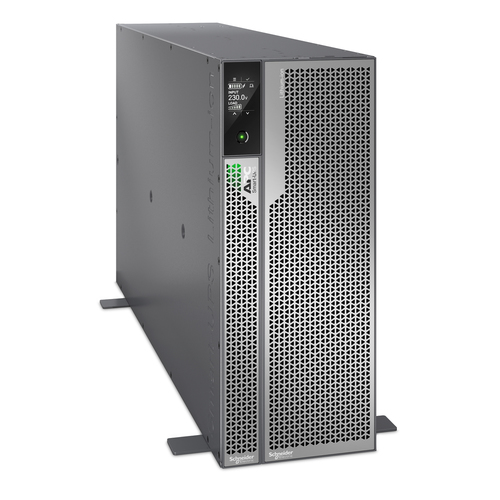

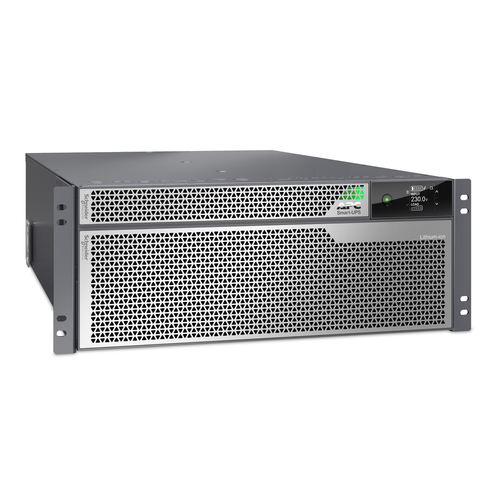

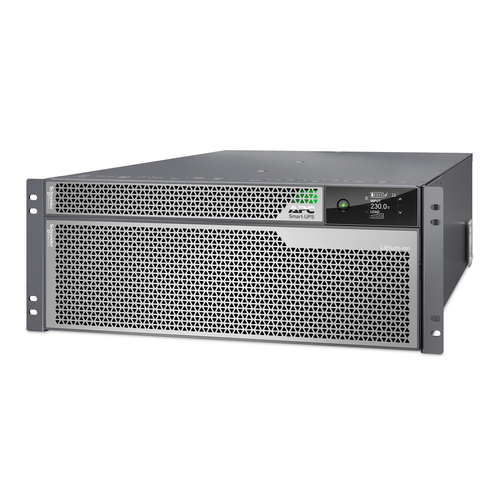

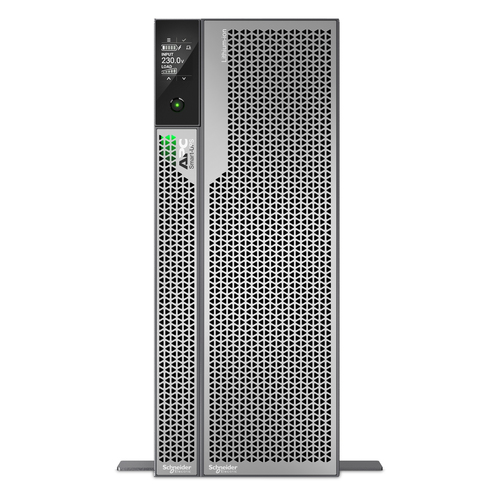

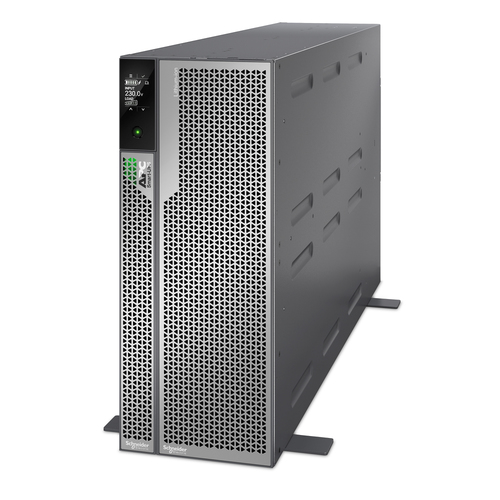

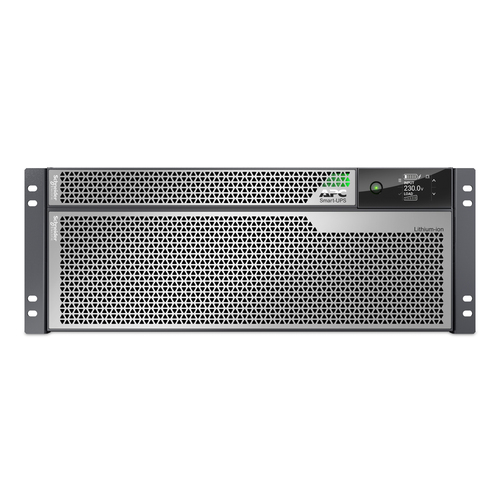

APC Smart-UPS Ultra On-Line Li-Ion SRTL8KRM4UI, 8KW, 4U Rack/Tower, 6xC13 & 6xC19, NMC

Brand: APC HW
Product code: SRTL8KRM4UI
SKU: ZJHBT90YRKFL4
EAN/GTIN: 731304578499

Double-conversion (Online)
8 kVA 8000 W
Waveform: Sine
12 AC outlet(s)
Lithium-Ion (Li-Ion) 180 V
Rackmount/Tower Grey

€12822.04 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

APC Smart-UPS Ultra On-Line Li-Ion SRTL8KRM4UI, 8KW, 4U Rack/Tower, 6xC13 & 6xC19, NMC

APC Smart-UPS Ultra On-Line Li-Ion SRTL8KRM4UI, 8KW, 4U Rack/Tower, 6xC13 & 6xC19, NMC. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: Hard Wire 3-wire (1P + N + E), C13 coupler, C19 coupler, Hardwire, Power plug: Hardwire, AC outlets quantity: 12 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 180 V, Typical backup time at full load: 7 min. Form factor: Rackmount/Tower, Product colour: Grey, Rack capacity: 4U. Compliance certificates: CE, REACH, RoHS, UKCA, VDE, Certification: EN/IEC 62040-1 IEC 62040-2

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 8 kVA

Output power 8000 W

Waveform Sine

Input operation voltage (min) 220 V

Input operation voltage (max) 240 V

Input frequency 40/70 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Output frequency 50/60 Hz

Surge energy rating 1410 J

Heat dissipation 1900 BTU/h

Crest factor 3:1

Emergency Power Off (EPO) Yes

Output voltage Total Harmonic Distortion (THD) 5%

Noise level 55 dB

Audible alarm(s) Yes

Audible alarm modes Alarm when on battery, Low battery alarm

Ports & interfaces

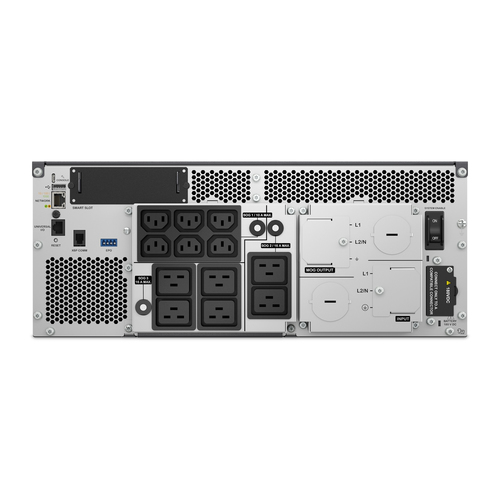

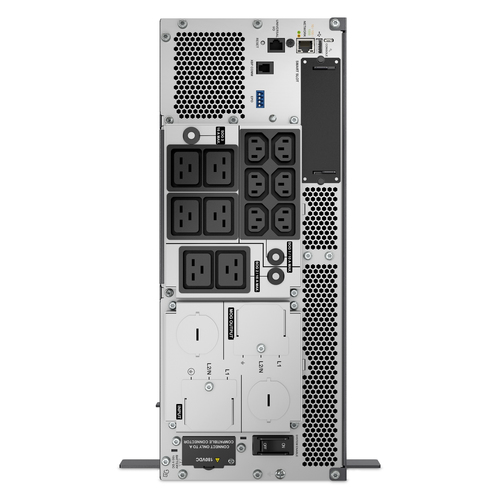

AC outlet types Hard Wire 3-wire (1P + N + E), C13 coupler, C19 coupler, Hardwire

Power plug Hardwire

AC outlets quantity 12 AC outlet(s)

USB port Yes

SmartSlot Yes

Battery

Battery technology Lithium-Ion (Li-Ion)

Battery voltage 180 V

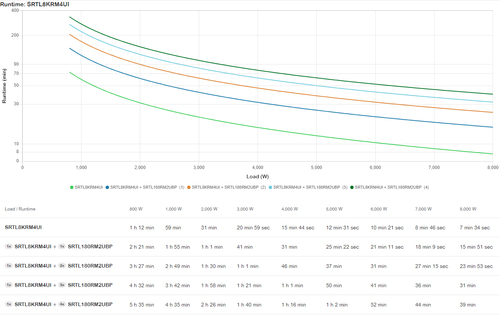

Typical backup time at full load 7 min

Typical backup time at half load 15 min

Battery life (max) 10 year(s)

Battery recharge time 1.5 h

Design

Form factor Rackmount/Tower

Rack capacity 4U

Product colour Grey

Display type LCD

LED indicators Yes

International Protection (IP) code IP20

Certification EN/IEC 62040-1 IEC 62040-2

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15240 m

Technical details

Sustainability compliance Yes

Sustainability certificates CE, Green Premium, REACH, RoHS, UKCA, VDE

Weight & dimensions

Width 432 mm

Depth 832 mm

Height 175 mm

Weight 55 kg

Package width 650 mm

Package depth 1000 mm

Package height 630 mm

Package weight 88.5 kg

Packaging data

Cables included USB cable
