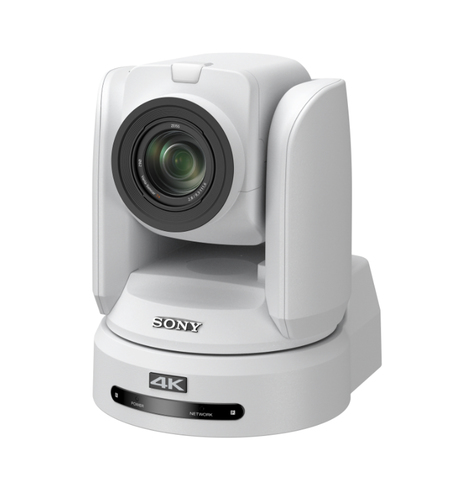

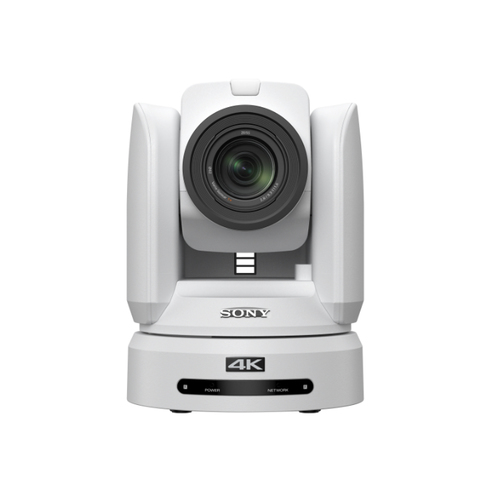

Sony BRC-X1000

Sony BRC-X1000 Dome IP security camera Indoor


Brand
Sony
Product code
BRC-X1000W/AC
SKU
ORHF56PJPROKR
  • Indoor IP security camera
  • CMOS 25.4 / 0 mm (1 / 0") 20.4 MP
  • Wired Ethernet LAN
  • Optical zoom: 12x
  • Dome
  • White
  • 4.3 kg
€8235.39 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Remotely capture broadcast quality 4K images with smooth, silent PTZ and excellent low-light sensitivity

The BRC-X1000 is Sony's first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.

Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.

The 1-inch type Exmor R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.

Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.

There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.

Performance
Type IP security camera
Placement supported Indoor
Connectivity technology Wired
PTZ control Yes
Day/night mode Yes
Antenna gain level (max) 33 dBi
Light exposure modes Auto, Manual, Shutter priority AE
Design
Form factor Dome
Product colour White
Camera
Minimum illumination 1.7 lx
Lens viewing angle, horizontal 64.6°
Tilt angle range -30 - 90°
Tilt speed 60 °/sec
Pan range -170 - 170°
Pan speed 60 °/sec
White balance Auto, Indoor, Manual, Outdoor
Camera shutter speed 1/10000s - 1/8 (59.94/29.97); 1/10000s - 1/6 (50/25/23.98)
Image sensor
Number of sensors 1
Optical sensor size 25.4 / 0 mm (1 / 0")
Sensor type CMOS
Lens system
Zoom capability Yes
Optical zoom 12x
Number of lenses 1
Focal length range 9.3 - 111.6 mm
Auto focus Yes
Maximum aperture number 4.5
Minimum aperture number 2.8
Video
Total megapixels 20.4 MP
Supported video modes 720p, 1080i, 1080p, 2160p
Gain control type Auto/Manual
Number of TV lines 1800
Network
Ethernet LAN Yes
Wi-Fi No
Bluetooth No
Storage
Built-in HDD No
Ports & interfaces
DC-in jack Yes
Interface RJ-45
Power
Power source type DC, PoE
Power consumption (max) 21.5 W
Power consumption (Power over Ethernet (PoE)) 25.5 W
DC output voltage 12
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Weight & dimensions
Width 198 mm
Depth 238 mm
Weight 4.3 kg
Packaging content
Number of cameras 1
AC adapter included Yes
Logistics data
Harmonized System (HS) code 85258900
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
