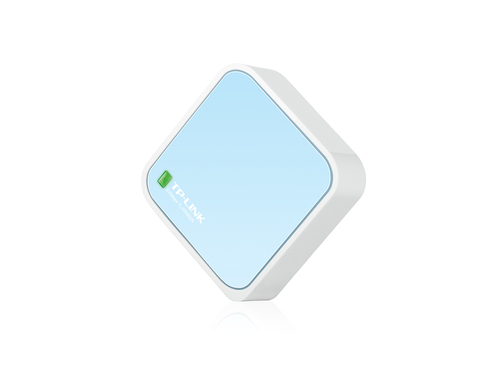

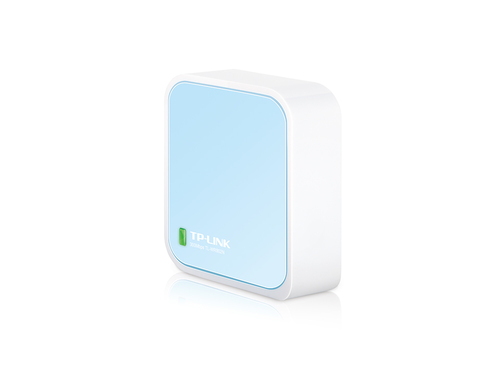

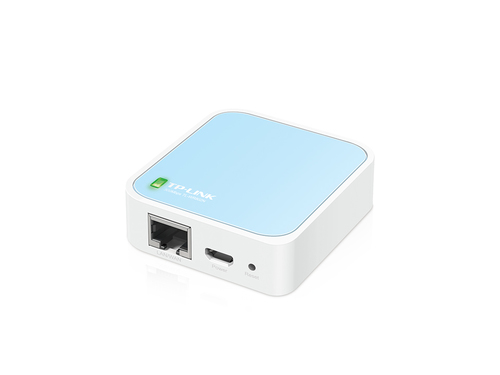

TP-Link 300Mbps Wireless N Travel WiFi Router
- Brand
- TP-Link
- Product code
- TL-WR802N
- SKU
- FJJCYWT1U5BM6
- EAN/GTIN
- 6935364071721
- Tabletop router Blue, White
- Single-band (2.4 GHz) Wi-Fi 4 (802.11n) 300 Mbit/s
- Fast Ethernet
- Ethernet WAN
- Ethernet LAN (RJ-45) ports: 1
- USB port
- Web-based management
Product Info
- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
- Pocket-size – Ideal for home and travel use
- Supports Router, Repeater, Client, AP and WISP operation modes
- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
- Easy installation in minutes
What is the TL-WR802N?
The TL-WR802N is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. The devices, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the Internet and share the connection around an average sized room at 300Mbps. The device’s tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.

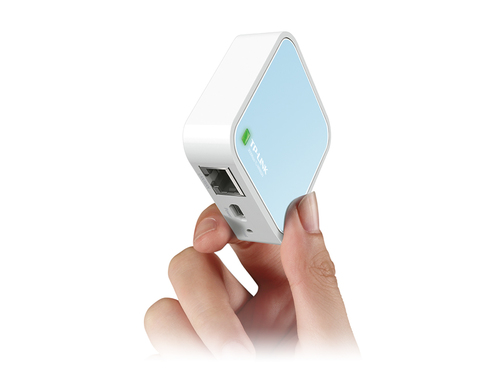

Portable and Compact – Ideal for Home and Travel Use
The TL-WR802N is the perfect travel companion for anyone who needs fast, easy Internet access on the go. Portable and compact design easily fits into a pocket or the palm of your hand. Simply plug a hotel room’s ethernet cable into the port provided and enter a default password to instantly create a wireless hotspot in the room.
Flexible Power Supply – Easy to Take on the Road
TL-WR802N can be powered by an external power adapter or via a USB connection to a computer. When traveling, users can plug the TL-WR802N into computer’s USB port and share Wi-Fi connection with family and friends.
Multiple Operation Modes
TL-WR802N supports Router (default), Repeater, Client, AP and WISP modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec |
| Mobile network | |
| 3G | No |
| 4G | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Security | |
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | Blue, White |
| LED indicators | Yes |
| On/off switch | Yes |
| Product type | Tabletop router |
| Packaging content | |
| Manual | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | Internal |
| Receive power | 270M: -65dBm@10% PER , 130M: -70dBm@10% PER , 108M: -82dBm@10% PER , 54M: -73dBm@10% PER , 11M: -82dBm@8% PER , 6M: -86dBm@10% PER , 1M: -90dBm@8% PER |
| Transmit power | CE: , <20dBm(2.4GHz) , FCC: , <30dBm |
| Features | |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source type | DC |
| Output voltage | 5 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 57 mm |
| Height | 18 mm |
| Packaging data | |
| Package width | 110 mm |
| Package depth | 109 mm |
| Package height | 73.5 mm |
| Package weight | 240 g |
| Other features | |
| Mobile network connection | No |
| WLAN data transfer rates supported | 11,54,300 Mbit/s |
| Frequency range | 2.4 - 2.4835 GHz |
| USB ports quantity | 1 |
| Supported WAN type | IP, Static IP, PPPoE, PPTP, L2TP |
| Frequency band | 2.4 GHz |
| Rack mounting | No |
| xDSL connection | No |
