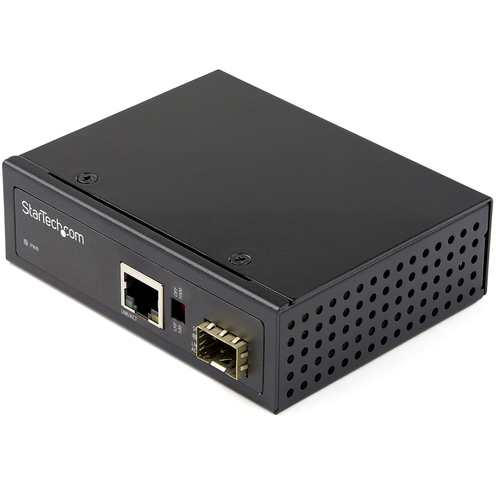

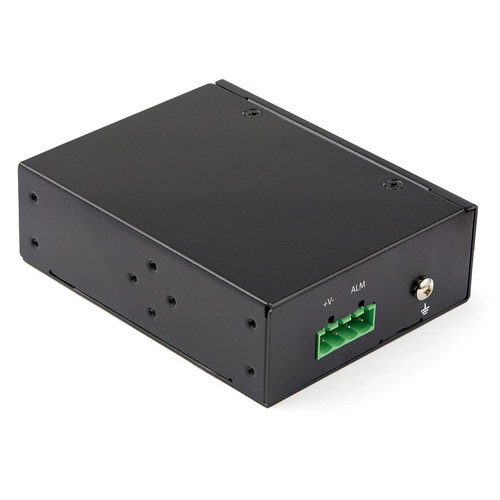

StarTech.com Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C
- Brand
- STARTECH
- Product code
- IMC1GSFP
- SKU
- R87S8ATNWEEBP
- EAN/GTIN
- 0065030889612
- INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

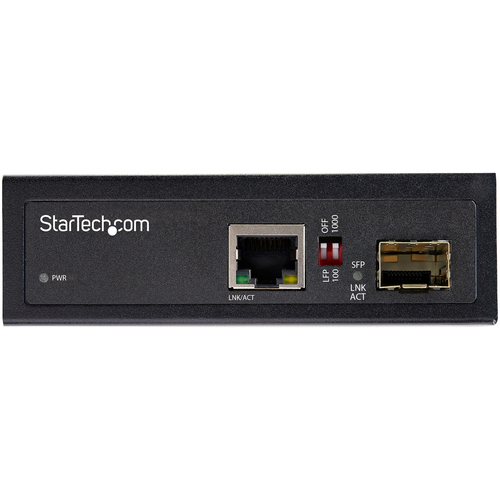

- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
- ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C / Vibration, shock & free fall rated / Rugged IP-30 aluminum housing
- TECH SPECS: 10/100/1000 Mbps / 12V-56VDC / Single Mode SMF & Multi-Mode MMF Fiber / 16K Jumbo Frames / LFP / IP-30 Housing / DIN or Wall Mountable / Terminal Block and/or Barrel Adapter for power redundancy
Product Info

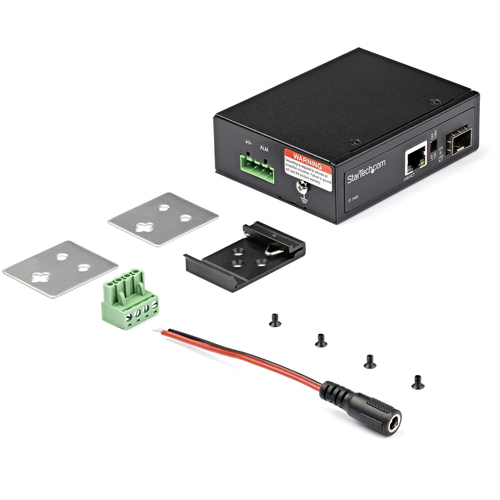

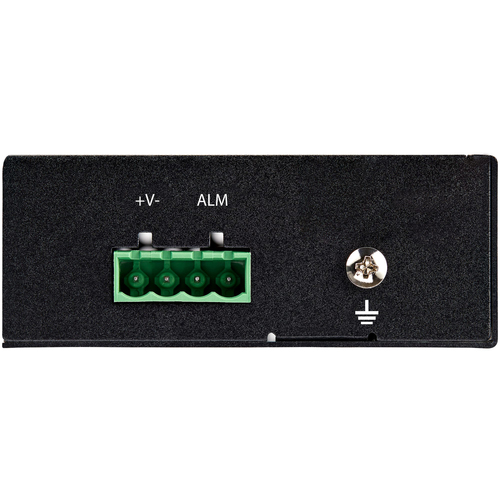

Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50°C | 12V-56VDC | Works with 100 Mbps SFPsAn industrial media converter that converts fiber to copper at a network endpoint.A Flexible Solution Covering Different RequirementsThis media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.For Mission-Critical ApplicationsDesigned with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:• Vibration: EN 60068-2-6• Shock: EN 60068-2-27• Free-Fall: EN 60068-2-32The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3x |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Cable types supported | Cat6 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Performance | |
| Fiber mode structure | Multi-mode, Single-mode |
| Mean time between failures (MTBF) | 569265 h |
| Design | |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Power | |
| Input voltage | 12 - 56 V |
| Power over Ethernet (PoE) | No |
| Power plug type | Type N |
| Weight & dimensions | |
| Width | 81.5 mm |
| Depth | 104 mm |
| Height | 32 mm |
| Weight | 144 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 211 mm |
| Package depth | 162 mm |
| Package height | 64 mm |
| Package weight | 386 g |
| Packaging content | |
| User guide | Yes |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 225 mm |
| Products per master (outer) case | 10 pc(s) |
