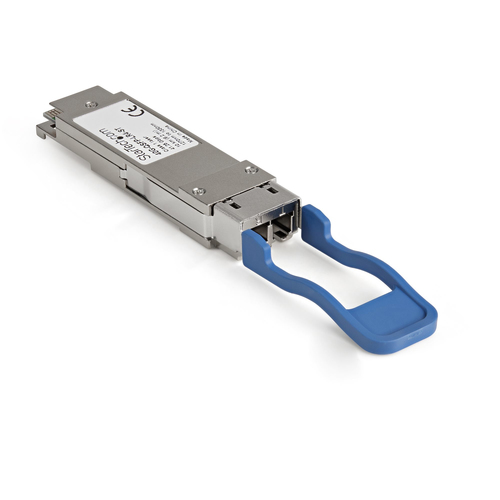

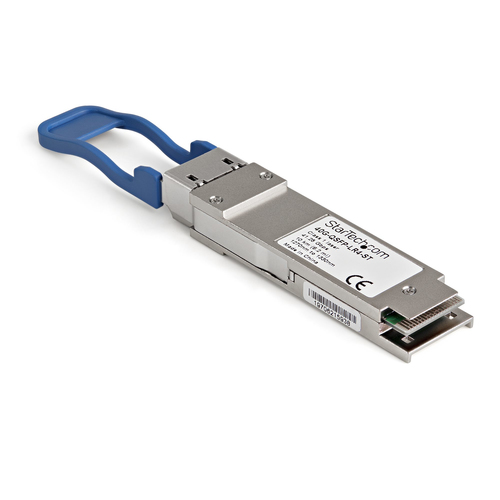

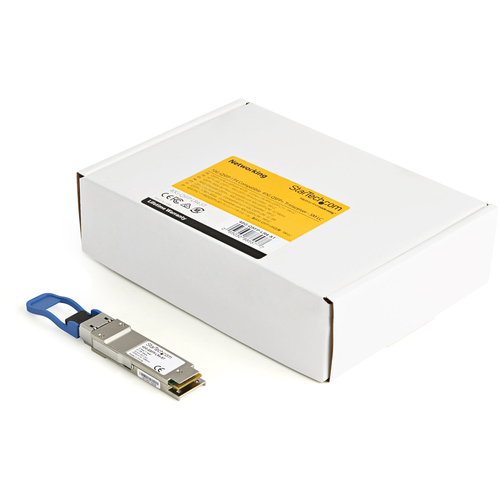

StarTech.com Brocade 40G-QSFP-LR4 Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM
- Brand
- STARTECH
- Product code
- 40G-QSFP-LR4-ST
- SKU
- A198OBTSKHYFF
- EAN/GTIN
- 0065030885577
- 100% BROCADE 40G-QSFP-LR4 COMPATIBLE QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Brocade switches and routers to deliver reliable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-LR4 / 40Gbps / Single Mode (SMF) / LC Connector / 1270nm to 1330nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Brocade routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Product Info
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe 40G-QSFP-LR4-ST is a Brocade 40G-QSFP-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:• Wavelength: 1270nm to 1330nm• Maximum Data Transfer Rate: 40 Gbps• Type: Single Mode• Connection Type: MPO Connector• Maximum Transfer Distance: 10 km (6.2 mi)• MTBF: 95,832,027 hours• Power Consumption:• Digital Diagnostics Monitoring (DDM): YesThis QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | MPO |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1330 nm |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 95832027 h |
| Brand compatibility | Brocade |
| Compatible products | 40G-QSFP-LR4 |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.3 W |
| Weight & dimensions | |
| Width | 122 mm |
| Depth | 18.3 mm |
| Height | 8.5 mm |
| Weight | 49 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
