TP-Link Omada SG2016P network switch

SG2016P - 4897098689349

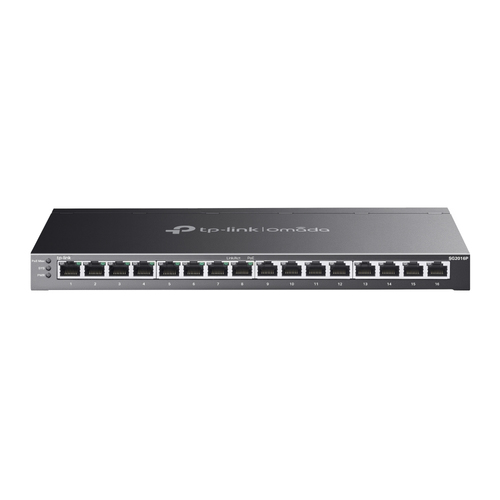

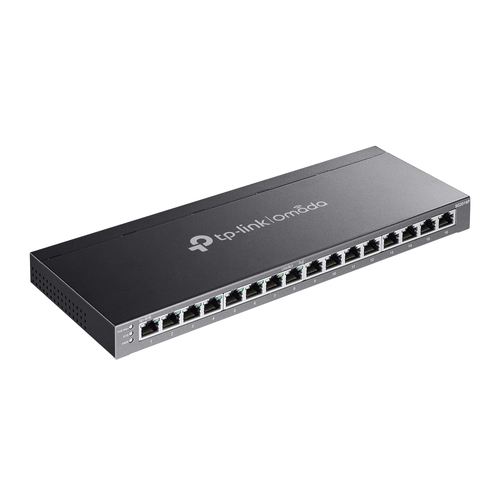

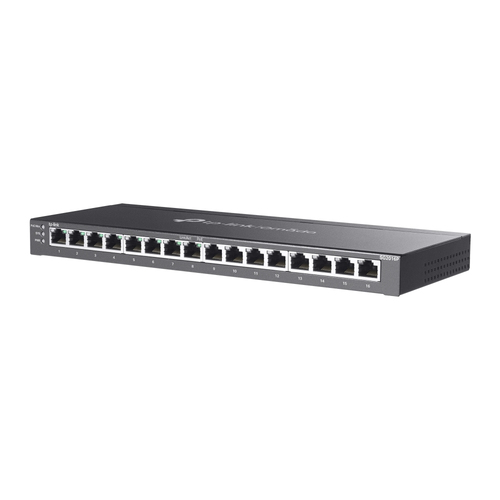

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+

Brand: TP-Link
Product Family: Omada
Product code: SG2016P
SKU: LFY3FLLRNK1FI
EAN/GTIN: 4897098689349

16× Gigabit ports (8× 802.3at/af-compliant PoE+ ports)
120 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation

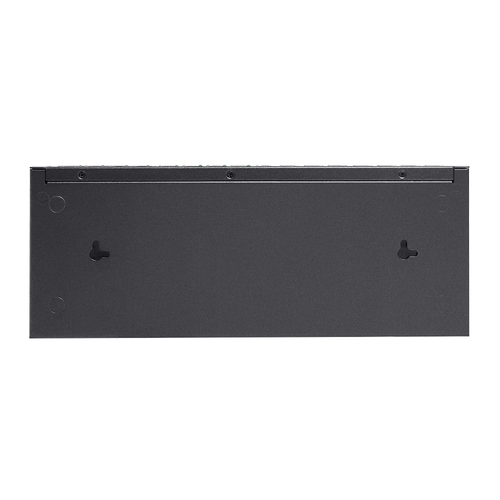

Durable metal casing and desktop/wall mounting design

€199.31 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

16× 10/100/1000 Mbps RJ45 PoE+, 32 Gbps, 8K MAC, 9 KB Jumbo, 286×111.7×25.4 mm

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features

Switch type Managed

Switch layer L2/L2+

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

System event log Yes

MIB support RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Power connector DC-in jack

Network

Networking standards IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x

10G support No

Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Auto MDI/MDI-X Yes

Spanning tree protocol Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

Auto-negotiation Yes

VLAN support Yes

Virtual LAN features Multicast VLAN, Tagged VLAN, Voice VLAN

Number of VLANs 4000

Data transmission

Switching capacity 32 Gbit/s

Forwarding rate 23.81 Mpps

MAC address table 8000 entries

Number of queues 8

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 4.1 MB

Security

DHCP features DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Access Control List (ACL) Yes

IGMP snooping Yes

Security algorithms EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS

MAC address filtering Yes

SSH/SSL support Yes

BPDU filtering/protection Yes

IP-MAC-Port binding Yes

Authentication Guest VLAN, MAC-based authentication, Port-based authentication

Queue scheduling algorithms SP, Weighted Round Robin (WRR)

MAC address entries Dynamic MAC address entries, Static MAC address entries

Multicast features

Multicast support Yes

Multicast Listener Discovery (MLD) snooping MLD v1, MLD v2

Protocols

Supported network protocols ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2

GARP VLAN Registration Protocol (GVRP) Yes

IPv4 & IPv6 features Dual stack IPv4/IPv6

Design

Rack mounting Yes

Product colour Black

LED indicators PoE, Power, System

Certification CE, FCC, RoHS

Performance

Firmware upgradeable Yes

Fanless Yes

Power

Power source DC/PoE

DC input voltage 53.5 V

Power consumption (max) 146.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 8

Total Power over Ethernet (PoE) budget 120 W

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 499.98 BTU/h

Weight & dimensions

Width 286 mm

Depth 111.7 mm

Height 25.4 mm

Packaging data

Cables included AC

Manual Yes
