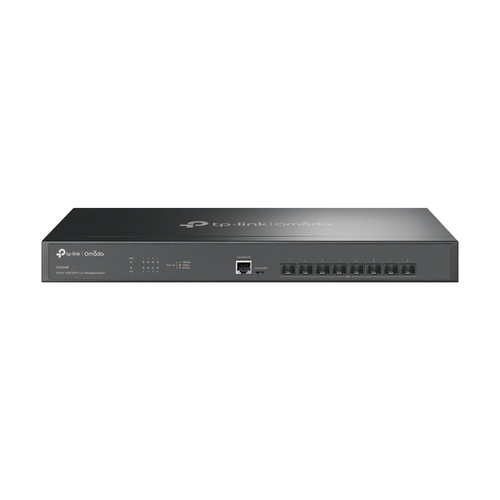

TP-Link Omada SX3008F network switch

SX3008F - 6935364006464

TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch

Brand: TP-Link
Product Family: Omada
Product code: SX3008F
SKU: SYO0YEYRGFWT9
EAN/GTIN: 6935364006464

8× 10 Gbps SFP+ slots enable high-bandwidth connectivity
160 Gbps Switching Capacity
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Fanless design for silent operation
Durable metal casing and rack-mountable design

€274.25 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

8× 10GE SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console, 160 Gbps, 32 K MAC, 9 KB Jumbo, 440×180×44 mm

TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/micro-USB. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power connector: DC-in jack. Rack mounting

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features

Switch type Managed

Switch layer L2/L3

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

Traffic classification Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

System event log Yes

MIB support RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Ports & interfaces

Basic switching RJ-45 Ethernet ports type No

SFP+ module slots quantity 8

Console port RJ-45/Micro-USB

Power connector DC-in jack

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x

10G support Yes

Port mirroring Yes

IP routing Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

Head-of-line (HOL) blocking Yes

VLAN support Yes

Virtual LAN features Private VLAN, Protocol-based VLAN, Voice VLAN

Number of VLANs 4000

Data transmission

Switching capacity 160 Gbit/s

Forwarding rate 119.04 Mpps

MAC address table 32000 entries

Number of queues 8

Static route Yes

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 16 MB

Security

DHCP features DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Access Control List (ACL) Yes

IGMP snooping Yes

Security algorithms HTTPS, SSH, SSH-2, SSL/TLS

MAC address filtering Yes

Static port security Yes

SSH/SSL support Yes

Loop protection Yes

BPDU filtering/protection Yes

IP-MAC-Port binding Yes

Authentication Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication

Authentication type AAA, TACACS+

Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support Yes

Multicast Listener Discovery (MLD) snooping Y

Protocols

Management protocols SNMPv1/v2c/v3, SNTP

IPv4 & IPv6 features IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Rack mounting Yes

Product colour Black

LED indicators Yes

Certification CE, FCC, RoHS

Power

Power source AC

Power supply included Yes

AC input voltage 220 V

AC input frequency 50/60 Hz

Power consumption (max) 15.46 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Operational conditions

Operating temperature (T-T) 0 - 45 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 52.75 BTU/h

Weight & dimensions

Width 440 mm

Depth 180 mm

Height 44 mm

Packaging data

Cables included AC

Quick start guide Yes

Manual Yes

Package type Box

Rack mount kit Yes
