TP-Link Omada TL-SG2428P

SG2428P - 6935364030667

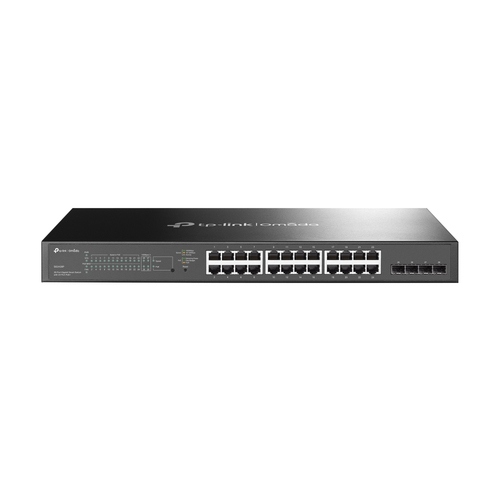

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

Brand: TP-Link
Product Family: Omada
Product code: SG2428P
SKU: 5AGJD3E3WX6Z5
EAN/GTIN: 6935364030667

24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
250 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Durable metal casing and rackmountable design

€298.14 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

24× 10/100/1000 Mbps PoE+ RJ45, 4× Gigabit SFP Slots, 56 Gbps, 8K MAC, 9 KB Jumbo, 440×220×44 mm

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features

Switch type Managed

Switch layer L2/L2+

Quality of Service (QoS) support Yes

Web-based management Yes

ARP inspection Yes

System event log Yes

MIB support Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity 24

SFP module slots quantity 4

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support No

Copper ethernet cabling technology 10BASE-T, 1000BASE-T

Cable types supported Cat3, Cat4, Cat5, Cat5e

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

VLAN support Yes

Virtual LAN features MAC address-based VLAN, Protocol-based VLAN, Voice VLAN

Number of VLANs 4000

Optical fiber

Fiber ethernet cabling technology 1000BASE-X

Data transmission

Switching capacity 56 Gbit/s

Forwarding rate 41.66 Mpps

MAC address table 8000 entries

Number of queues 8

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 4.1 MB

Security

DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client

Access Control List (ACL) Yes

IGMP snooping Yes

Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS

SSH/SSL support Yes

BPDU filtering/protection Yes

IP-MAC-Port binding Yes

Authentication type RADIUS

Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support Yes

Protocols

Management protocols SNMPv1/v2c/v3, SNTP

Design

Rack mounting Yes

Form factor 1U

Product colour Black

Number of fans 2 fan(s)

Certification CE, FCC, RoHS

Performance

Firmware upgradeable Yes

Power

Power source AC

Power supply included Yes

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 301.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 24

Power over Ethernet (PoE) power per port 30 W

Total Power over Ethernet (PoE) budget 250 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 1052.94 BTU/h

Weight & dimensions

Width 440 mm

Depth 220 mm

Height 44 mm

Packaging data

Cables included AC

User guide Yes

Rack mount kit Yes
