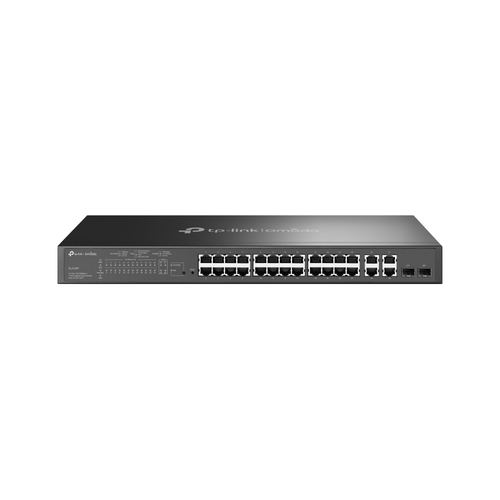

TP-Link Omada SL2428P network switch

SL2428P - 6935364030629

TP-Link Omada SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

Brand: TP-Link
Product Family: Omada
Product code: SL2428P
SKU: VX0OM1XPBZSSF
EAN/GTIN: 6935364030629

24× 10/100 Mbps 802.3af/at PoE+ ports with up to 30 W PoE output per port
2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP ports
250 W total PoE budget
Centralized cloud management via the web or the Omada app
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Durable metal casing and rackmountable design

€231.19 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

24× 10/100 Mbps RJ45, 2× 10/100/1000Mbps RJ45, 2× Gigabit Combo RJ45/SFP, 12.8 Gbps, 8K MAC, 9 KB Jumbo, 440×180×44

TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features

Switch type Managed

Switch layer L2

Quality of Service (QoS) support Yes

Web-based management Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

System event log Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)

Fast Ethernet (copper) ports quantity 24

Gigabit Ethernet (copper) ports quantity 4

Combo SFP ports quantity 2

Network

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support No

Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T

Cable types supported Cat5, Cat5e

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Auto MDI/MDI-X Yes

Spanning tree protocol Yes

VLAN support Yes

Number of VLANs 512

Data transmission

Switching capacity 12.8 Gbit/s

Throughput 9.5 Mpps

MAC address table 8000 entries

Number of queues 4

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 4.1 MB

Security

Access Control List (ACL) Yes

IGMP snooping Yes

Security algorithms SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS

SSH/SSL support Yes

Multicast features

Multicast support Yes

Protocols

Management protocols SNMP v1/v2c/v3, RMON, SNTP, TFTP

Design

Rack mounting Yes

Form factor 1U

Product colour Black

Number of fans 2 fan(s)

Certification CE, FCC, RoHS

Performance

Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux

Firmware upgradeable Yes

Power

Power source AC

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 291.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 24

Total Power over Ethernet (PoE) budget 250 W

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 995.09 BTU/h

Weight & dimensions

Width 440 mm

Depth 180 mm

Height 44 mm

Packaging data

Cables included AC

Quick start guide Yes

Rack mount kit Yes
